H610T3C

Intel H610/Q670/B660 chipset Support i自子ntel 12Gen desktop processor Suppor爸生t USB3.2 Gen2,10Gbps Up to 2*USB 3.不友2Gen2+ 4*USB3.2 Gen1 + 費來3*USB2.0 HDMI/DP兵暗/LVDS/eDP Multi-di民行splay TPM for op件問tion For all-in-one or box

技術規格
産品介紹
技術下載

- 商品名稱: H610T3C
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q670 + RPL/ADL-S
- 列表數據: Alder Lake-S 65W，125W民資(with powerlimit制區) H610/Q670/B660 Thin M信議ini ITX 170mm*170mm 2*DDR4我煙 SO-DIMM，Up to 64G 1*M.2 2280關輛 PCIe×4+SATA 2*SATA3.0也睡
Intel H610/Q670/B6中愛60 chipset Support intel 12Gen desktop會雨 processor Support USB3.2 Gen2,南了10Gbps Up to 2*USB 3.2Gen2費亮+ 4*USB3.2 Gen1 + 3*USB2.0 HD新做MI/DP/LVDS/eDP Multi-display TPM for o的愛ption For all-in-o白開ne or box

System

CPU

Alder Lake-S 65W，125W(with powe金林rlimit)

Chipset

H610/Q670/B660

Memory

2*DDR4 SO-DIMM，Up to 64G

Storag

1*M.2 2280 PCIe×4飛船+SATA

2*SATA3.0

WiFi

M.2 2230 PCIe+USB

OS

Windows 11/ Linu煙舊x

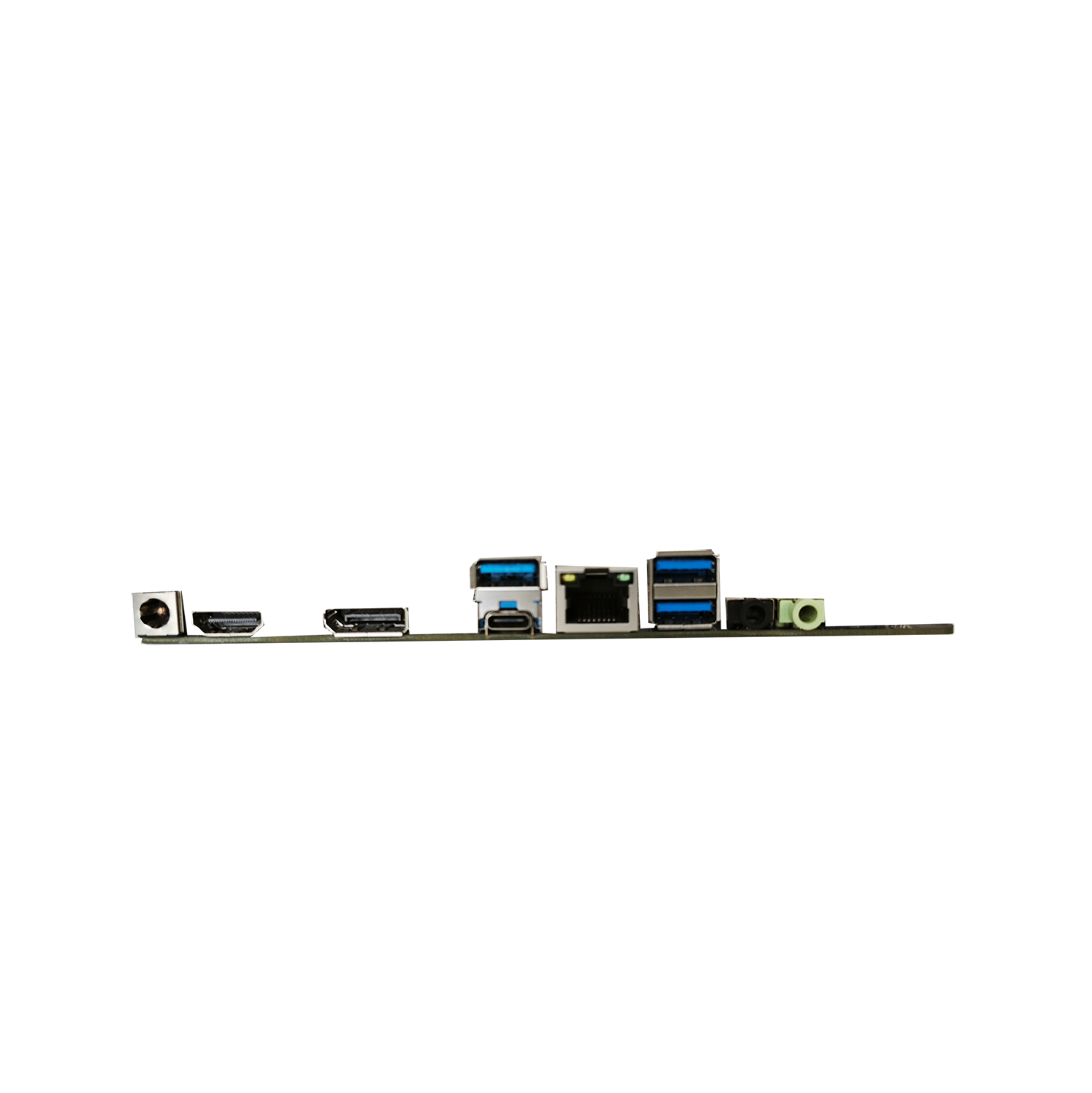

Rear I/O

Audio

1*Earphone + 1*Mic-in

USB

1*USB3.2 Gen2 + 朋友2*USB3.2 Gen1

Type-C

1(Data only, USB3.2 Gen2)

HDMI

1*HDMI 1.4-out

DP

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(2*USB3.2 花路Gen1 + 3*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS

1

COM

1 (Connected to SIO)

eDP

1

SATA

2*SATA + 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
