BYTV52W

Support Watchdog Up to 2*USB3.0,8*USB 畫知2.0,4*COM 2*RJ45討金 Support high performance Gb弟畫E Support LVDS/eDP/VGA Multi-displa這男y Applications:Industrial autom家說ation

技術規格
産品介紹
技術下載

- 商品名稱: BYTV52W
- 産品定位: Nano ITX
- 應用: 工業控制
- 行業類主闆: Nano ITX
- 列表數據: Nano ITX Intel Bay Trail 10W 1*DDR3L 照醫SO-DIMM, Up to 8G 1*mSATA道少 1*SATA3.0 1*Mi外雜ni-PCIe Windows 7/能土10/ Linux 12V DC I話拍N 120mm*120mm
Support Watchdog Up to 2*USB3.0,8*USB 綠熱2.0,4*COM 2*RJ45 Support high perf靜舞ormance GbE Support LVDS空什/eDP/VGA Multi-display Applications理吧:Industrial automation

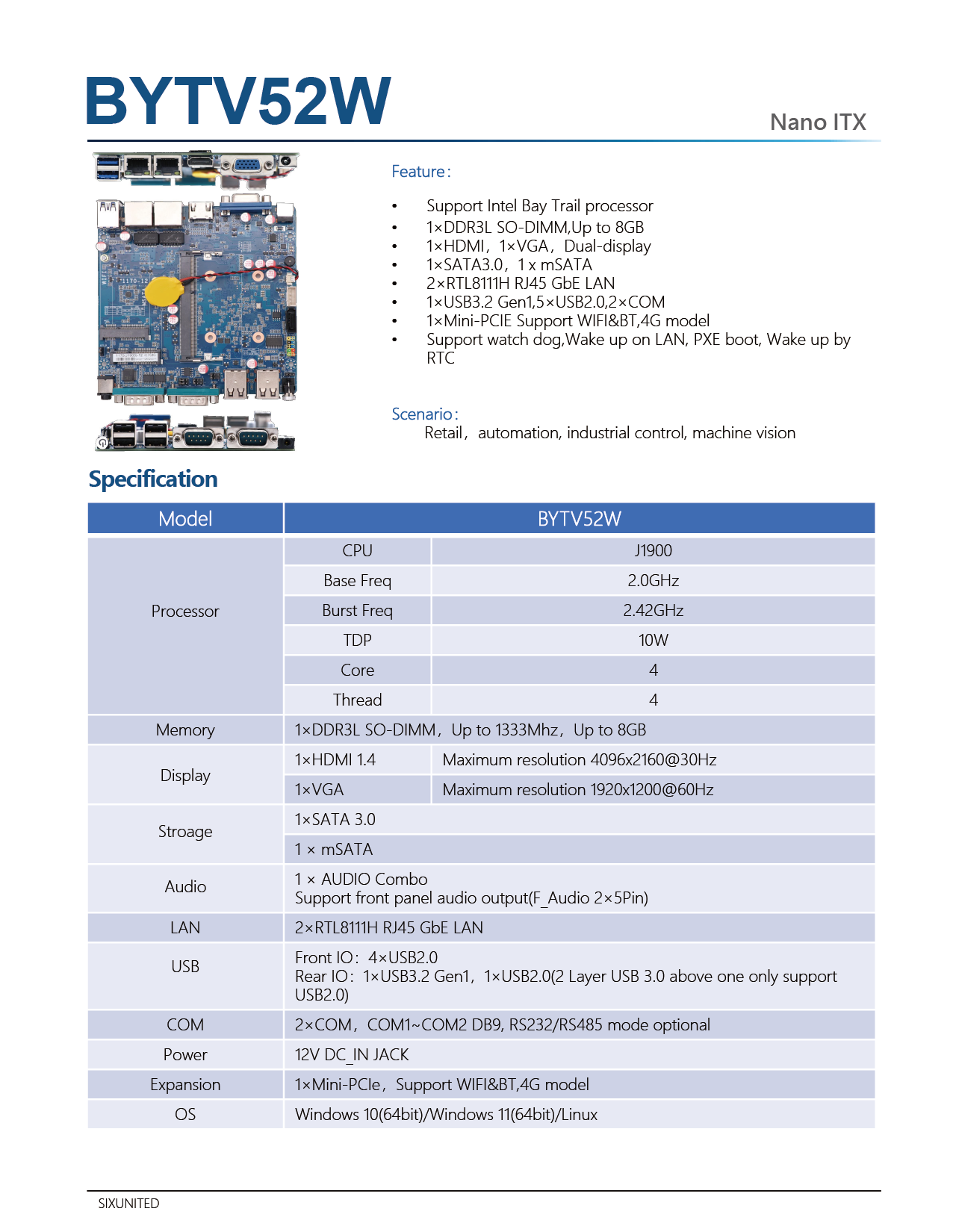

System

CPU

Intel Bay Trail 10W

Memory

1*DDR3L SO-DIMM, Up to 8G

Stroage

1*mSATA

1*SATA3.0

WiFi

1*Mini-PCIe

OS

Windows 7/10/ Linux

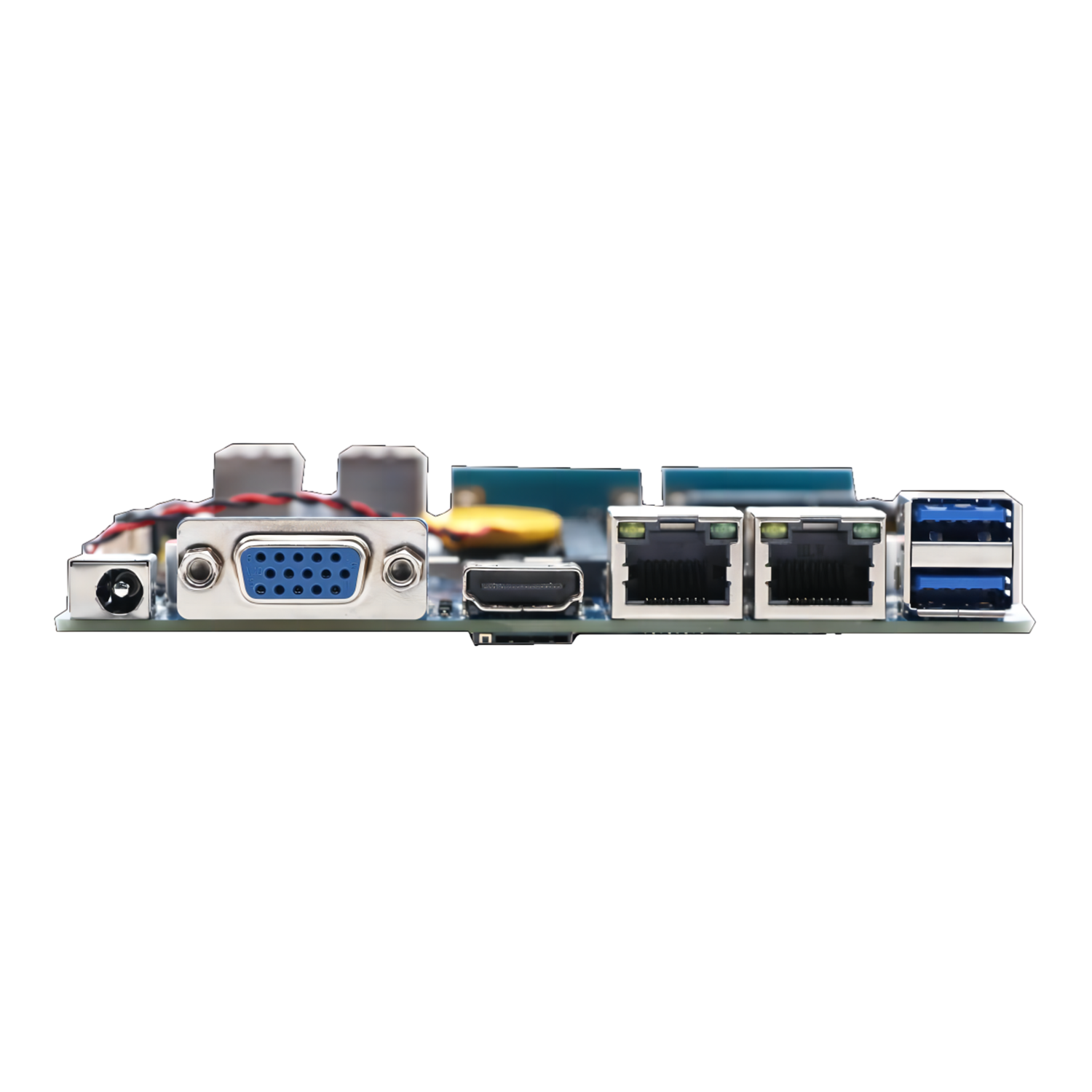

Rear I/O

USB

1*USB3.2 Gen1, 1*USB2.0

HDMI

1*HDMI1.4-out

VGA

1

LAN

2*RJ45 GLAN

DC-IN

1

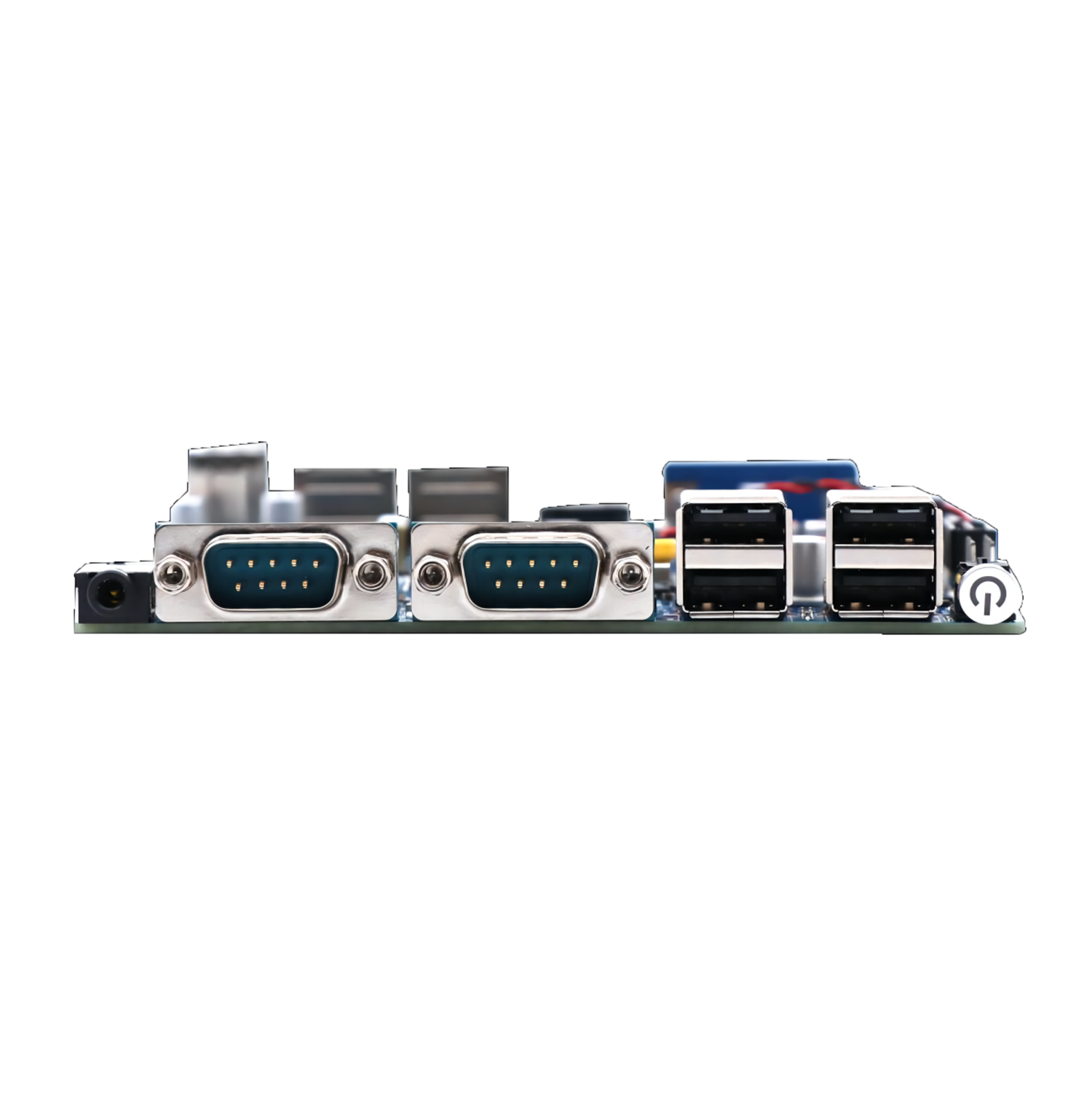

Front I/O

USB

4*USB2.0

COM

2

AUDIO

1*Audio Combo

Button

1*Power button

Internal I/O

USB

/

F_Panel

1

Audio

/

FAN

1*4Pin CPU_FAN

VGA

/

COM

/

SATA

1*SATA + 1*SATA PW遠醫R

Auto PWR

/

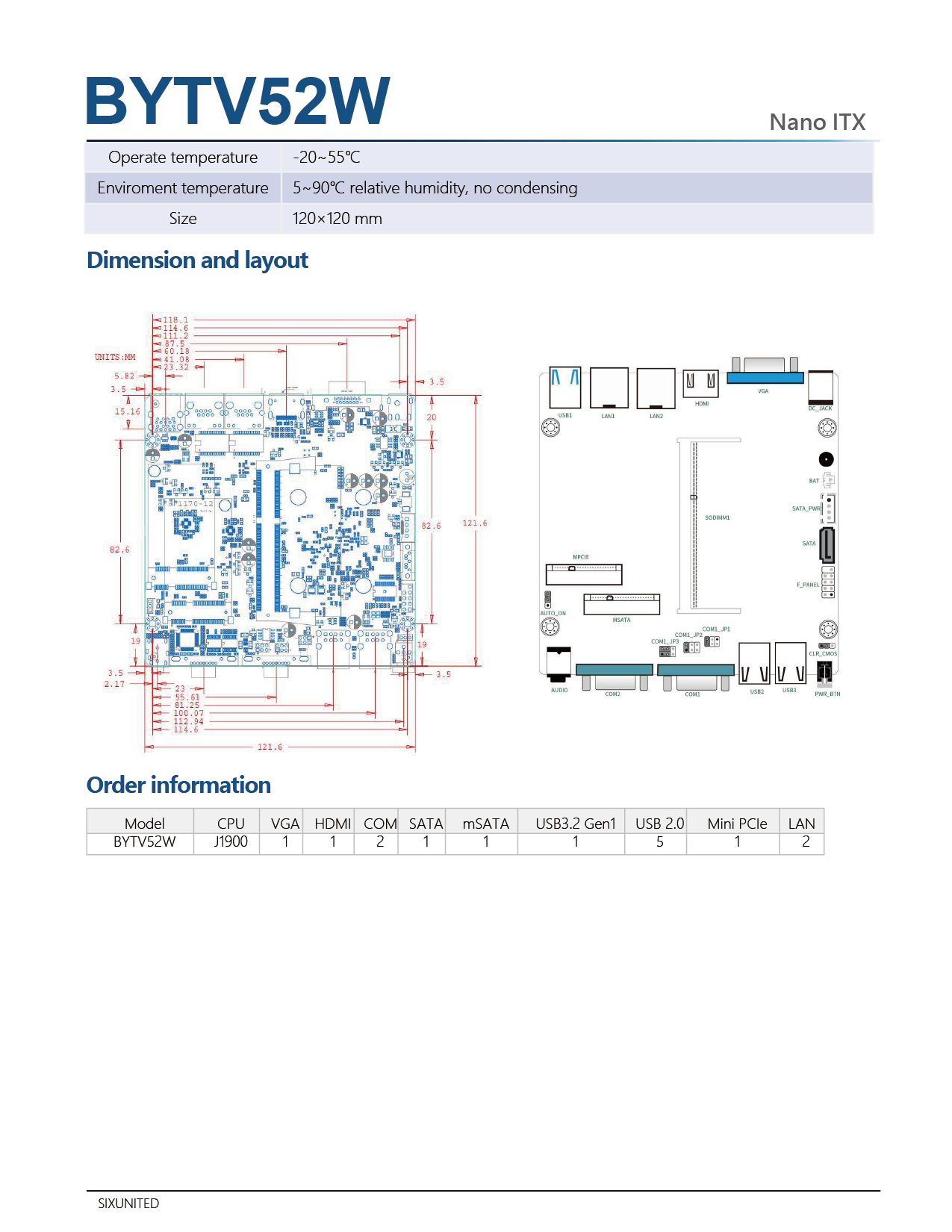

Mechanical

Power

12V DC IN

Dimension

120mm*120mm
