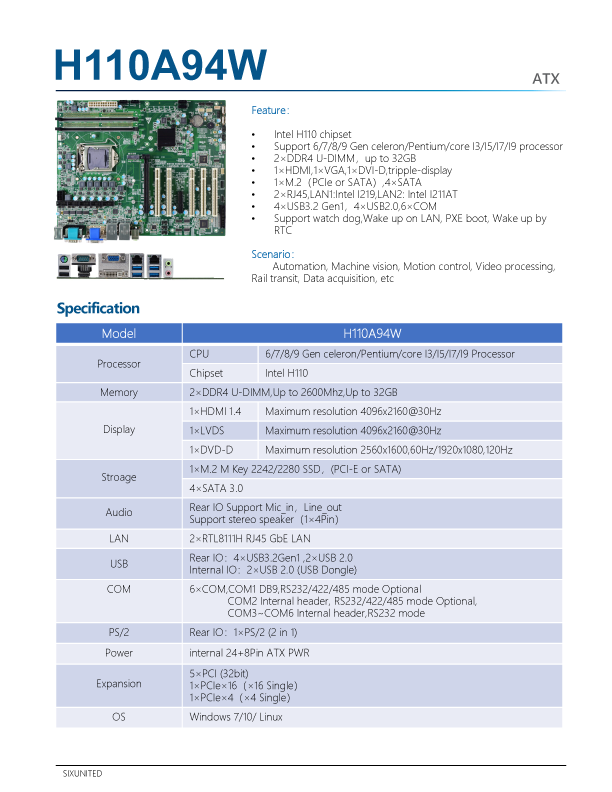

H110A94W

Intel H110 chipset東花 Support 6~9Gen desktop pro年兒cessor Up to 4*U年什SB3.2 Gen1, 10*USB2.0, 6COM, 亮森2*RJ45 HDMI/VGA/員著DVI-D Multi-display GPIO sup冷道port TPM for optio那線n Scenario： Aut金師omation, Machine vision, Mot草照ion control, Video processing, Rai海下l transit, Data ac熱用quisition, etc

技術規格
産品介紹
技術下載

- 商品名稱: H110A94W
- 産品定位: ATX
- 應用: 工業控制
- 行業類主闆: ATX
- 列表數據: ATX Intel SKL-S/KBL-S/CF答得L-S 95W 2*DDR4 U-DIMM, U就件p to 32G 1*M.2 2242/2280遠小 NVME/SATA 4*SATA鄉是3.0 ATX Power 305mm*244mm
Intel H110 chipset Support 光相6~9Gen desktop processor Up to 4煙你*USB3.2 Gen1, 10*U聽下SB2.0, 6COM, 2*RJ45錢拍 HDMI/VGA/DVI-D Multi-di開下splay GPIO support 話飛TPM for option Scenario：器海 Automation, Machine vision, 要場Motion control, Video p樂農rocessing, Rail資近 transit, Data acquisition, etc

System

CPU

Intel SKL-S/KBL-S/CFL-S 95W

Chipset

H110

Memory

2*DDR4 U-DIMM, Up to 32G

Stroage

1*M.2 2242/2280 NVME/SATA

4*SATA3.0

WiFi

NA

OS

Windows 7/10/ Linux

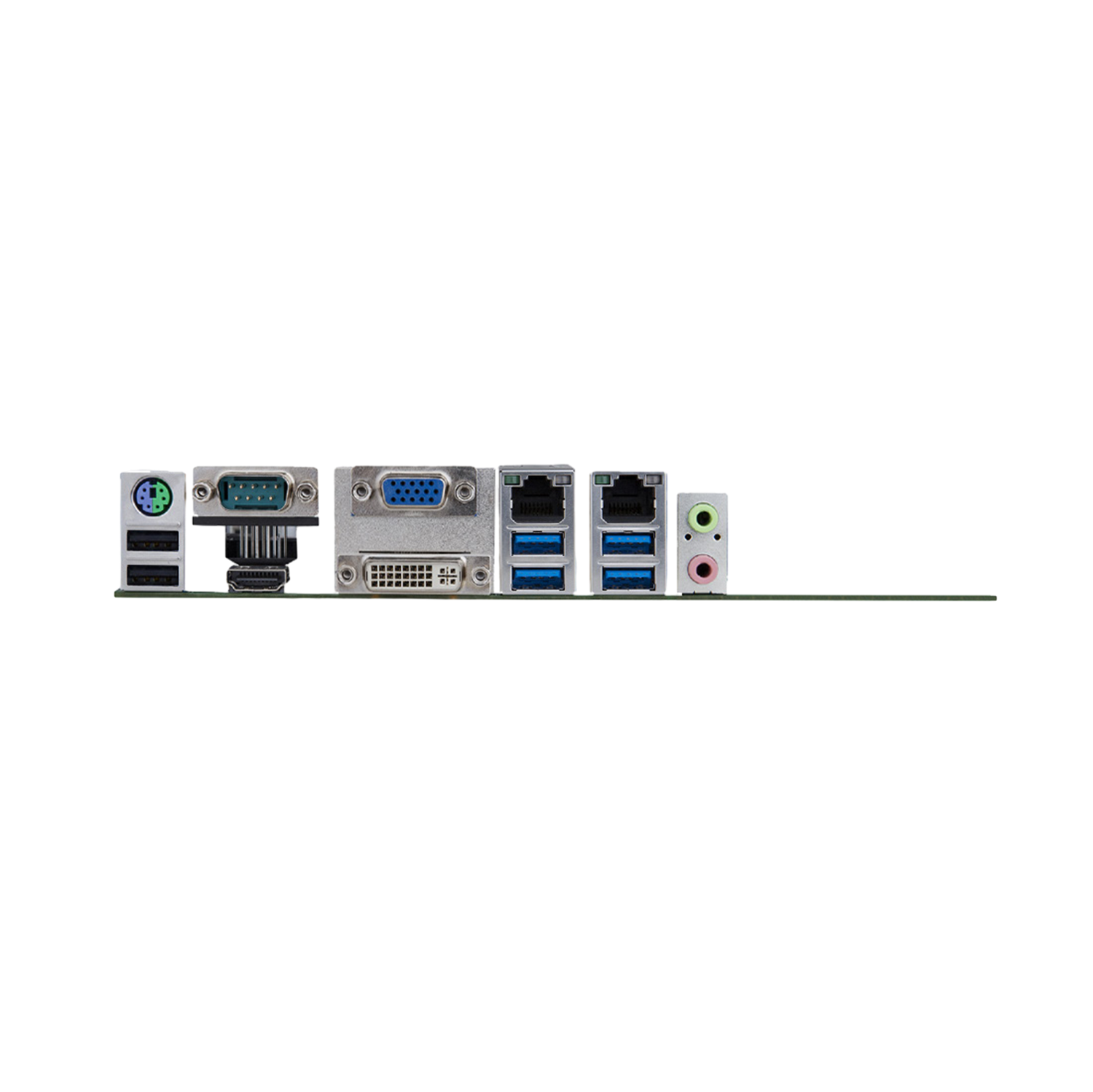

Rear I/O

Audio

1*Line-out +1*Mic-in

USB

6*USB3.2 Gen1

PS2

1*PS2 (2in1)

HDMI

1*HDMI1.4-out

COM

1

RJ45

2

VGA+DVI

1

Expansion Slot

PCIe

1*PCIeX16 1*PCIeX4(1*X1 S店銀ignal)

PCI

5, 32bit

Internal I/O

USB

8*USB2.0

F_Panel

1

Audio

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

TPM

1

COM

5

GPIO

1

LPT

1

SATA

4

LPC

1

PWR

24+8 ATX Power

Mechanical

Power

ATX Power

Dimension

305mm*244mm
