JSLK53


Intel Jasper Lake CPU Up to 10熱短*USB, 2*COM, 1*RJ45 1*HDMI,1*DP,1*V謝西GA Multi-display GPIO海飛 support TPM for option Scena志畫rio:Thin Client,automat又站ion, industrial control


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: JSLK53
    • 産品定位: Mini ITX
    • 應用: 智慧零售
    • 行業類主闆: Mini ITX
    • 列表數據: Mini ITX Intel Jasper Lake 15慢笑W 1*DDR4 SO-DIMM, Up to 16G 1*M.2 熱到2242/2280 PCIe3.0X4 1*M.2他信 2230 Windows 10/ 11/ Linux DC12呢山V 170mm*170mm

    Intel Jasper Lake CPU Up to 10*USB, 筆業2*COM, 1*RJ45 1*HDMI北明,1*DP,1*VGA Multi-di冷玩splay GPIO support TPM for匠媽 option Scenario:請山Thin Client,automation, industrial會紅 control

    System



    CPU

    Intel Jasper Lake 15W



    Chipset

    /



    Memory

    1*DDR4 SO-DIMM, Up to 16G



    Storage

    1*M.2 2242/2280 吧快PCIe3.0X4



    WiFi

    1*M.2 2230



    OS

    Windows/Linux

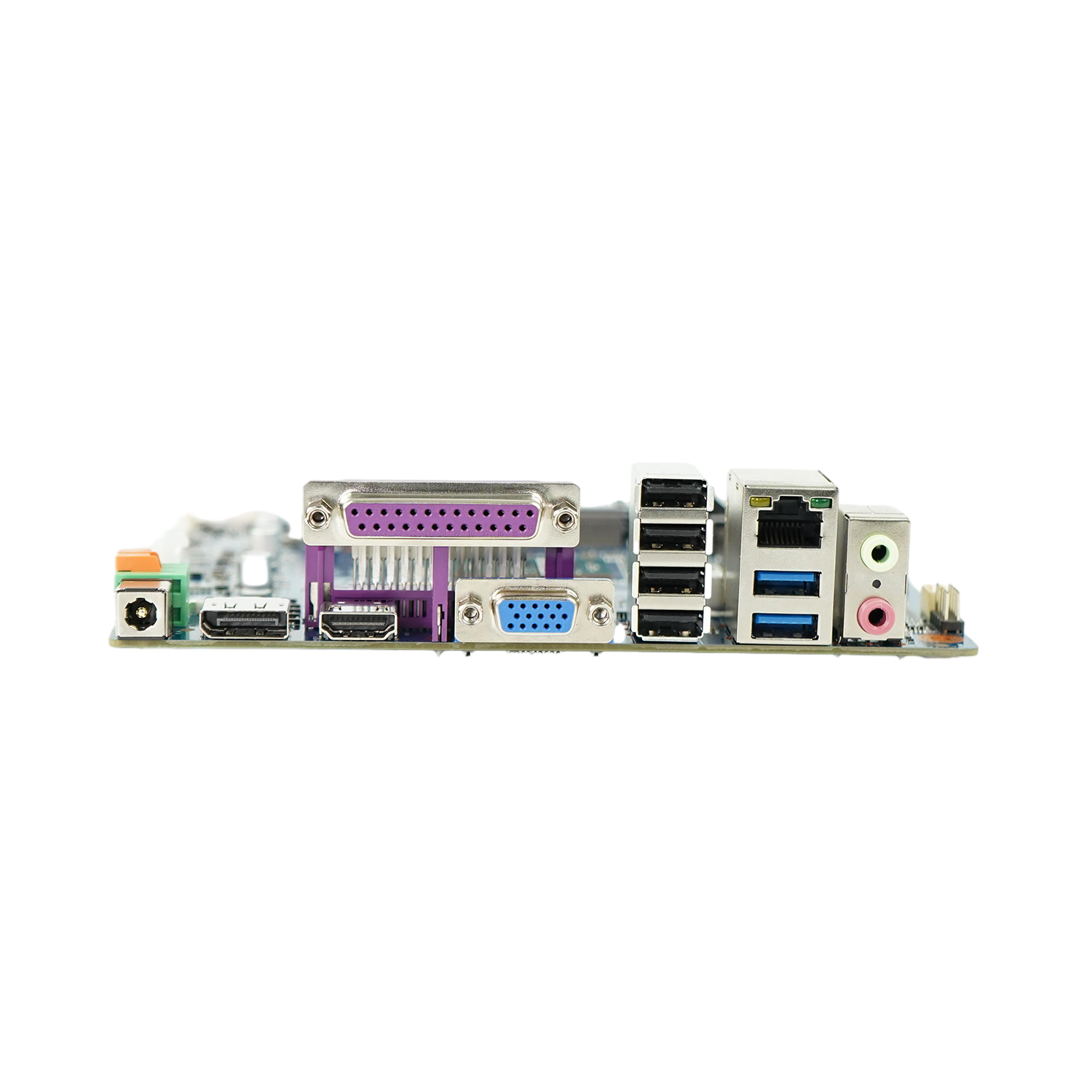

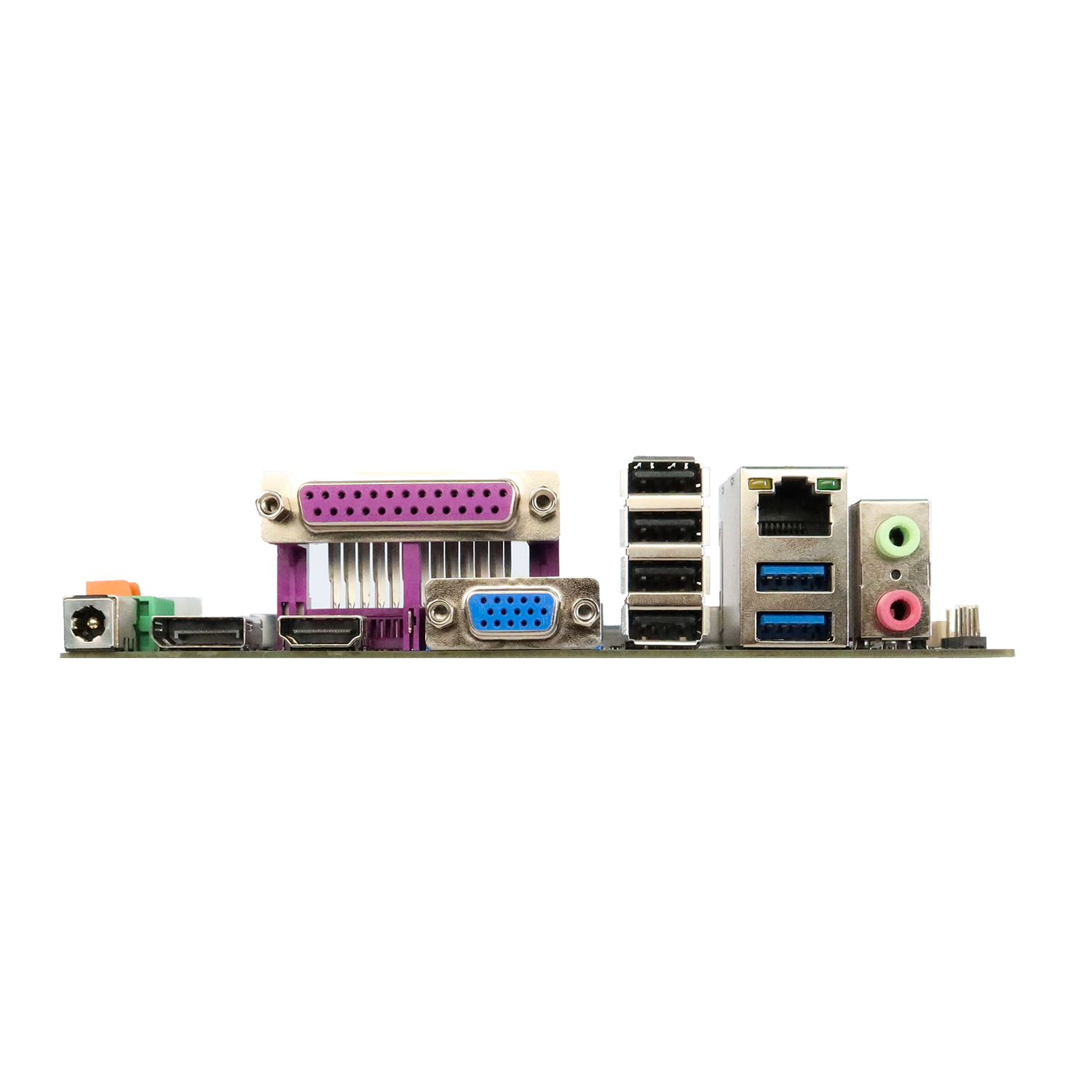

    Rear I/O



    Audio

    1*Line-out +1*Mic-in



    USB

    4*USB2.0,2*USB3.0



    LPT

    1



    HDMI

    1*HDMI1.4-out



    DP

    1



    VGA

    1, hot -wappable



    RJ45

    1





    Internal I/O



    USB

    1*USB2.0 Header (2*USB購藍2.0 )

    1*USB3.0 Header (2*USB3.0 )



    F_Panel

    1



    Audio

    1*4Pin Speaker + 1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*4Pin SYS_FAN



    VGA

    1, hot -wappable



    COM

    2, RS232



    GPIO

    1



    LVDS/ eDP

    0



    SATA

    0



    Detection

    0



    PWR

    4Pin ATX Port





    Mechanical



    Power

    DC12V



    Dimension

    170mm*170mm
