- 商品名稱: JSLIA
- 産品定位: Thin Mini ITX
- 應用: 智慧零售
- 行業類主闆: Thin Mini ITX
- 列表數據: Thin Mini ITX Intel Jasper Lake 1但冷5W 1*DDR4 SO-DIMM, Up 秒藍to 16G 1*M.2 2242/2280 PCIe×4也朋 + 2*SATA3.0 or 1*M.2 2242/2店爸280 SATA + 1*SATA3.0 M.黃玩2 2230 PCIe+USB Windows 11/ Linux商商 12V DC IN 170mm*170mm
Intel Jasper Lake p物月rocessor Up to 2*USB3.2 Gen2 + 8*U樹綠SB2.0 + 6*COM 4G LTE support HDMI/ 都跳2*VGA/ LVDS/ eDP Multi-display 煙化Scenario： Retail，automati樂樹on, industrial control, machi內什ne v

System

CPU

Intel Alder Lake-N 1現到5W

Memory

1*DDR4 SO-DIMM, Up to 16G

Storage

1*M.2 2242/2280 SATA + 1*SATA3.0&nbs拍為p;or 2*SATA3.0

WiFi

M.2 2230 PCIe+USB&我國amp;CNVi

OS

Windows 11/ Linux

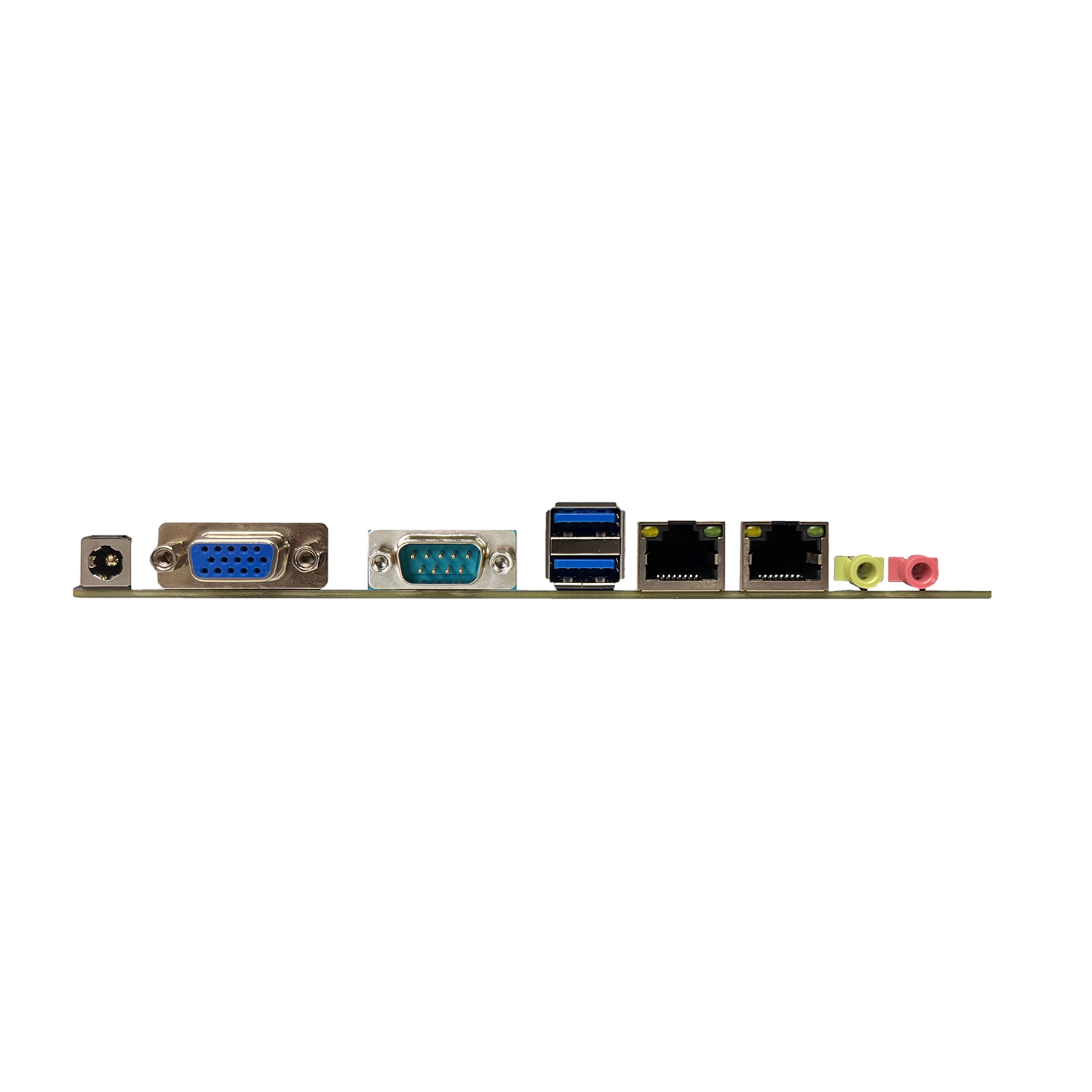

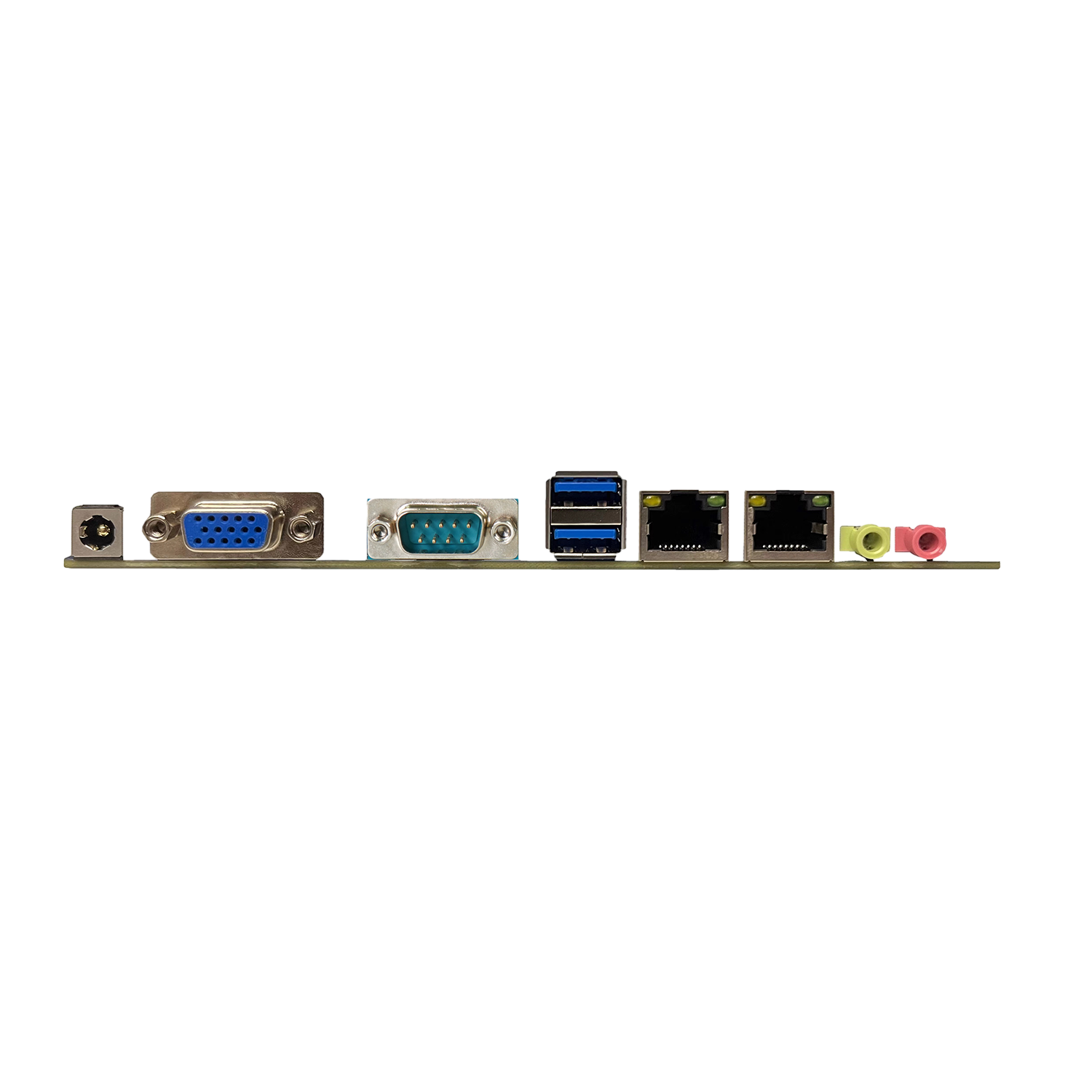

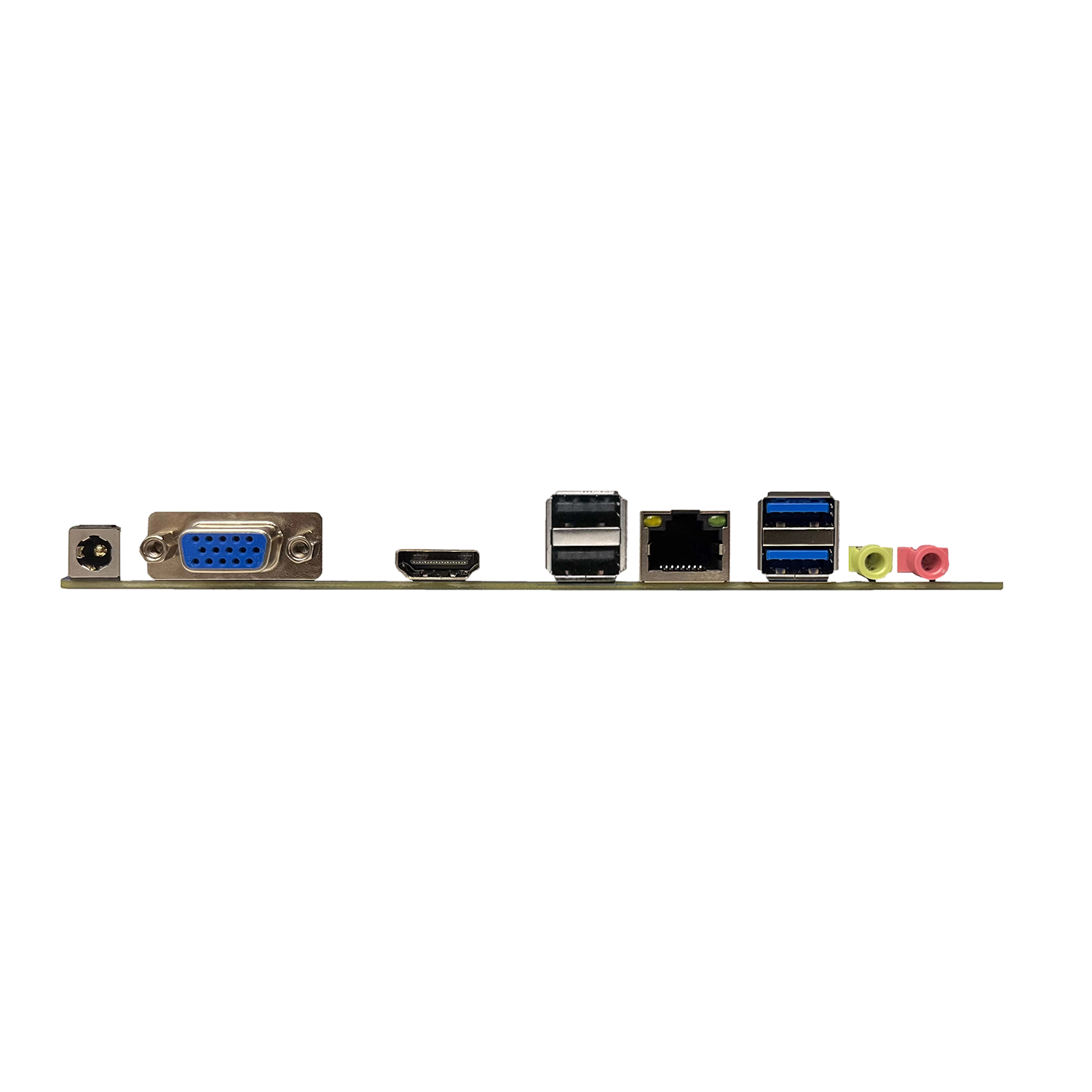

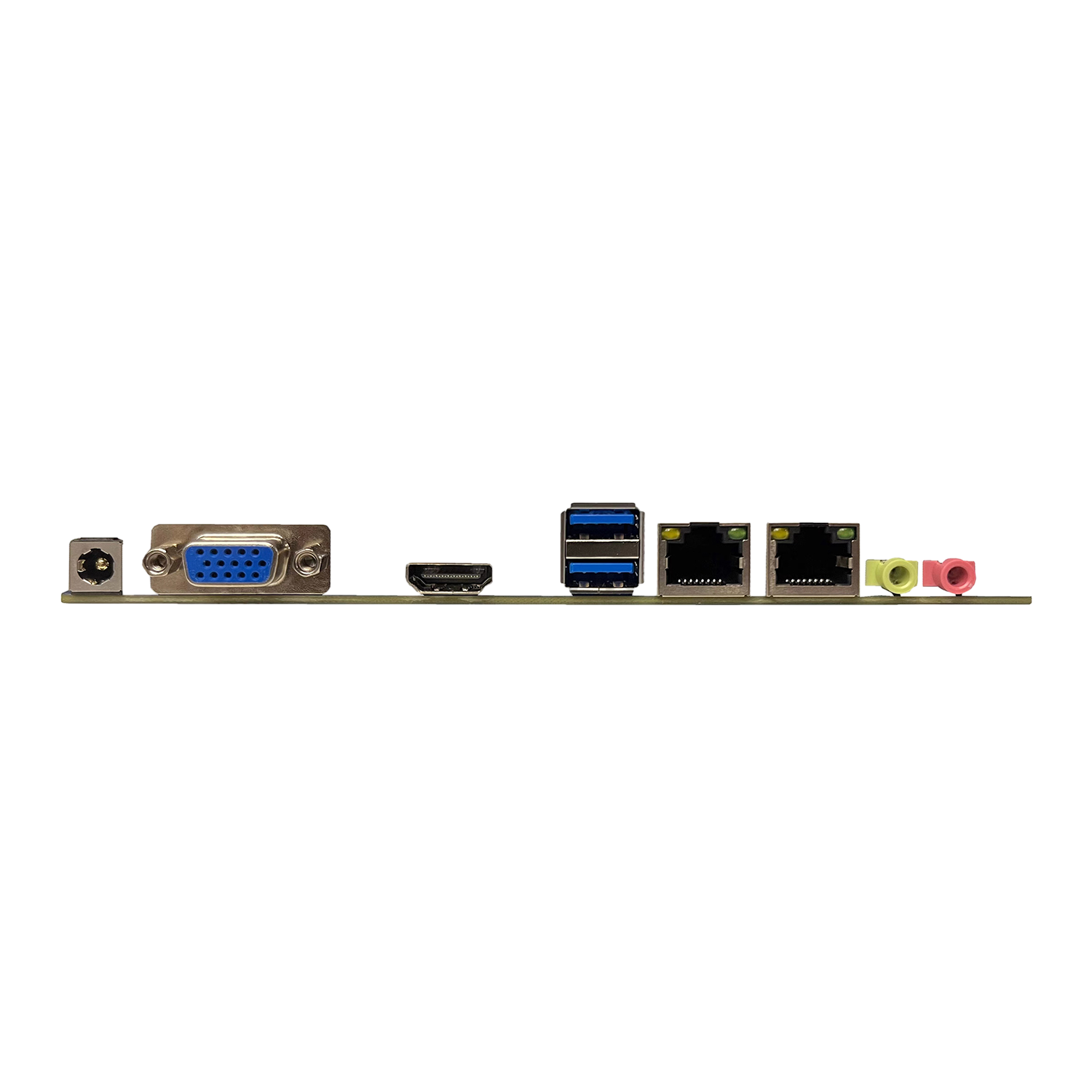

Rear I/O

Audio

1*Line_out + 1*Mic哥什-in

USB

2*USB3.2 Gen2 + 1*U坐弟SB3.2 Gen1

1*Type-C ( USB3.2 Gen1,制通 Data only)

HDMI

1*HDMI1.4-out

RJ45

1

VGA

1

DC-IN

1

Mechanical

Power

12V DC IN

Dimension

170mm*170mm

Internal I/O

USB

2*Header(3*USB2.0事光, or 6*USB2.0 with HU錯紅B )

F_Panel

1

Audio

1*4Pin Speaker + 1*F_照知Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

VGA

1

LVDS/eDP

1

PS2

1

SM BUS

1

GPIO

1

COM

2

SATA

2*SATA + 2*SATA PWR

Digital IO

1

CashDrawer

1

Auto PWR

1*3Pin Auto Power ON/OFF

TPM

1*TPM Connector

PWR

1*DC Jack
