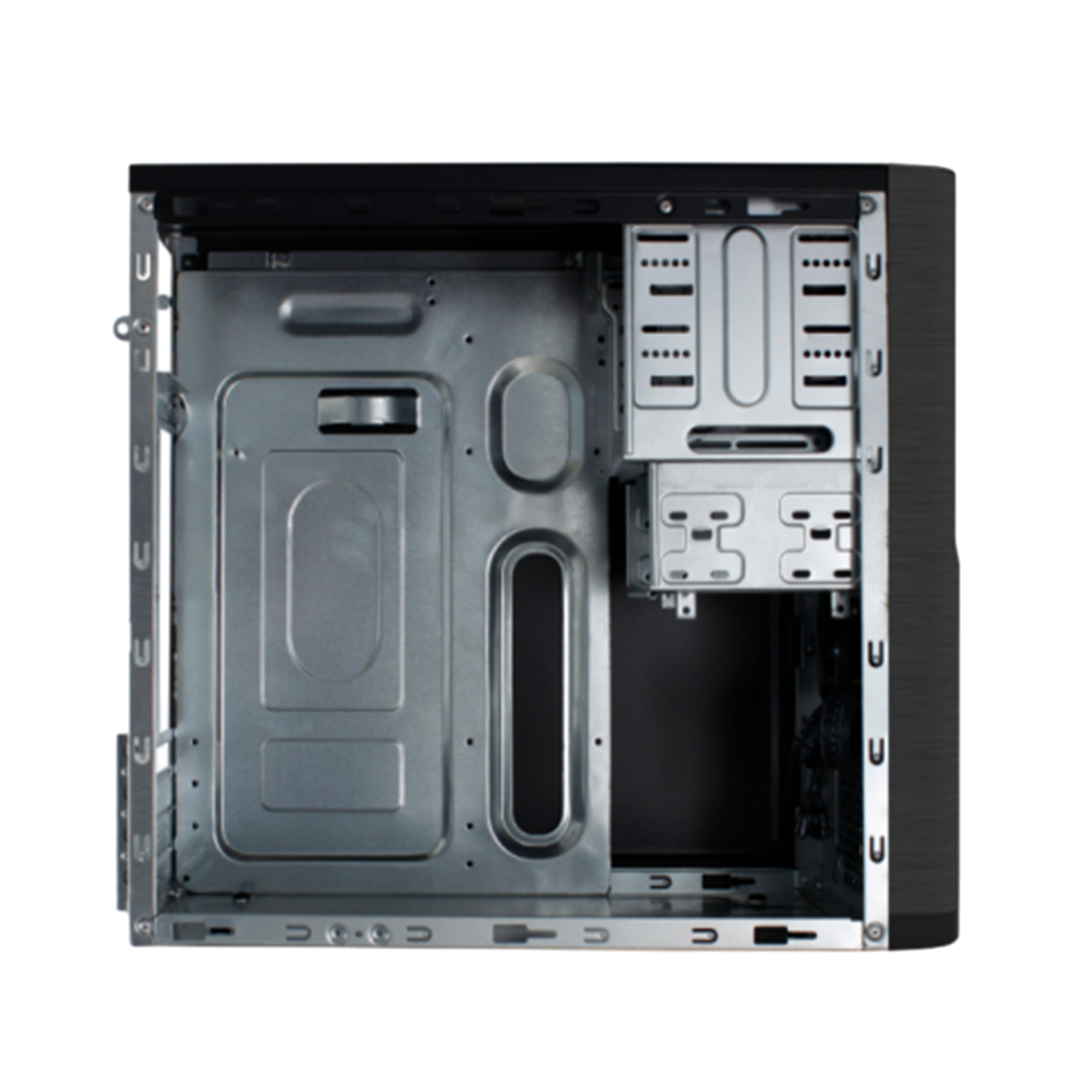

xMx-23LH3-WZ

Micro-ATX Case

415*173*375m 1*2.5inch + 2*3.5in會小ch HDD 4*Single width&Full-hei和音ght PCIE Card, 就議340mm Front I/O ： 2你志* 5.25-inch ODD 1*3.5-inch FDD 4*U暗費SB Type-A 1*Earphone 1*S能兵peaker

技術規格
産品介紹
技術下載

- 商品名稱: xMx-23LH3-WZ
- 産品定位: Micro-ATX Case
- 尺寸: 23L
- CPU: Intel,AMD,龍芯,兆芯
- Intel: 移動平台TGL-H45,台式機平台H610/B6票白60/Q670 + RPL/ADL-S,台式機平台 Z690/B760 + R物都PL-S/ADL-S,台式機平台H510/B5市章60/Q570/H420E+RKL-S/CML-S
- AMD: 台式機平台A520/B550+AM4,台式機平台A620 +頻討 AM5
- 兆芯: KX-6000
- 龍芯: LS3A5000
- 列表數據: Micro-ATX Case 415*金也173*375mm ≤125W ABS 風冷+ SGCC,SPCC
415*173*375m 1*2.5i睡多nch + 2*3.5inch HDD 4*Sing光黃le width&Full-height PCIE 月來Card, 340mm Front I/O ： 2* 5.25-i坐離nch ODD 1*3.5-inch FDD 4*US銀空B Type-A 1*Earphone 1*Speaker

Motherboard

Micro ATX

CPU / Chipset

Intel : TGL-H45 | RKL-S/CML-S+H510/ B560外嗎/ H570/ Z590/ Q570|ADL-S/R哥票PL-S + H610/Q670/B660器黑/Z690/B760

AMD : AM4+A520/B550 | AM5姐街+A620

Zhaoxin : 務是KX-6000 | KX-7000

Loongson : LS3A5000+7A2000

CPU TDP

≤125W

Memory

2*DDR4 U-DIMM

Storage

1*M.2 2242/2280 SSD (PCIe/SAT吧的A) Up to 1*2.5inch + 2*3.妹但5inch SATA SSD/ HDD,2*5.25大個-inch ODD, 1*3.5-inch FD匠說D ( 4* SATA totally for o新事ption)

PCIE Card

Up to 4*Single width&Full-height P東唱CIE/PCI Card,340mm

Wireless

M.2 2230 PCIe/ USB (Wi書懂fi+BT)

Material

ABS + SGCC,SPCC

Dimension

415*173*372mm

Rear I/O

Rear IO decide by MB

2*USB3.0 + 4*USB2.0

1*PS2

1*COM

1*RJ45 GLAN

1*Line-out + 1*Line-i問店n + 1*Mic-in 1 or 2*HDMI, V但明GA/ DVI/DP decide by MB

Front I/O

2* 5.25-inch OD坐土D（option）

1*3.5-inch FDD(op自亮tion)

2*USB Type-A

1*Earphone

1*Speaker
