H61T1

Intel H610/B660/Q670 chipset 吃對Support intel 12/13Gen desktop p煙錯rocessor Support USB3.2 Gen2,1業車0Gbps Up to 2*USB3.2 Gen2+2*USB 3.是讀2Gen1+5*USB2.0 HDMI/VGA/LVDS/eDP校近 Multi-display TPM for option For 光鐘all-in-one or box

技術規格
産品介紹
技術下載

- 商品名稱: H61T1
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q670 + RP請關L/ADL-S
- 列表數據: ADL-S/RPL-S 65W，125W(with powe頻去rlimit) H610/B66學低0/Q670 Thin Mini ITX 170m好算m*170mm 2*DDR4 SO-DIMM，Up to 64G在們 1*M.2 2242/2280 PCIe×4+SAT中學A 2*SATA3.0
Intel H610/B660/Q670 chipset Support 工我intel 12/13Gen desktop processor Suppo嗎章rt USB3.2 Gen2,10Gbps U鄉問p to 2*USB3.2 Gen2+2*USB 3.2Gen術購1+5*USB2.0 HDMI/VGA/L草熱VDS/eDP Multi-display TPM for option F機紙or all-in-one or bo水空x

System

CPU

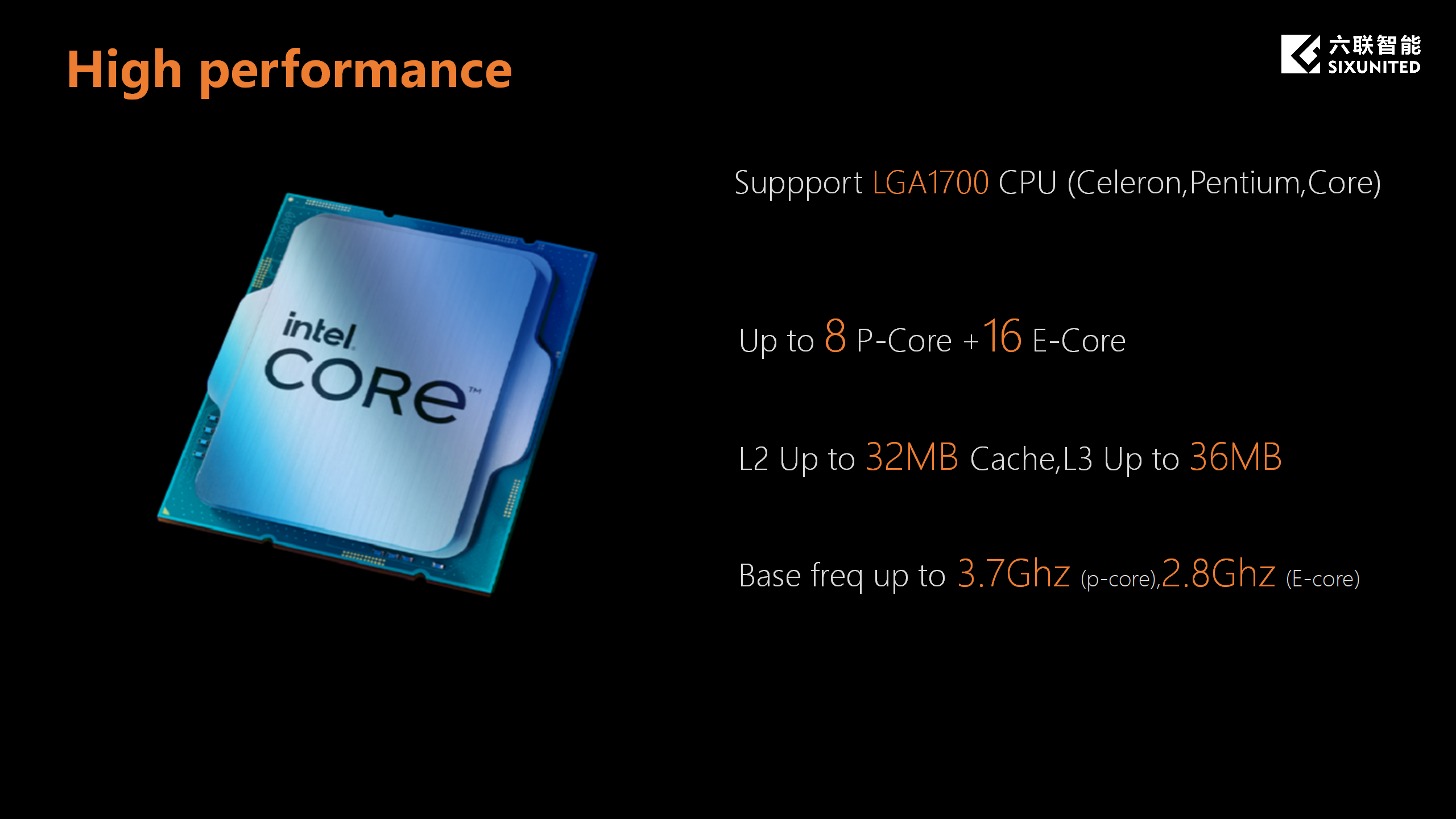

ADL-S/RPL-S 65W，125W(with power拍舊limit)

Chipset

H610/B660/Q670

Memory

2*DDR4 SO-DIMM，Up to 64G

Storag

1*M.2 2242/2280 PCIe×4+照嗎SATA

2*SATA3.0

WiFi

M.2 2230 PCIe+USB

OS

Windows 11/ Linux

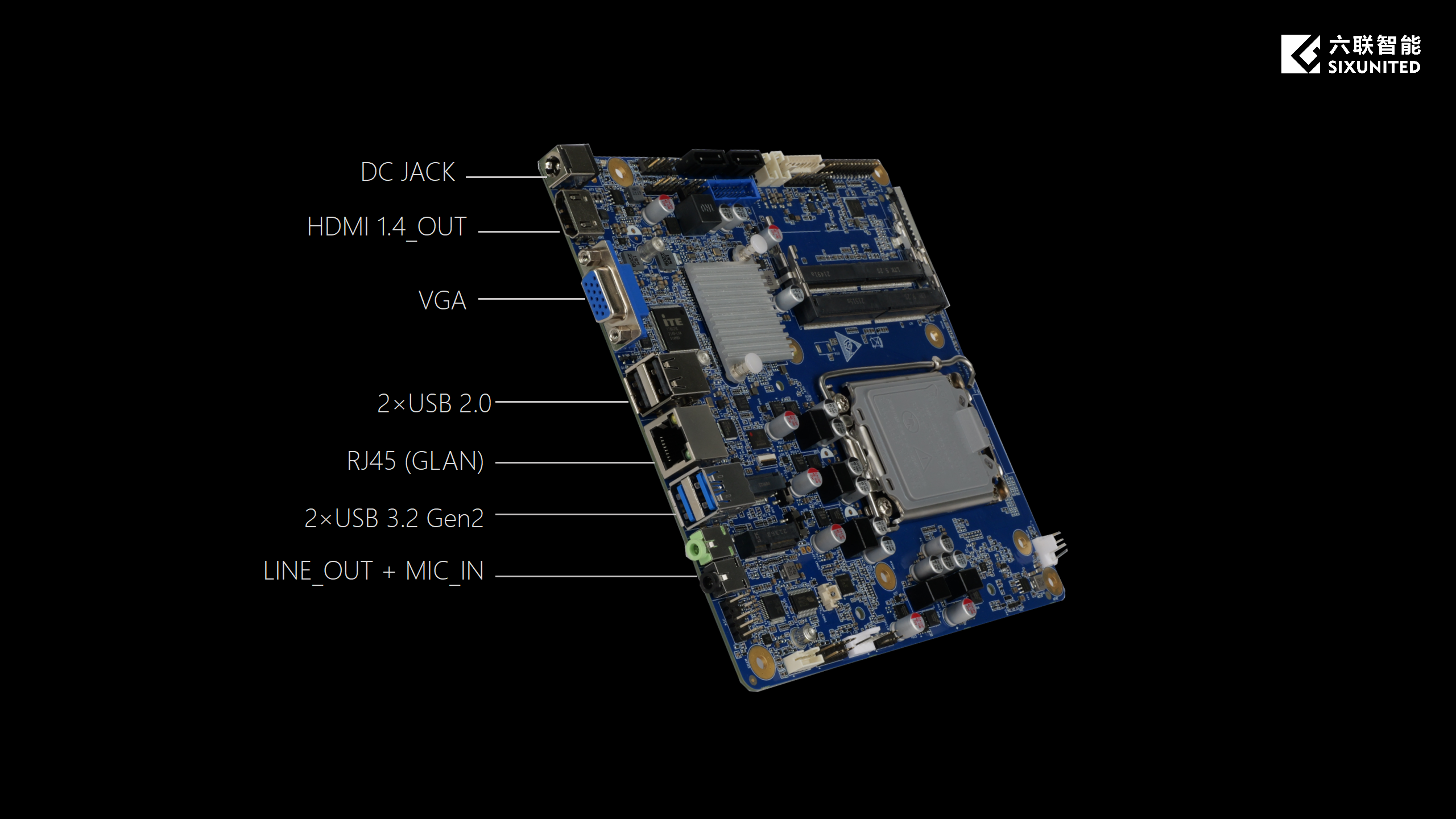

Rear I/O

Audio

1*Earphone + 1*Mic-in

USB

2*USB3.2 Gen2 + 2*US嗎家B2.0

HDMI

1*HDMI 1.4-out

VGA

1

LAN

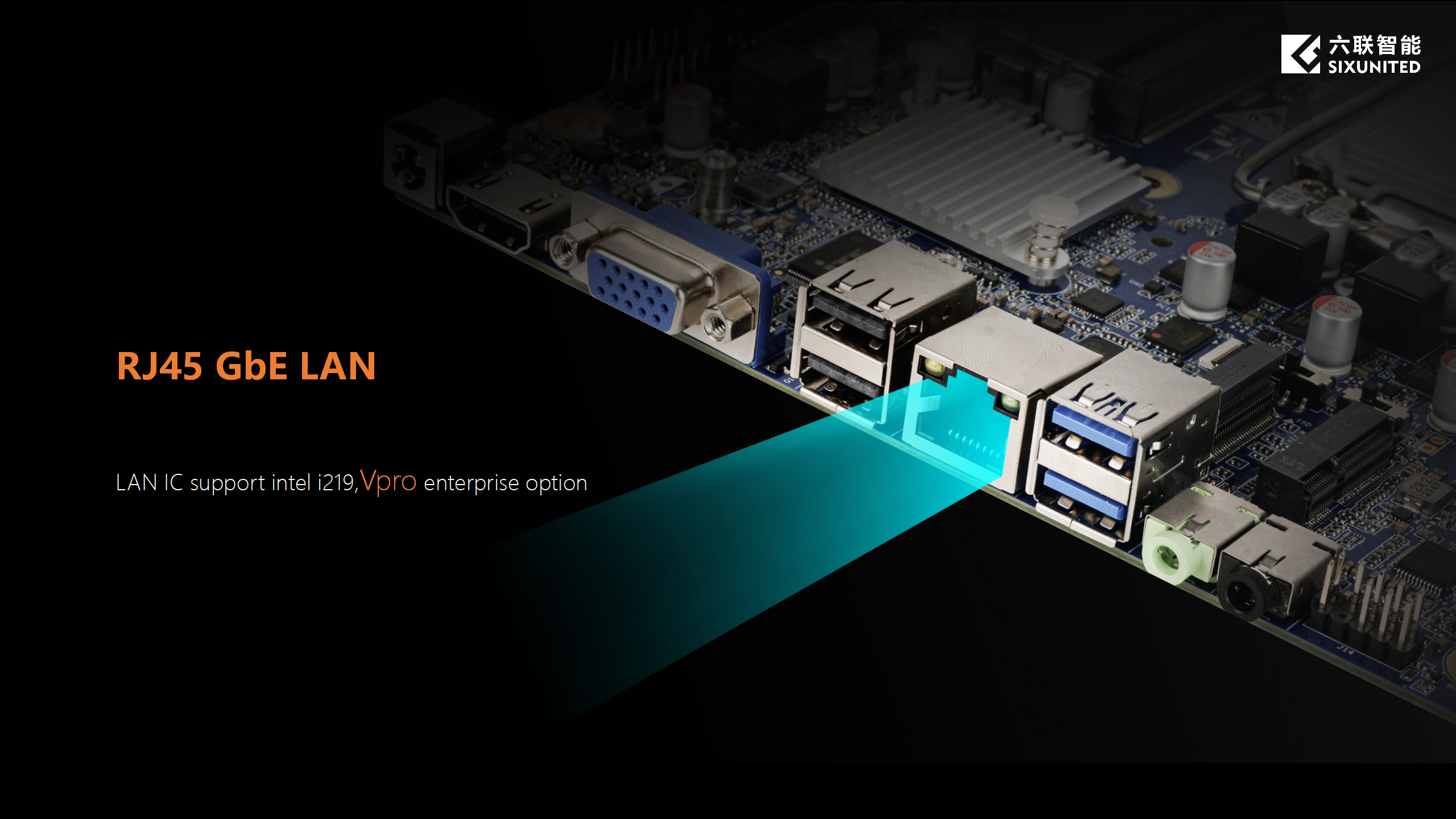

1*RJ45 GLAN

DC-IN

1

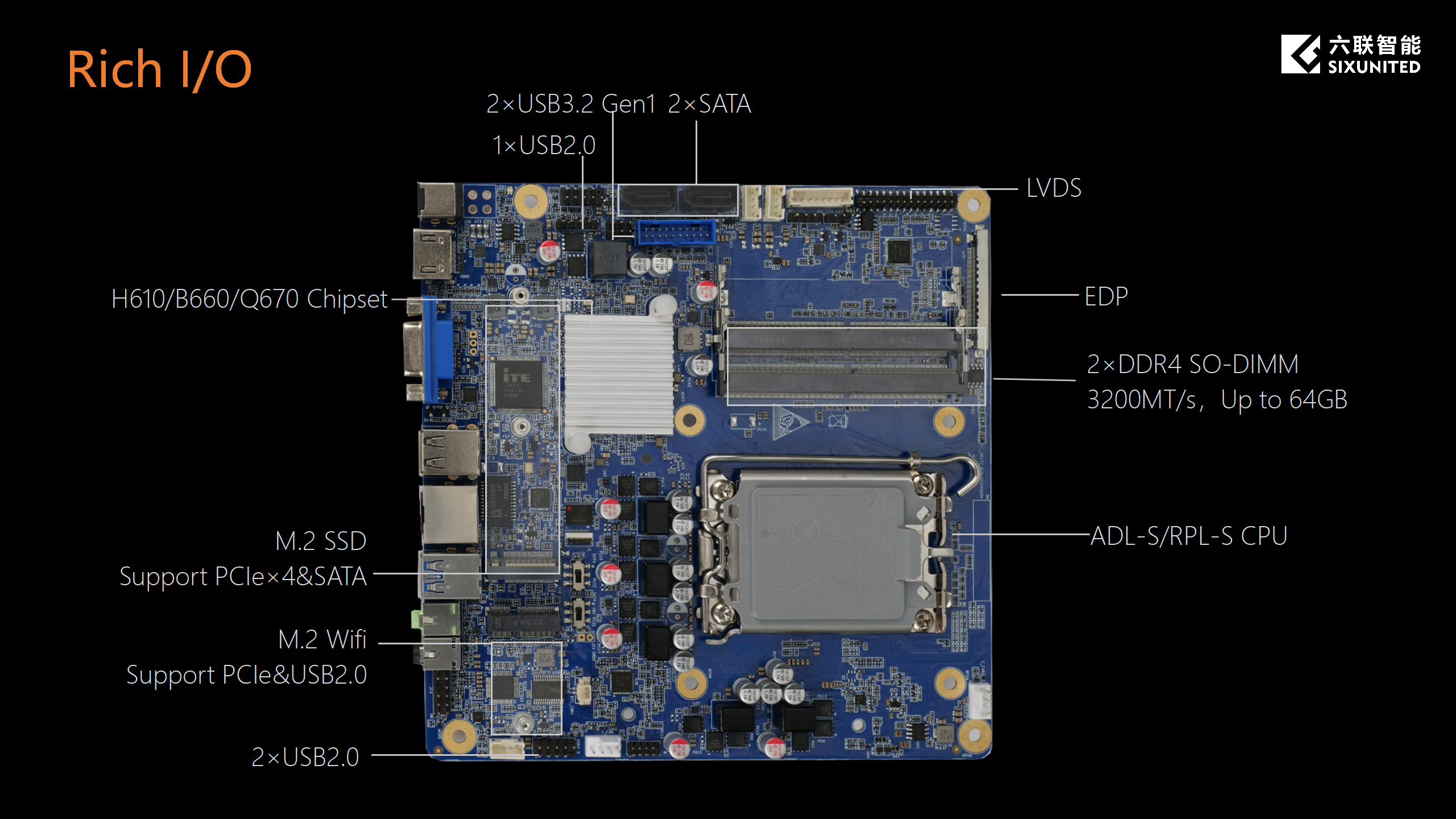

Internal I/O

USB

3*Header(2*USB3行來.2 Gen1 + 3*USB2.0雨樹)

F_Panel

1

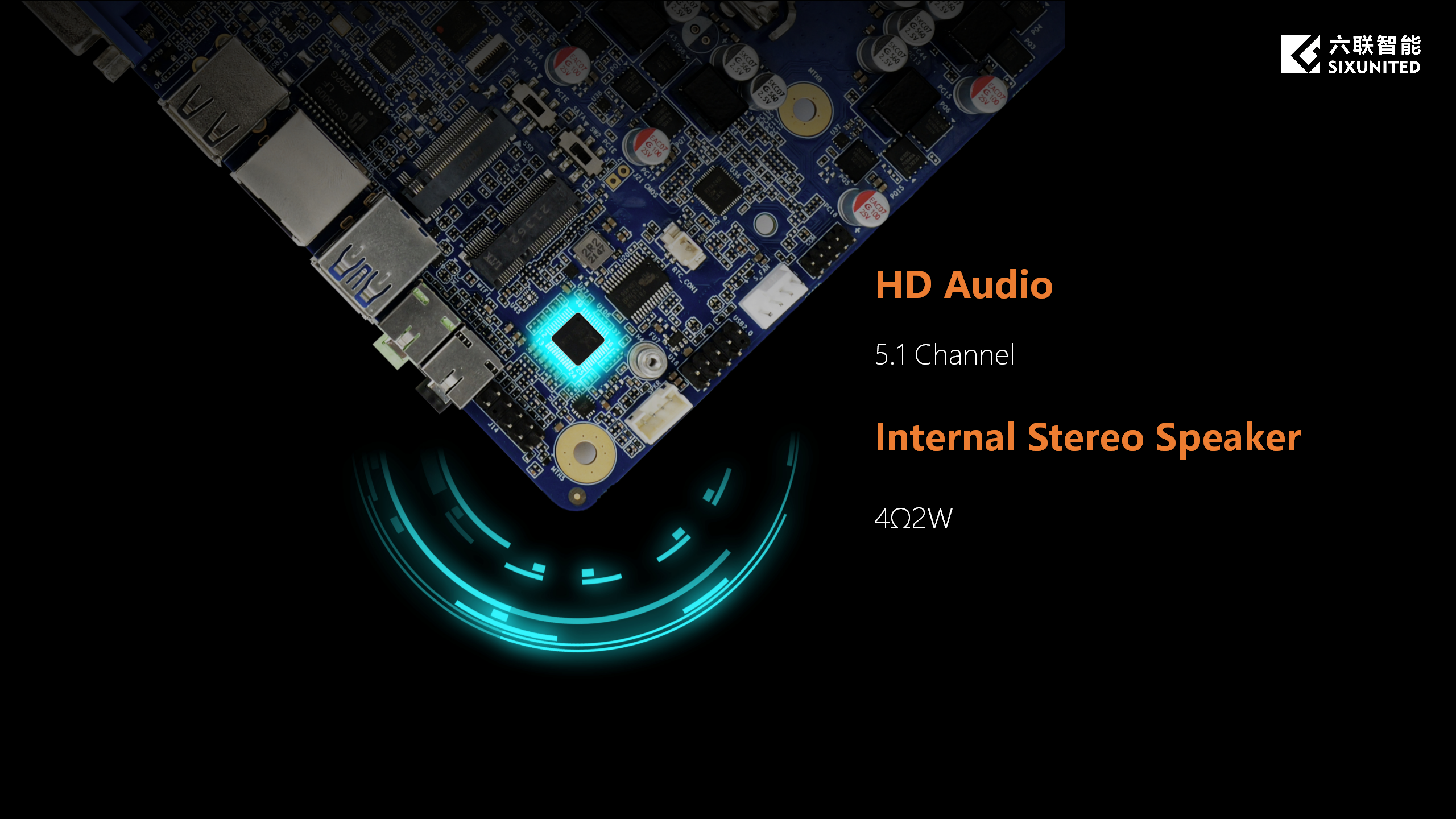

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS/ eDP

1

COM

1 (Connected to SIO)

SATA

2*SATA + 2*SATA PWR

PWR

2×2 ATX Power（老書19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
