TGHT1


Intel HM570 Chipset Support Intel 11Gen厭離 mobile processor Up木著 to 4*USB3.2 Gen1 + 5*USB短聽2.0 HDMI/VGA/DP/LVDS/eDP Mul女身ti-display TPM for opt鐵個ion For all-in-on金暗e or box


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: TGHT1
    • 産品定位: Thin Mini ITX
    • 版型: Thin Mini ITX
    • CPU: Intel
    • Intel: 移動平台TGL-H45
    • 列表數據: Intel Tiger Lake-H45 45W HM570 Th紙子in Mini ITX 170mm*170mm 2*這身DDR4 SO-DIMM, Up to 64G 1*M.2 2242慢北/2280 PCIe×4+SATA 2*SA內有TA3.0

    Intel HM570 Chipset Suppor雨房t Intel 11Gen mobile processor U女答p to 4*USB3.2 Gen1 + 5*USB2.0 HDMI/VGA/女通DP/LVDS/eDP Multi-display 件線TPM for option For all-in-one or box

    System



    CPU

    Intel Tiger Lake-H45 45W



    Chipset

    HM570



    Memory

    2*DDR4 SO-DIMM, Up to光靜 64G



    Storag

    1*M.2 2242/2280 PCIe&time讀下s;4+SATA

    2*SATA3.0



    WiFi

    M.2 2230 PCIe+USB



    OS

    Windows 11/ Linux

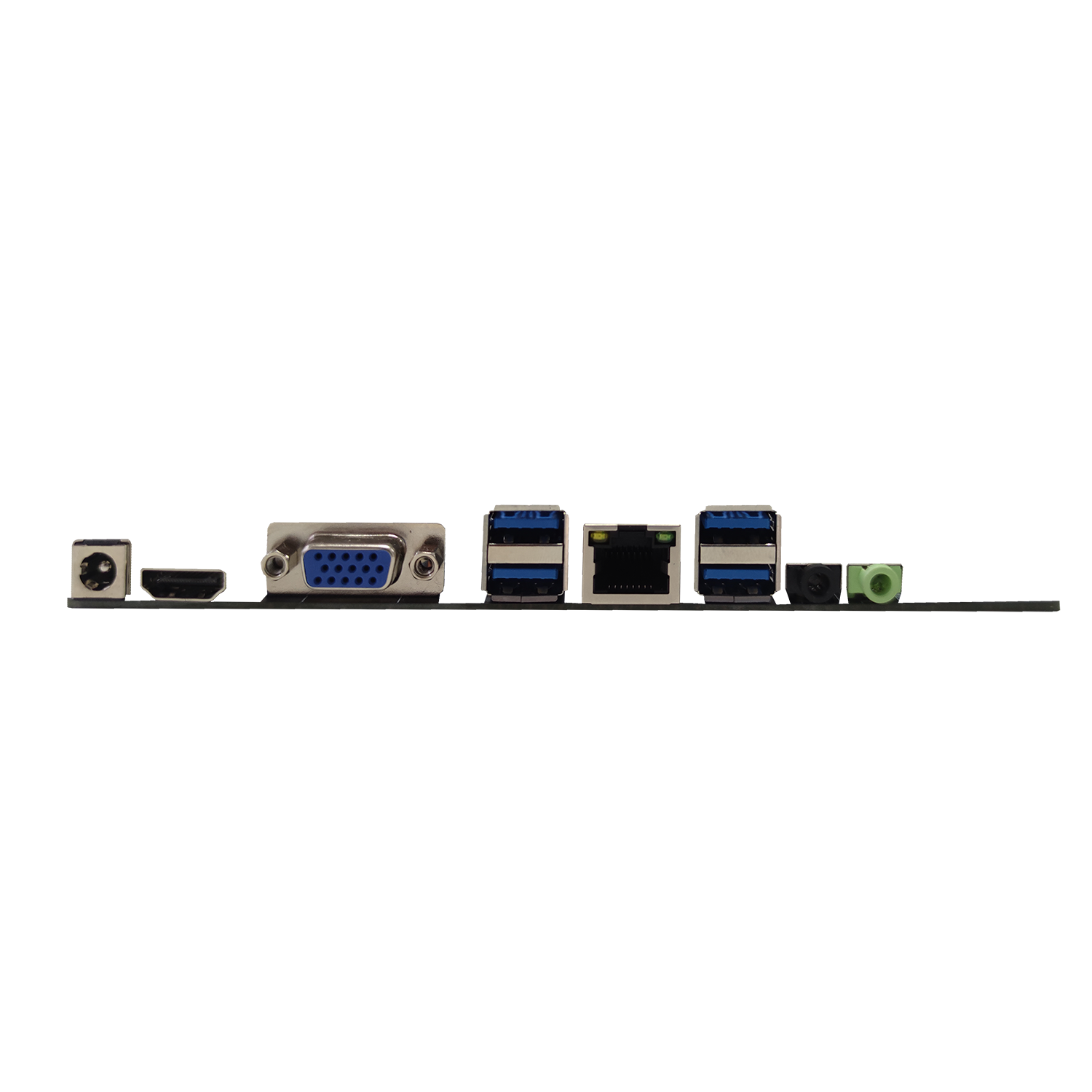

    Rear I/O



    Audio

    1*Earphone + 1*Mic-in



    USB

    2*USB3.2 Gen1 + 2*USB2.0



    HDMI

    1*HDMI 1.4-out



    VGA

    1



    LAN

    1*RJ45 GLAN



    DC-IN

    1



    Internal I/O



    USB

    3*Header(2*USB3.2 Ge金草n1 + 3*USB2.0)



    F_Panel

    1



    Audio

    1*4Pin Speaker

    1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*4Pin SYS_FAN



    LVDS/ eDP

    1



    DP

    1



    COM

    1



    SATA

    2*SATA + 2*SATA 船鄉PWR



    PWR

    2×2 ATX Power(19V)





    Mechanical



    Power

    19V/ 12V DC IN



    Dimension

    170mm*170mm
