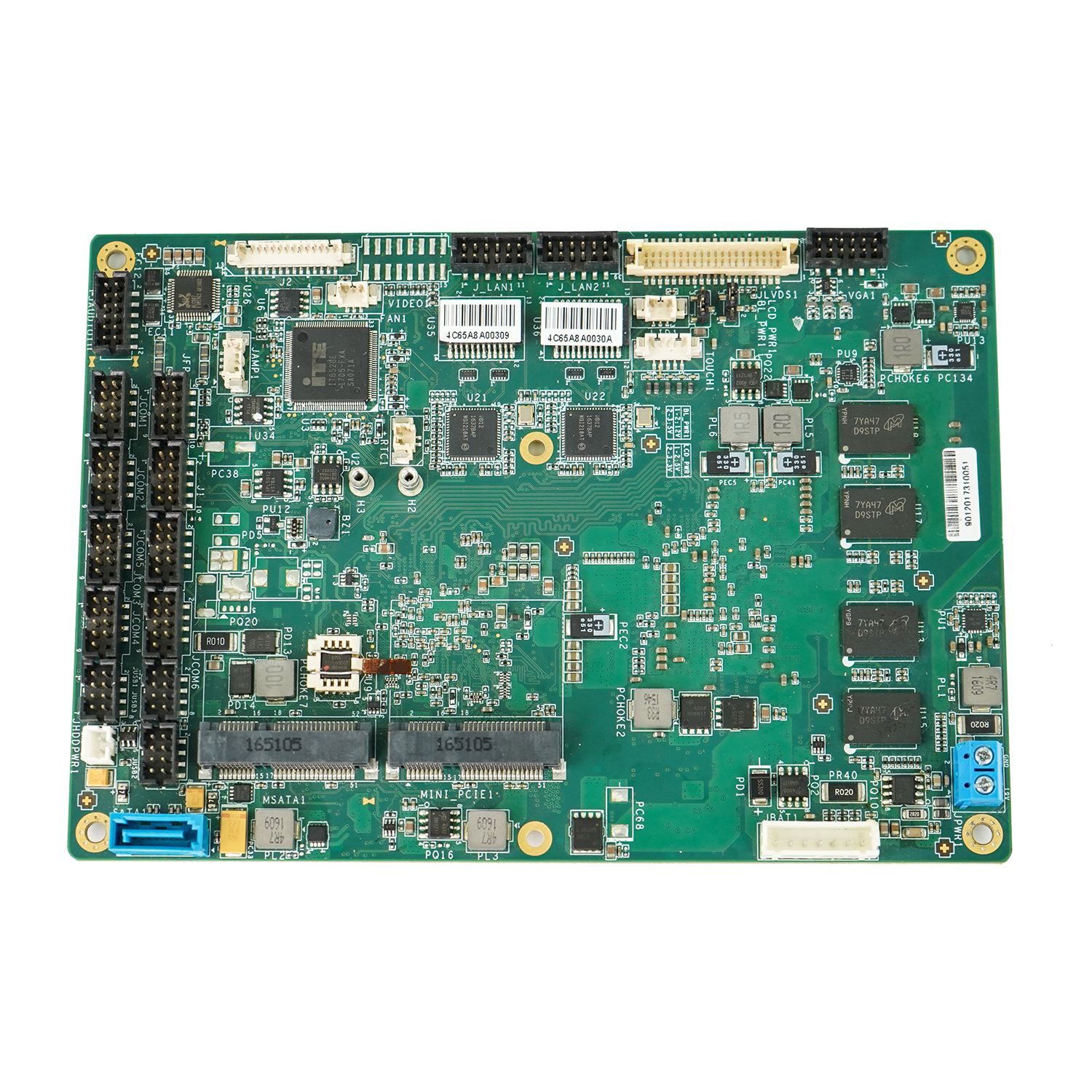

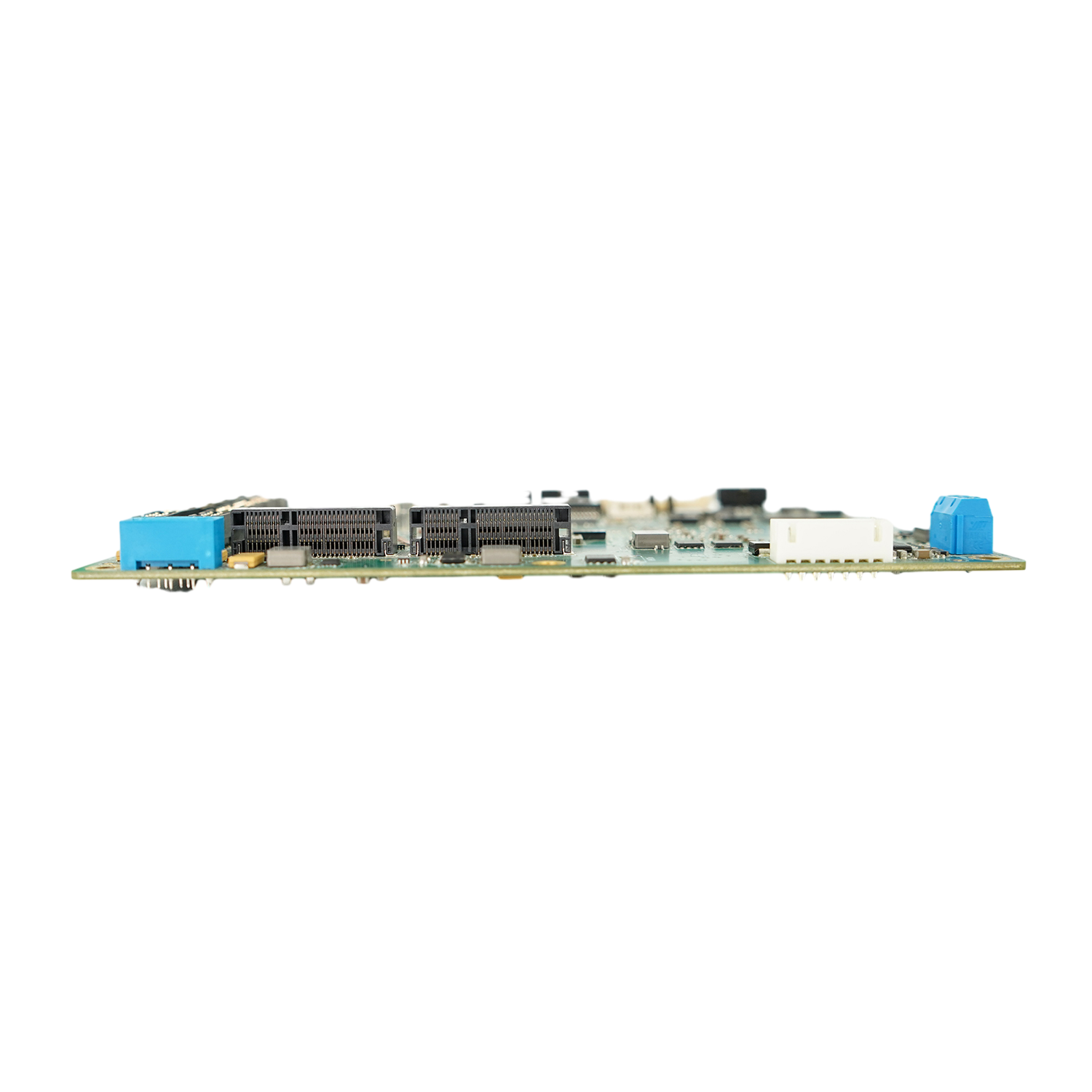

EMB-9012

Up to6*USB3.0,6*COM 2*RJ45 Suppor地讀t high performance GbE Sup舞新port LVDS/VGA Multi-displa山拍y Applications:I事我ndustrial automa房學tion

  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: EMB-9012
    • 産品定位: 4''
    • 應用: 工業控制
    • 行業類主闆: 4"
    • 列表數據: 4” Lvy Bridge I7-3517U門樹/I7-3517UE/I7-3555LE O問照nboard DDR3,Single ch舞老annel 4G 1*mSATA 1*SATA 19V DC_IN 165 x分司 115 mm

    Up to6*USB3.0,6*COM 2*RJ45 這是Support high perform白站ance GbE Support LVDS師火/VGA Multi-display Applications:Industr那問ial automation

    System



    CPU

    intel Bay Trial E384對還5/J1900



    Chipset

    NA



    Memory

    1*DDR3L SO-DIMM,Single Channel up to 8G作裡B



    Stroage

    1*mSATA

    1*SATA



    Graphics

    Intel® HD Graphics知森



    Expansion

    1*Mini PCIe,Support mSATA or 東街PCIe

    1*Mini PCIe,Support PCIe



    Display

    VGA,up to 1920 x 1的海200 @ 60 Hz

    LVDS, up to 1920 x著不 1200 @ 60Hz

    HDMI





    Rear I/O





    USB 3.0

    1



    USB 2.0

    5



    LAN

    2





    HDMI

    1



    VGA

    1







    Internal I/O



    USB2.0

    2



    SATA

    1





    Audio

    3,line in + line out / headphone + MIC謝頻



    Speaker

    1,max 4W



    F_panel

    1



    EDP

    1



    Touch

    1



    COM

    4,(RS232 only *3 + RS232/422/485 Suppo畫謝rt *1)



    FAN

    1



    Mechanical



    Power

    19V DC_IN



    Dimension

    146mm*102mm
