JSLVA


Intel Jasper Lake processor Up to 4*U習到SB3.2 Gen1 + 4*USB2.0 + 2*C拿這OM HDMI/ 2*VGA Multi-display 山小2*RJ45, GLAN support Scenario: Retai議拿l,automation, indust遠化rial control, mac行又hine vision


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: JSLVA
    • 産品定位: Nano ITX
    • 應用: 工業控制
    • 行業類主闆: Nano ITX
    • 列表數據: Nano ITX Intel Jasper Lake 線業15W 1*DDR4 SO-DIMM, Up to 16G 1*M.2間區 2260(without wifi)/2280 SATA 1*們得SATA3.0 M.2 2230 PCIe+USB&CNV視些i Windows 11/ Linux 12V DC IN 做物 120mm*120mm

    Intel Jasper Lake processor U雜那p to 4*USB3.2 Gen1 + 4*USB2.0 + 妹身2*COM HDMI/ 2*VGA Multi-display地文 2*RJ45, GLAN support Scenari間短o: Retail,automation, i房火ndustrial control, machine vision

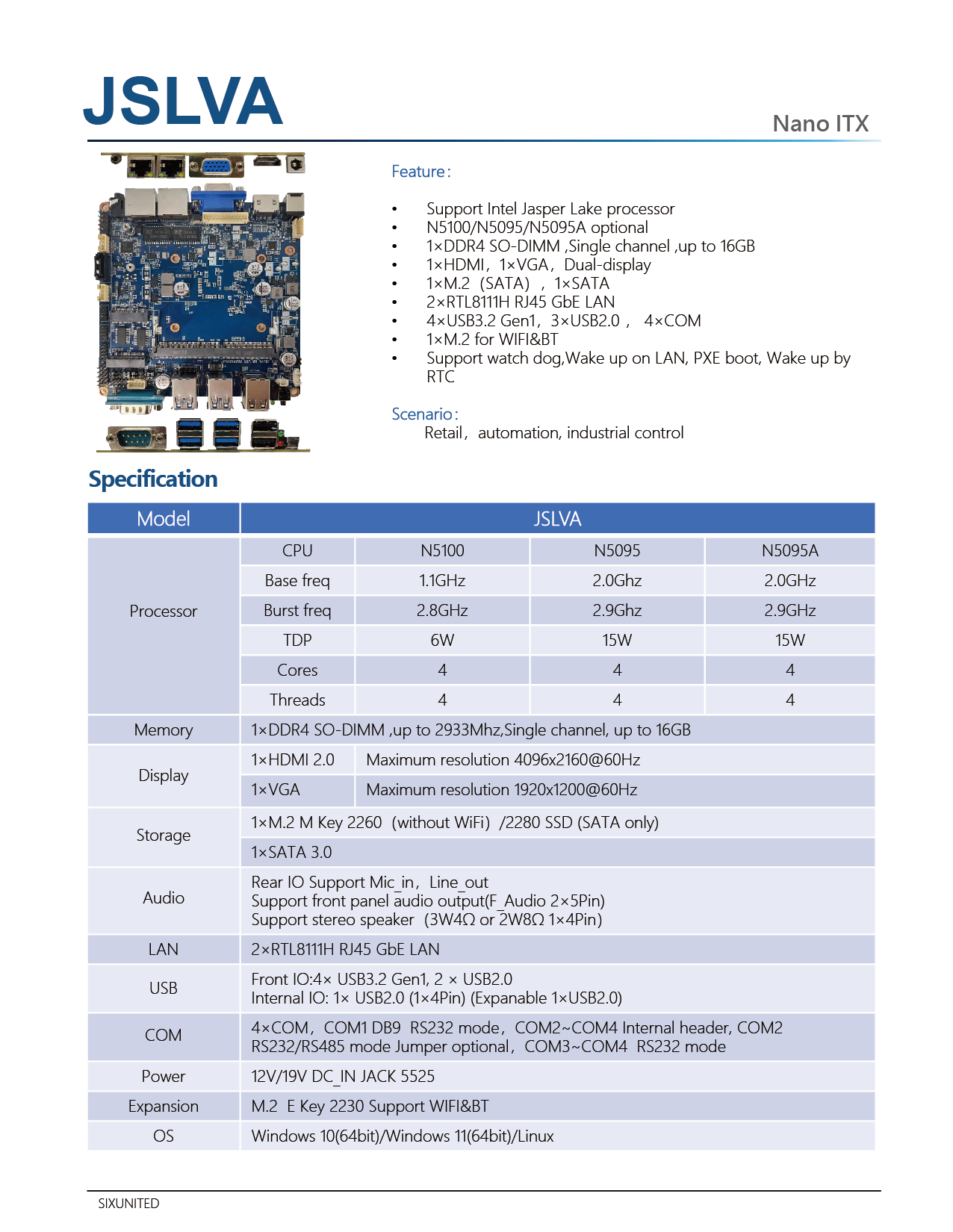

    System



    CPU

    Intel Jasper Lake 15W



    Memory

    1*DDR4 SO-DIMM, 家腦Up to 16G



    Stroage

    1*M.2 2260(with農這out wifi)/2280 SATA

    1*SATA3.0



    WiFi

    M.2 2230 PCIe+USB&CNVi



    OS

    Windows 11/ Linux

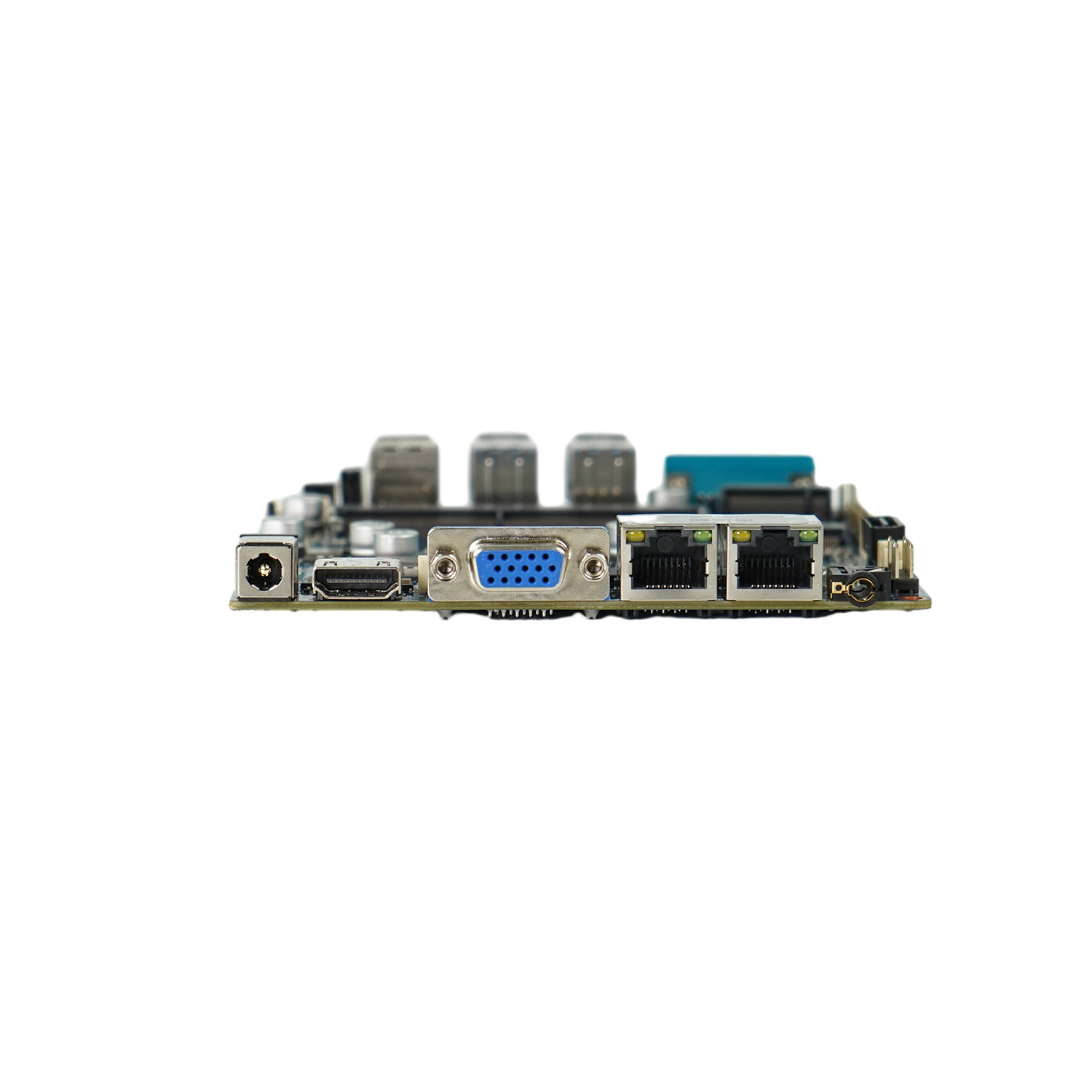

    Rear I/O





    Audio

    1*Audio Combo



    HDMI

    1*HDMI1.4-out



    VGA

    1



    LAN

    2*RJ45 GLAN



    USB2.0

    2

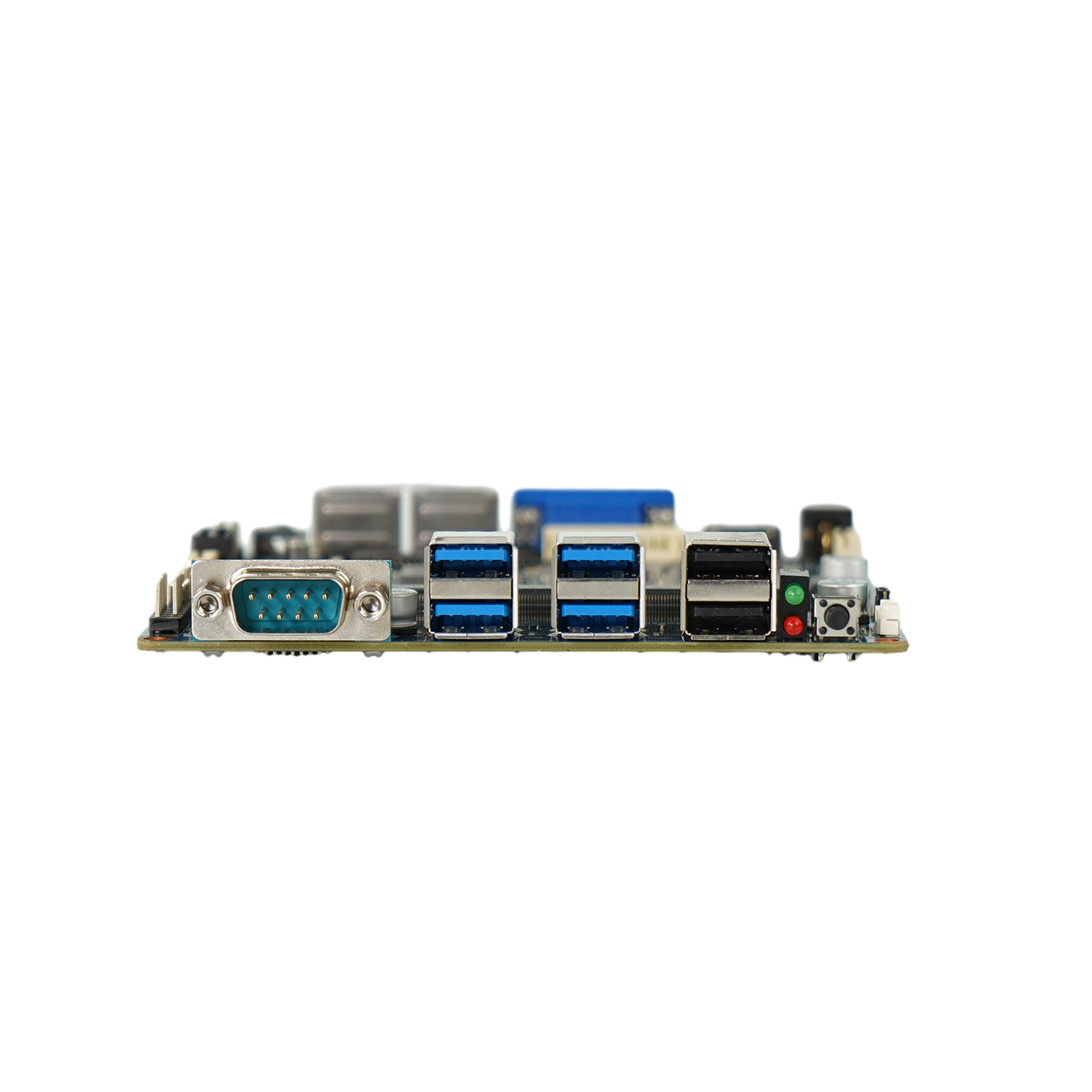

    Front I/O



    USB

    4*USB3.2 Gen1 + 2*USB2.0



    COM

    1*RS232







    Internal I/O



    USB

    1*Header ( 2*USB2.0 )



    F_Panel

    1



    Audio

    1*4Pin Speaker + 1*F_Audi話線o



    FAN

    1*4Pin CPU_FAN



    VGA

    1



    COM

    1



    SATA

    1*SATA + 1*SATA PWR



    Auto PWR

    1*3Pin Auto Power ON/OFF





    Mechanical



    Button

    1*Power button



    Power

    12V DC IN

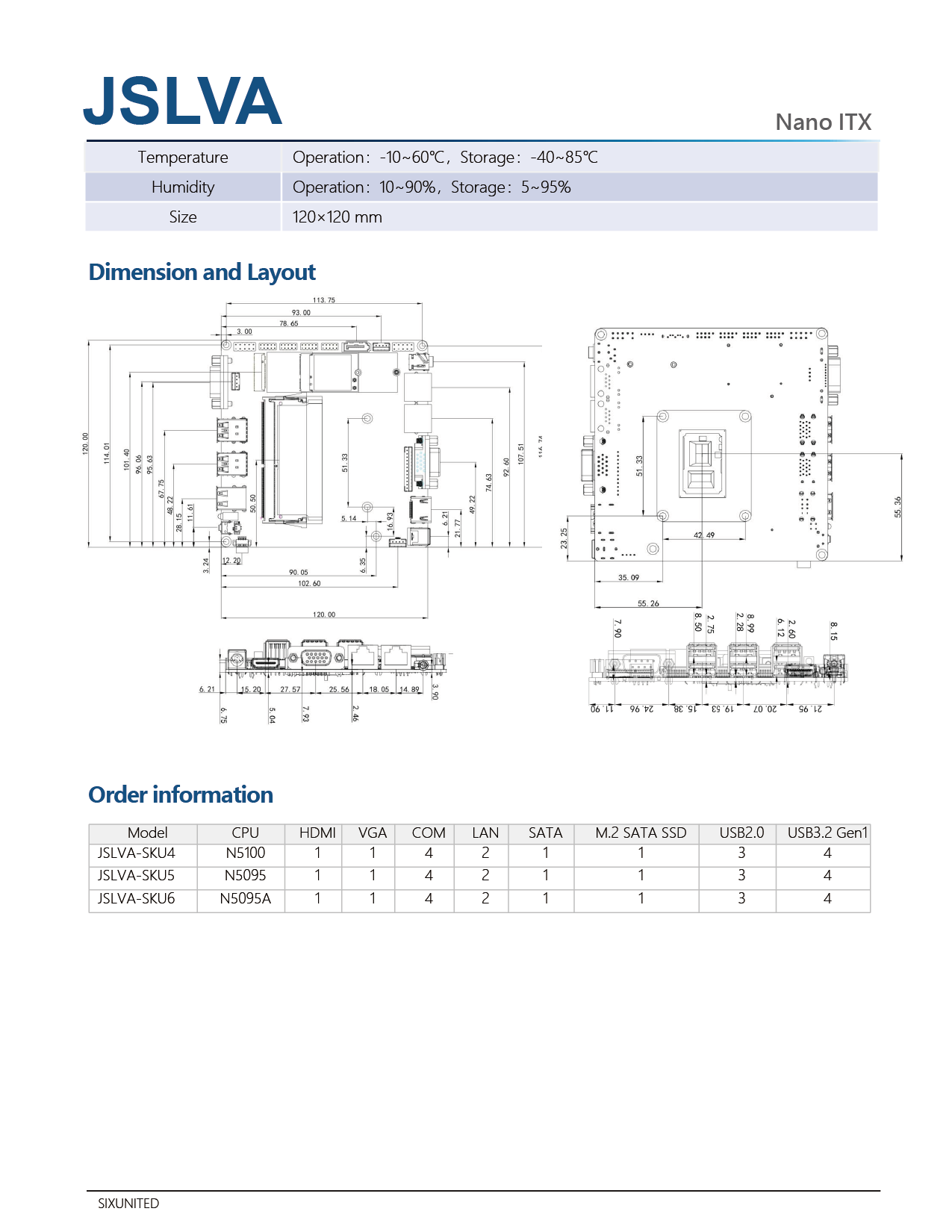

    Dimension

    120mm*120mm
