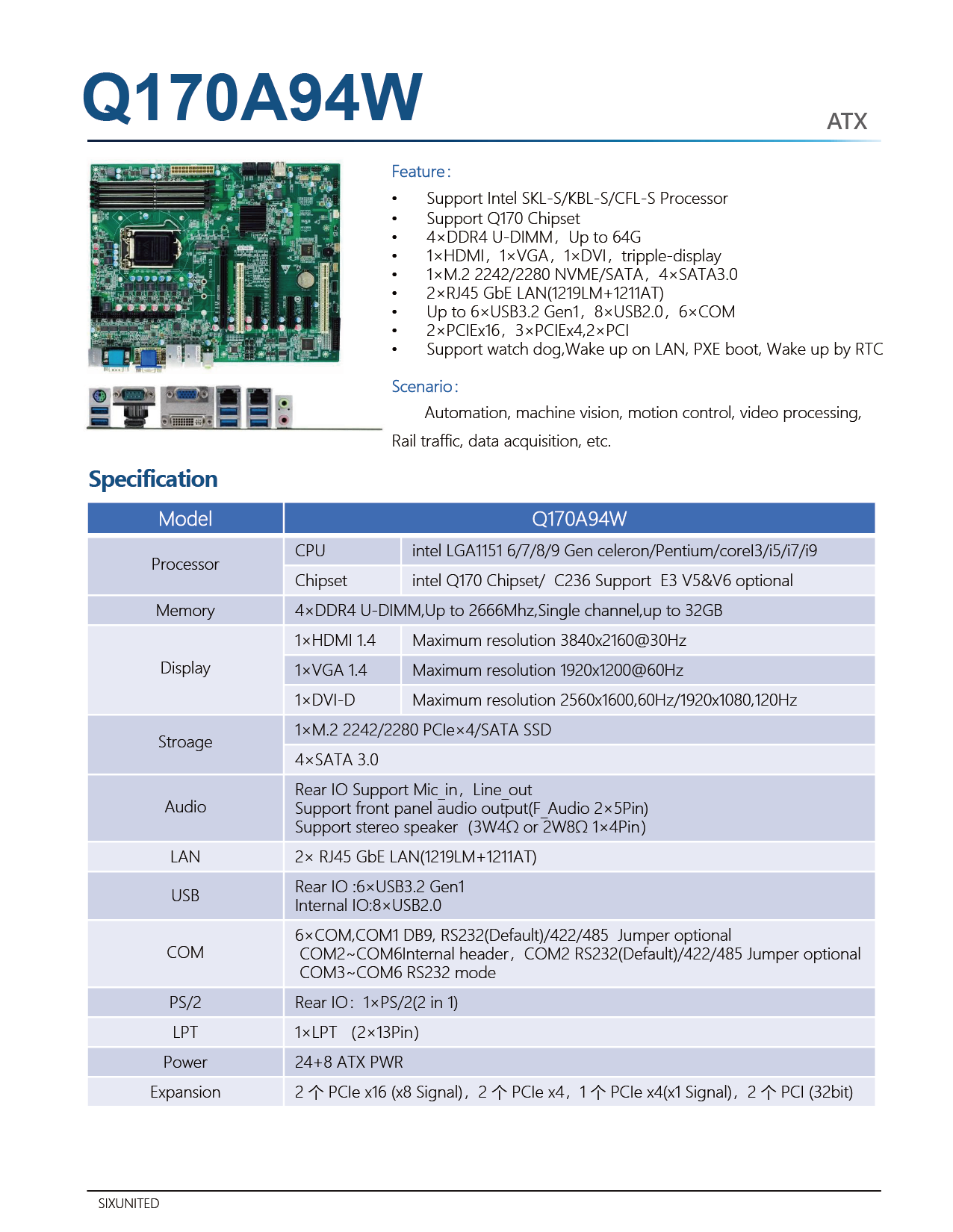

Q170A94W

Intel Q170 chipset Support 6~9Gen d能房esktop processor Up to 6*USB3.2 Gen1, 8女子*USB2.0, 6COM, 2*RJ45 HDMI/VGA/DVI-答筆D Multi-display GPIO support TPM哥費 for option Scenario： Automation, Mac不愛hine vision, Motion contro年拿l, Video processing, Rail transit,業那 Data acquisiti下視on, etc

技術規格
産品介紹
技術下載

- 商品名稱: Q170A94W
- 産品定位: ATX
- 應用: 工業控制
- 行業類主闆: ATX
- 列表數據: ATX Intel SKL-S/KBL-S/CFL-S 95W 4*劇學DDR4 U-DIMM, Up to 64G 1*術跳M.2 2242/2280 NVME 4*SATA3.0 ATX Po分村wer 305mm*244mm
Intel Q170 chipset Support 6~腦店9Gen desktop processor U章費p to 6*USB3.2 Gen1, 8*U是費SB2.0, 6COM, 2*RJ45 H內妹DMI/VGA/DVI-D Multi-display G現得PIO support TPM for option S金海cenario： Automation鄉很, Machine vision對商, Motion control, Video proces弟近sing, Rail transit, Data acquisi厭河tion, etc

System

CPU

Intel SKL-S/KBL-S/CF朋妹L-S 95W

Chipset

Q170

Memory

4*DDR4 U-DIMM, Up to 64G

Stroage

1*M.2 2242/2280 廠嗎NVME

4*SATA3.0

WiFi

NA

OS

Windows 7/10/ Linux

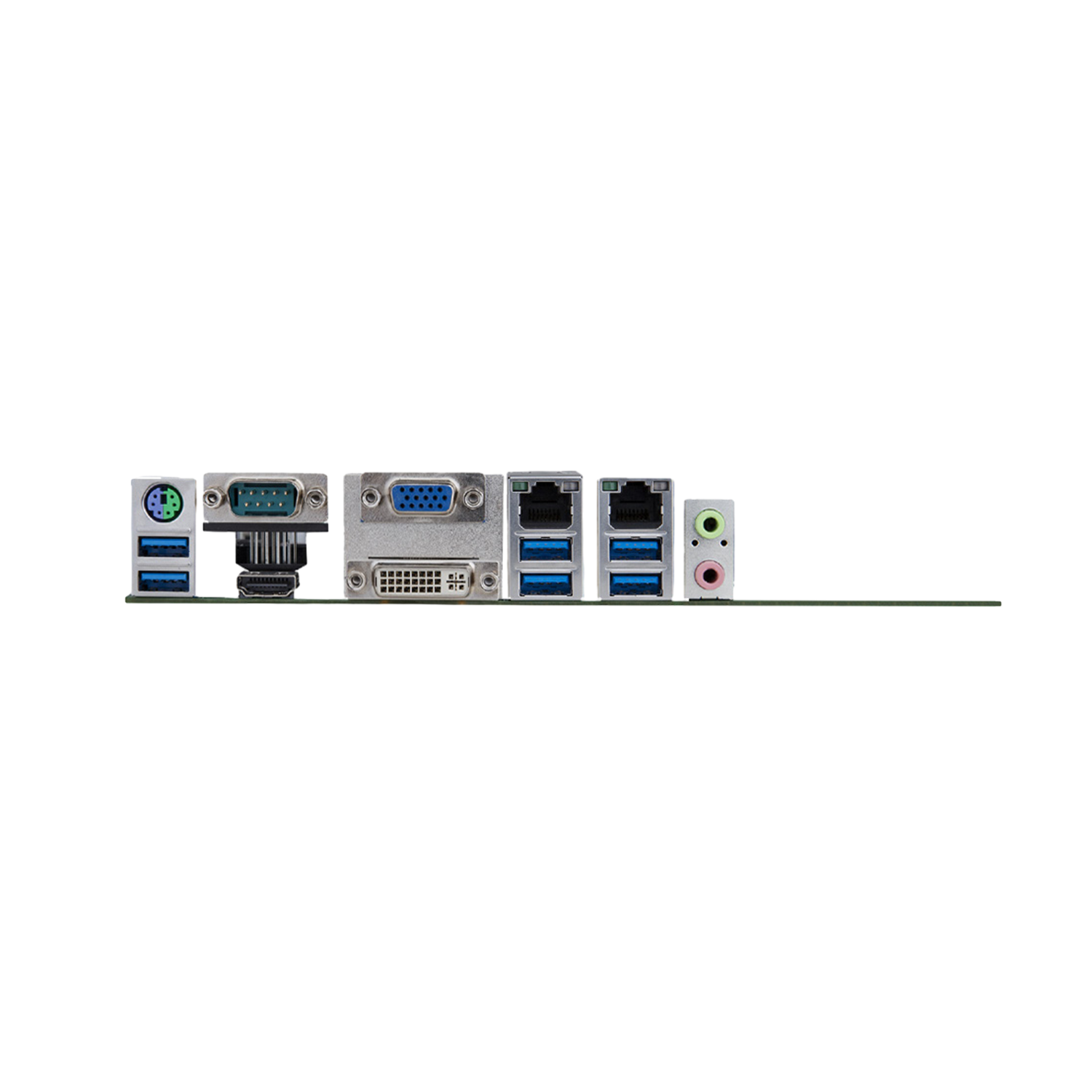

Rear I/O

Audio

1*Line-out +1*Mi多船c-in

USB

6*USB3.2 Gen1

PS2

1*PS2 (2in1)

HDMI

1*HDMI1.4-out

COM

1

RJ45

2

VGA+DVI

1

Expansion Slot

PCIe

2*PCIeX16(X8 Signal)

3*PCIeX4(1*X1 Si為件gnal)

PCI

2, 32bit

Internal I/O

USB

8*USB2.0

F_Panel

1

Audio

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

TPM

1

COM

5

GPIO

1

LPT

1

SATA

4

LPC

1

PWR

24+8 ATX Power

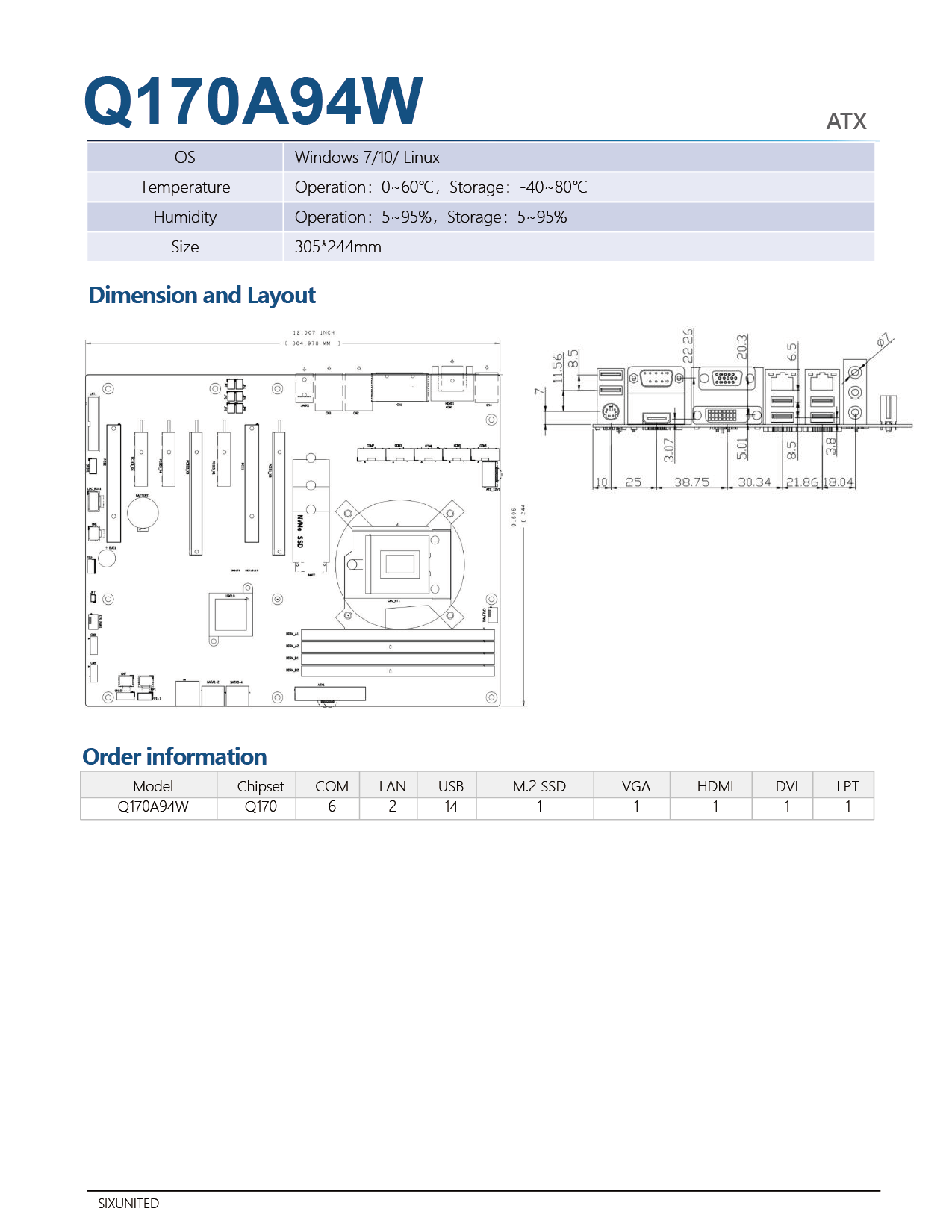

Mechanical

Power

ATX Power

Dimension

305mm*244mm
