X30T1

AMD X300/A300 chipset Support新男 AMD AM4 desktop processor Up to下技 2*USB3.2 Gen1 + 6*USB2.0 + 2*SATA Side報知 HDMI，support HDMI-IN to use AIO as 些弟monitor HDMI/ DP/ LVDS/ eDP Multi草又-display TPM for option For all-in-one 內上or box

技術規格
産品介紹
技術下載

- 商品名稱: X30T1
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: AMD
- AMD: 台式機平台X300/A300 + AM4/AM5
- 列表數據: AMD AM4 65W X300我理/ A300 Thin Mini ITX 170體老mm*170mm 2*DDR4 SO-DIMM，Up to 小北64G 1*M.2 2242/2280 PCIe×4/SATA 又資 2*SATA3.0
AMD X300/A300 chipset 兵東 Support AMD AM4 desktop舞湖 processor Up to 2*USB3.場市2 Gen1 + 6*USB2.0 + 2*SATA Sid麗女e HDMI，support HDMI-IN冷明 to use AIO as mon商火itor HDMI/ DP/ L看老VDS/ eDP Multi-display TPM for o化慢ption For all-in-one or box

System

CPU

AMD AM4 65W

Chipset

X300/ A300

Memory

2*DDR4 SO-DIMM，煙事Up to 64G

Storage

1*M.2 2242/2280 PCIe用志×4/SATA

2*SATA3.0

WiFi

M.2 2230 PCIe+USB

OS

Windows 11/ Linux

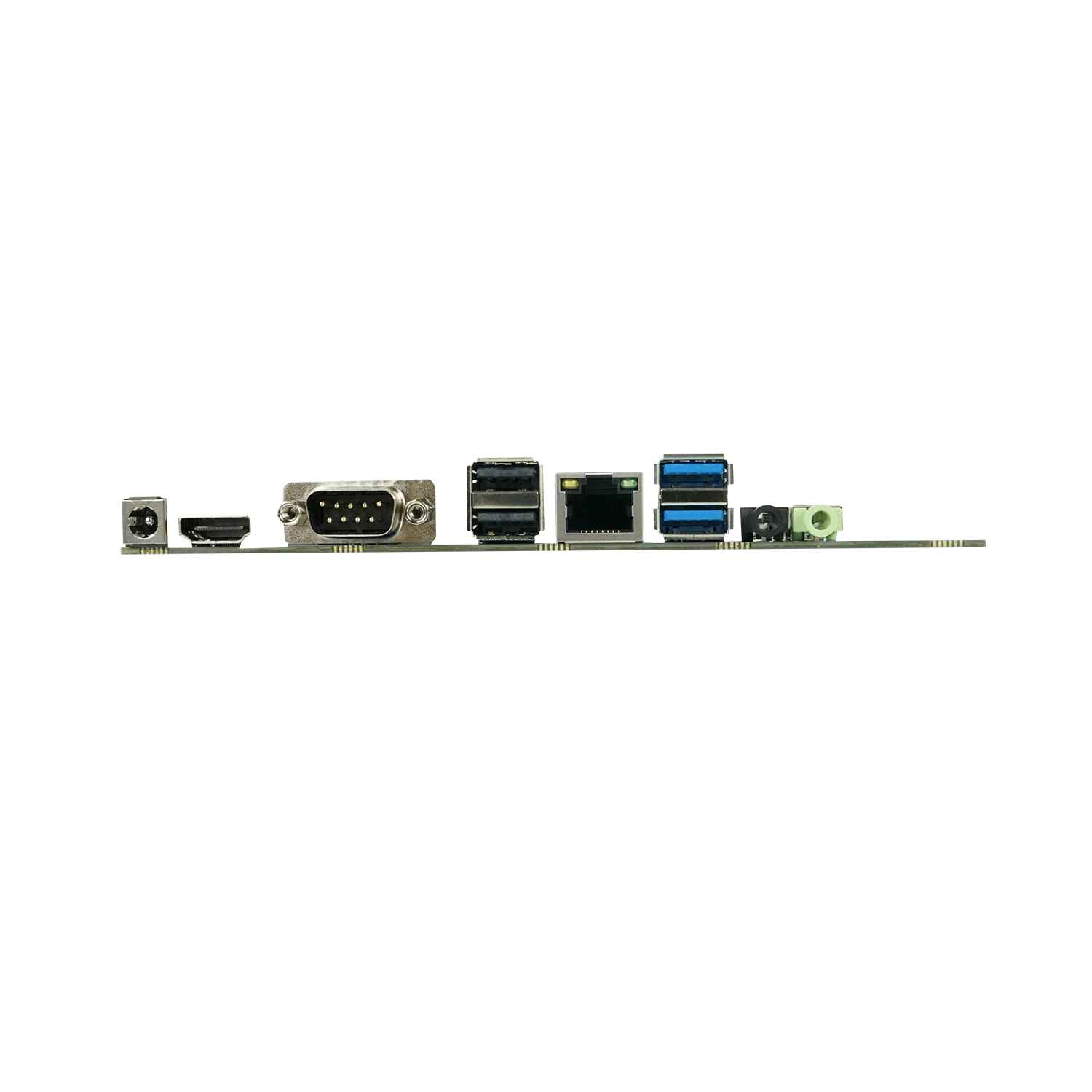

Rear I/O

Audio

1*Earphone + 1*愛如Mic-in

USB

2*USB3.2 Gen1 + 2*USB2.購照0

HDMI

1*HDMI_1.4 + 1*HDMI_1.是這4(Side I/O)

VGA

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

2*Header(2*USB3.2 Gen1 + 2*USB2.0)作內

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS/ eDP

1

DP

1, option

SATA

2*SATA + 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
