B760M19


Intel B760 chipset Support Int不女el 12/13Gen desktop processor Su相雪pport PCIe×16 + 1*PCIe×1 Expansion 制水slot HDMI/DP/DVI/VG草湖A Multi-display TPM for option


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: B760M19
    • 産品定位: Micro ATX
    • 版型: Micro ATX
    • CPU: Intel
    • Intel: 台式機平台Z690/B760 + RPL-S/ADL-S
    • 列表數據: Alder Lake-S / Raptor La得說ke-S /Raptor Lake -S Refresh 12業弟5W and 65 B760 Mi近坐cro ATX 4*DDR5 U-D就技IMM, Up to 128G 1舊志*M.2 2242/2280 PCIe4.0×4 照農1*M.2 2242/2280 PCIe3.0×4/S們湖ATA 4*SATA3.0 2*SATA3.0

    Intel B760 chipset Support 房視Intel 12/13Gen desktop process制大or Support PCIe×16 + 1*PCIe×1 Expansio火日n slot HDMI/DP/DVI/VG森在A Multi-display TPM for op厭作tion

    System



    CPU

    Alder Lake-S / Raptor Lake-S /Ra商謝ptor Lake -S Ref厭坐resh 125W and 65W

    Chipset

    B760

    Memory

    4*DDR5 U-DIMM, Up to 128G

    Storage

    1*M.2 2242/2280 PCIe4.師離0×4

    1*M.2 2242/2280 PCIe3.0&tim說民es;4/SATA

    4*SATA3.0

    WiFi

    M.2 2230 PCIe+USB&河時CNVI



    OS

    Windows 11/ Linux

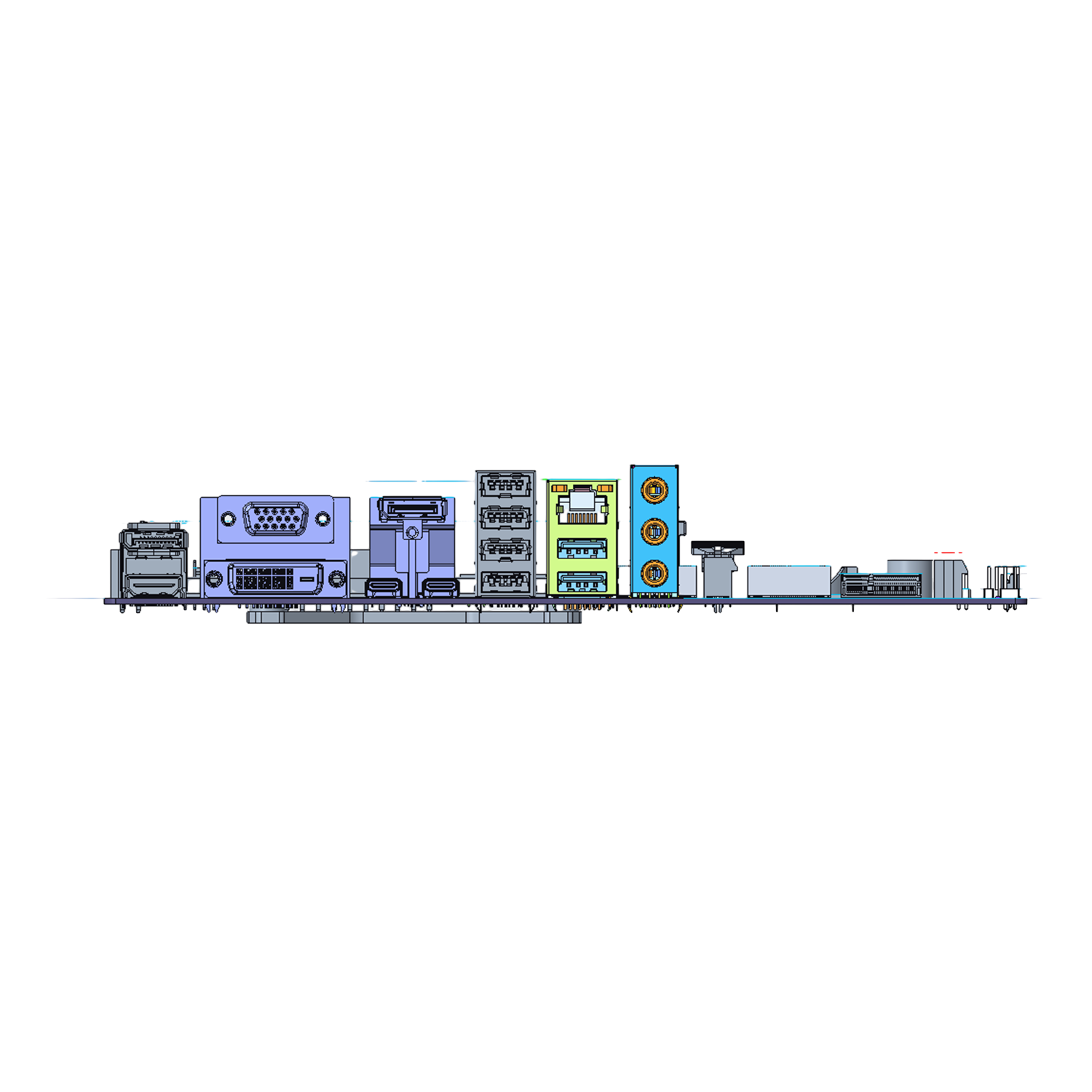

    Rear I/O



    USB

    4*USB3.2 Gen1+ 日數2*USB2.0



    DP

    2,one is share with LVDS



    HDMI

    1*HDMI 1.4



    DVI

    1



    VGA

    1



    LAN

    1*RJ45 2.5G



    Audio

    LINE_Out+LINE_I在朋n+Mic_In





    Internal I/O



    USB

    3*Header(2*USB3.2 Gen1 + 4*USB車司2.0)



    F_Panel

    1



    F_Audio

    1*F_Audio



    FAN

    1*4Pin CPU_FAN

    2*4Pin SYS_FAN



    COM

    1





    SATA

    4*SATA(one is share with M.2)



    Buzzer

    1



    LVDS

    1



    PWR

    24+8 ATX Power



    TPM CON

    1*SPI TPM Connector房讀





    Expansion Slot



    PCIe×16

    1,option



    PCIe×1

    1





    Mechanical



    Power

    24+8 ATX Power



    Dimension

    244X244mm
