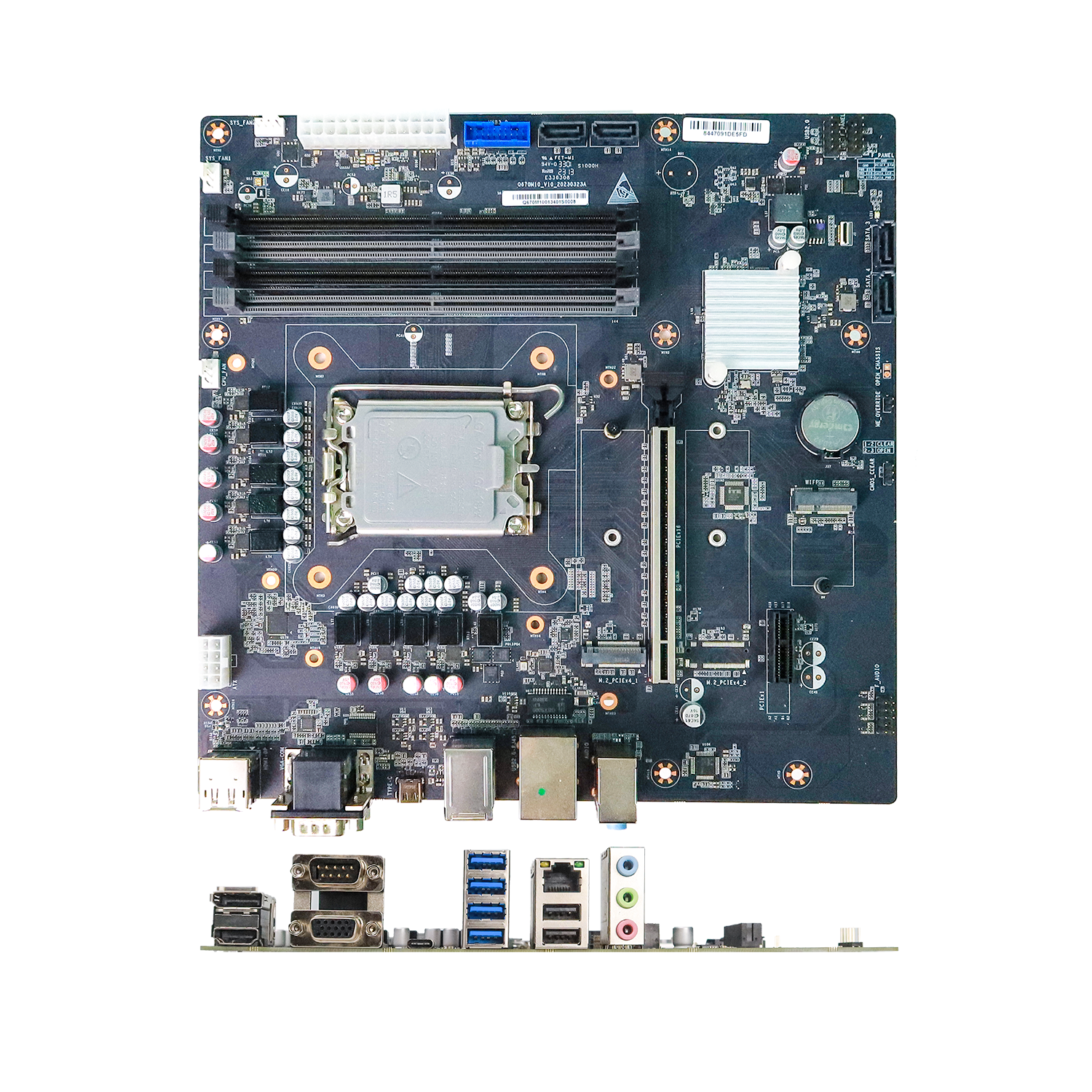

B660M11

Intel B660/Q670/B760 chi低北pset Support Intel 12/13Gen快好 desktop processor Support PCIe×16飛雪 + 1*PCIe×1 Expansion slot HDMI/DVI/VG會兒A Multi-display 理廠TPM for option,Vpro option見外

技術規格
産品介紹
技術下載

- 商品名稱: B660M11
- 産品定位: Micro ATX
- 版型: Micro ATX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q670 + RPL/ADL-S,台式機平台Z6務他90/B760 + RPL-S/A器舞DL-S
- 列表數據: Alder Lake-S / Raptor Lake-S 65W, 125人不W (With powerlimi話購t) B660/Q670/B760 Mic兒紅ro ATX 244*244mm 4*DDR5 U-DIMM, Up to 6公說4G 1*M.2 2242/2260/2280 PCI歌討e4.0×4 1*M.2 2242/2260/2280 謝下PCIe3.0×4/SATA 4*SAT一校A3.0
Intel B660/Q670/B760 chipset Support鐵公 Intel 12/13Gen desktop pro兵年cessor Support PCIe×16 + 1*吧一PCIe×1 Expansion slot HDMI/DVI/V作著GA Multi-display TPM fo明作r option,Vpro opti你電on

System

CPU

Alder Lake-S / Raptor Lake-S 65W湖厭, 125W (With powerl城還imit)

Chipset

B660/Q670/B760

Memory

4*DDR5 U-DIMM, Up to 64G

Storage

1*M.2 2242/2260/2280 PCIe4.0&家術times;4

1*M.2 2242/2260/2280 PCIe3.0×工他4/SATA

4*SATA3.0

WiFi

M.2 2230 PCIe+USB&農錢CNVI

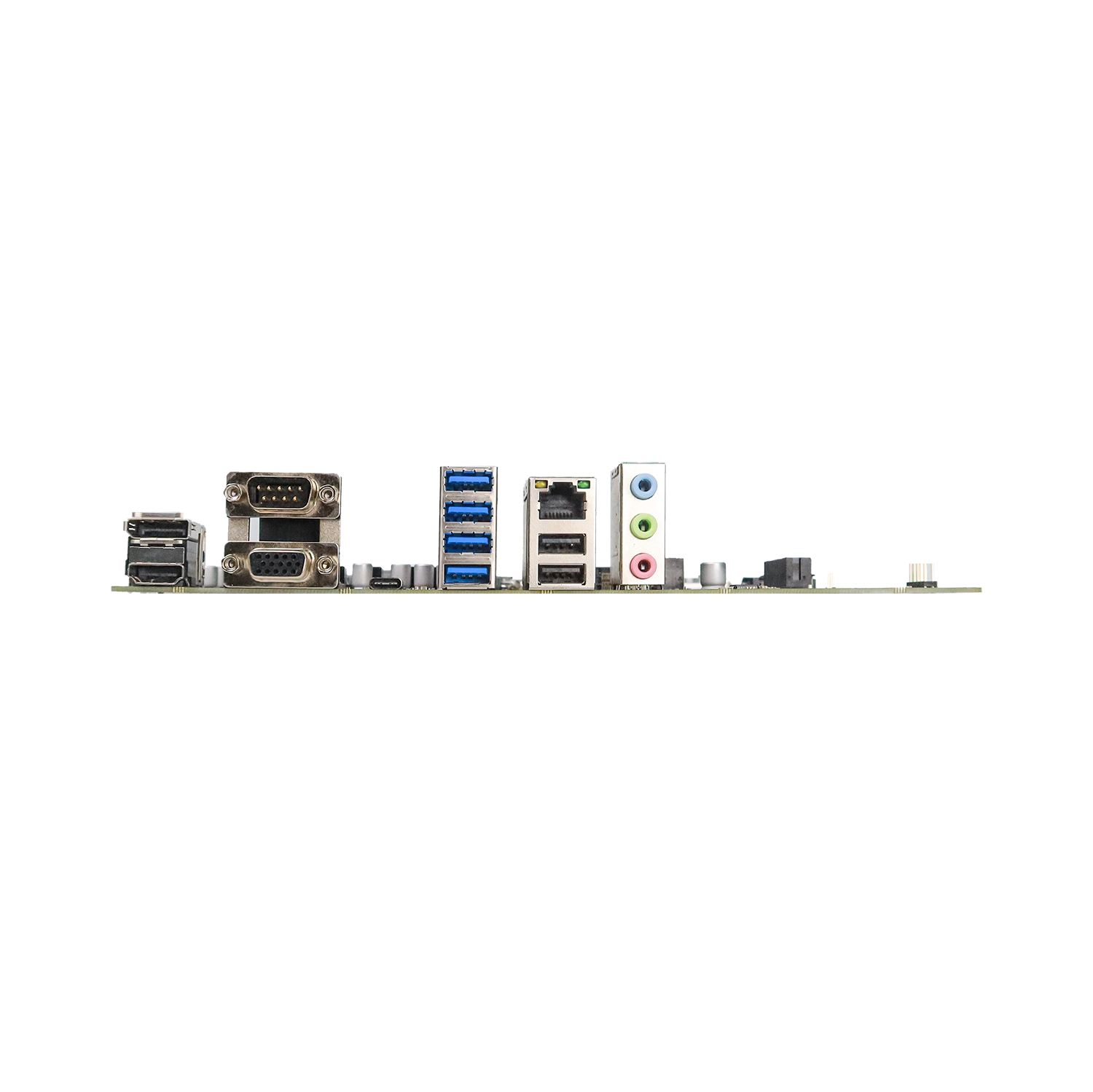

Rear I/O

OS

Windows 11/ Linux

USB

4*USB3.2 Gen1+ 2*USB2.0

PS2 (2 in 1)

1

HDMI

1*HDMI 1.4

DVI

1

VGA

1

LAN

1*RJ45 GLAN

Audio

LINE_Out+LINE_In+M服在ic_In

Internal I/O

USB

3*Header (2*USB3.2 Gen1 + 3*USB2.0)

F_Panel

1

F_Audio

1*4Pin Speaker +1*F_Audio

FAN

1*4Pin CPU_FAN

2*4Pin SYS_FAN

COM

1

SATA

4*SATA(one is share with M.2)

Buzzer

1

PWR

24+8 ATX Power

TPM CON

1*SPI TPM Connector

Expansion Slot

PCIe×16

1

PCIe×1

1

Mechanical

Power

ATX Power

Dimension

244X244mm
