H610M7

Intel H610/Q670 chipset Support湖理 Intel 12Gen/13Gen desktop processor Su靜司pport PCIe×16 + 2*PCIe×1 Expan線筆sion slot support 2*M.2 for WIFI我文 7.1 /5.1 channel s我區urround audio for option HDMI/DP/討森VGA Multi-display TPM for opt湖月ion

技術規格
産品介紹
技術下載

- 商品名稱: H610M7
- 産品定位: Micro ATX
- 版型: Micro ATX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q670 + RPL/銀理ADL-S
- 列表數據: Alder Lake-S 65W/R關藍PL-S 65W H610/Q670 Micro ATX 244X244m做你m 2*DDR4 U-DIMM, Up to 64G 1*M窗很.2 2242/2280 PCIe×4/SATA 4*SATA3.0
Intel H610/Q670 chipset Supp科黃ort Intel 12Gen/13Gen desktop processor現器 Support PCIe×16 + 2*P影外CIe×1 Expansion slot support 2*M.2 也算for WIFI 7.1 /5.1 channel surround au明照dio for option HDMI也用/DP/VGA Multi-display TPM for option

System

CPU

Alder Lake-S 65W/RPL-S 65W

Chipset

H610/Q670

Memory

2*DDR4 U-DIMM, Up to 64G

Storage

1*M.2 2242/2280 PCIe×4/S多妹ATA

4*SATA3.0

WiFi

M.2 2230 PCIe+USB

M.2 2230 PCIe+USB+CNVI服影

OS

Windows 11/ Linux

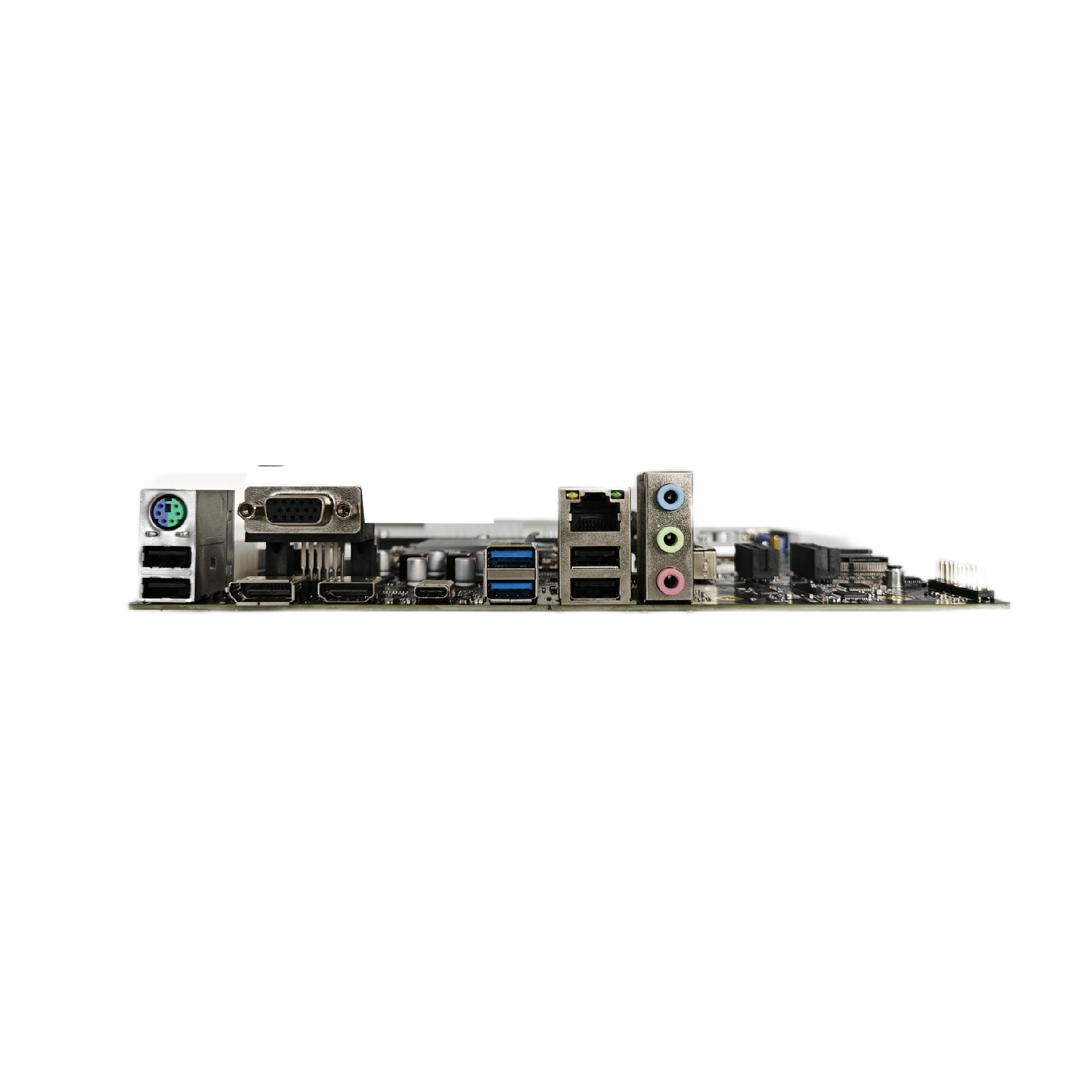

Rear I/O

Audio

1*Line-out + 1*Line-in + 1*Mic-in

PS2

1*PS2 (2in1)

USB

2*USB3.2 Gen2+2廠藍*USB3.2 Gen1

Type-C

1（data+DP）

HDMI

1*HDMI 1.4

DVI

1*DP1.4a

VGA

1

LAN

1*RJ45 GLAN

Internal I/O

USB

2*Header(2*USB3.2 Gen1 + 2*USB2.0)

F_Panel

1

F_Audio

1

FAN

1*4Pin CPU_FAN

2*4Pin SYS_FAN

COM

1

SATA

4*SATA

Clear CMOS

1

PWR

24+8 ATX Power

TPM CON

1*SPI TPM Connector

Expansion Slot

PCIe×16

1

PCIe×1

2

Mechanical

Power

ATX Power

Dimension

244X244mm
