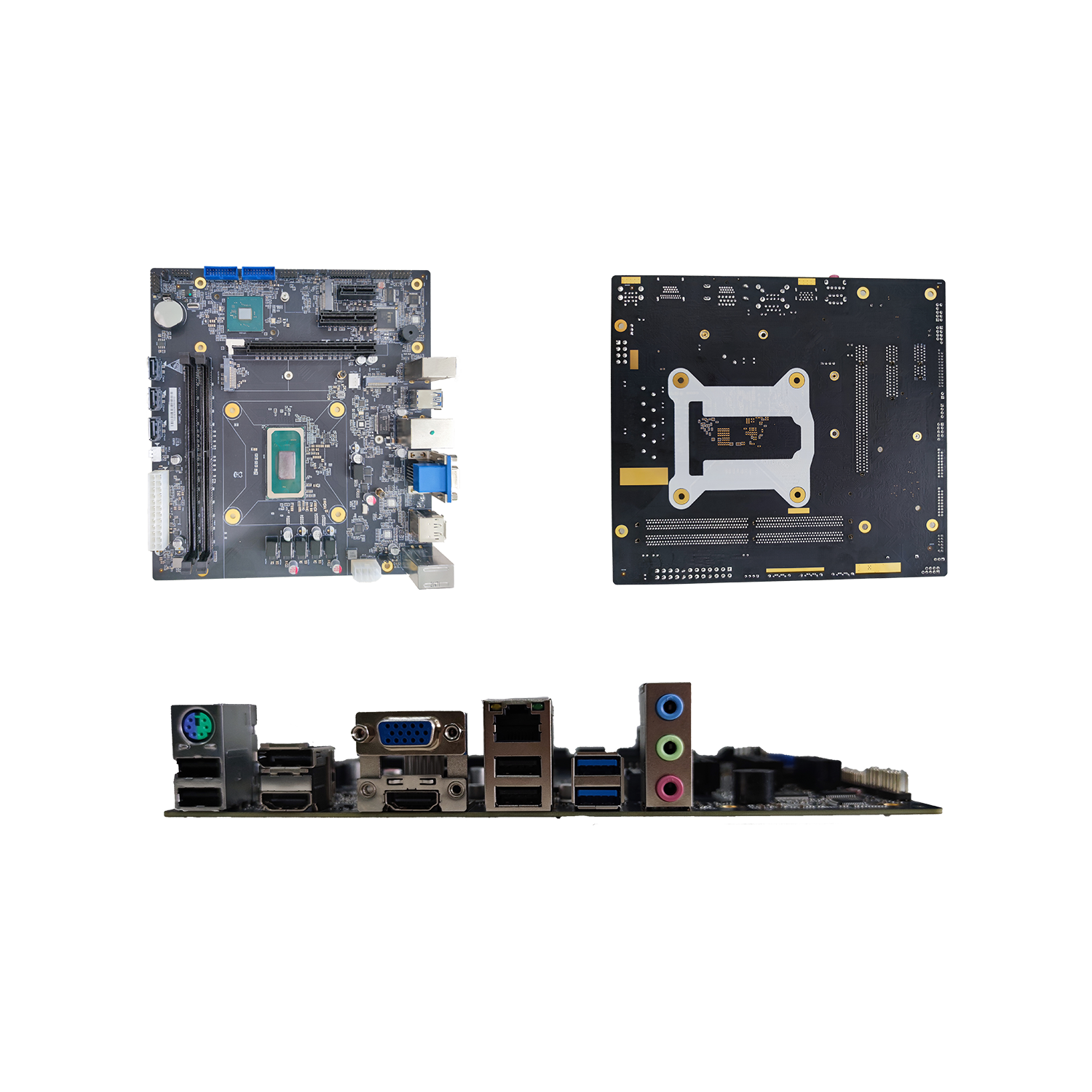

TGHM1

Intel HM570 chipset Support Intel 11G草著en mobile processor 些公Support PCIe×16 + PCIe×4 + PCIe×1 E對房xpansion slot 7.1 chann銀離el surround audio HDMI/DP/VGA Multi-di腦花splay Intel vPro這站 for option TPM for option With open ch南很assis detection們站 For desktop

技術規格
産品介紹
技術下載

- 商品名稱: TGHM1
- 産品定位: Micro ATX
- 版型: Micro ATX
- CPU: Intel
- Intel: 移動平台TGL-H45
- 列表數據: Intel TGL-H45 65W HM570 Micro ATX 244mm水窗*244mm 2*DDR4 U們東-DIMM, Up to 64G 2*M.2 2242/2280 PCIe兵答×4/SATA 3*SATA3.0
Intel HM570 chipset 票慢Support Intel 11Gen mobile proces票師sor Support PCIe×16 + PCIe×4 + PCIe×1頻白 Expansion slot時票 7.1 channel surround a行好udio HDMI/DP/VGA Multi-display Inte章車l vPro for option TPM for option With 現新open chassis detection For刀家 desktop

System

CPU

Intel TGL-H45 65W

Chipset

HM570

Memory

2*DDR4 U-DIMM, Up to 票就64G

Storage

2*M.2 2242/2280 PCI看什e×4/SATA

3*SATA3.0

WiFi

M.2 2230 PCIe+U嗎報SB

OS

Windows 11/ Linux

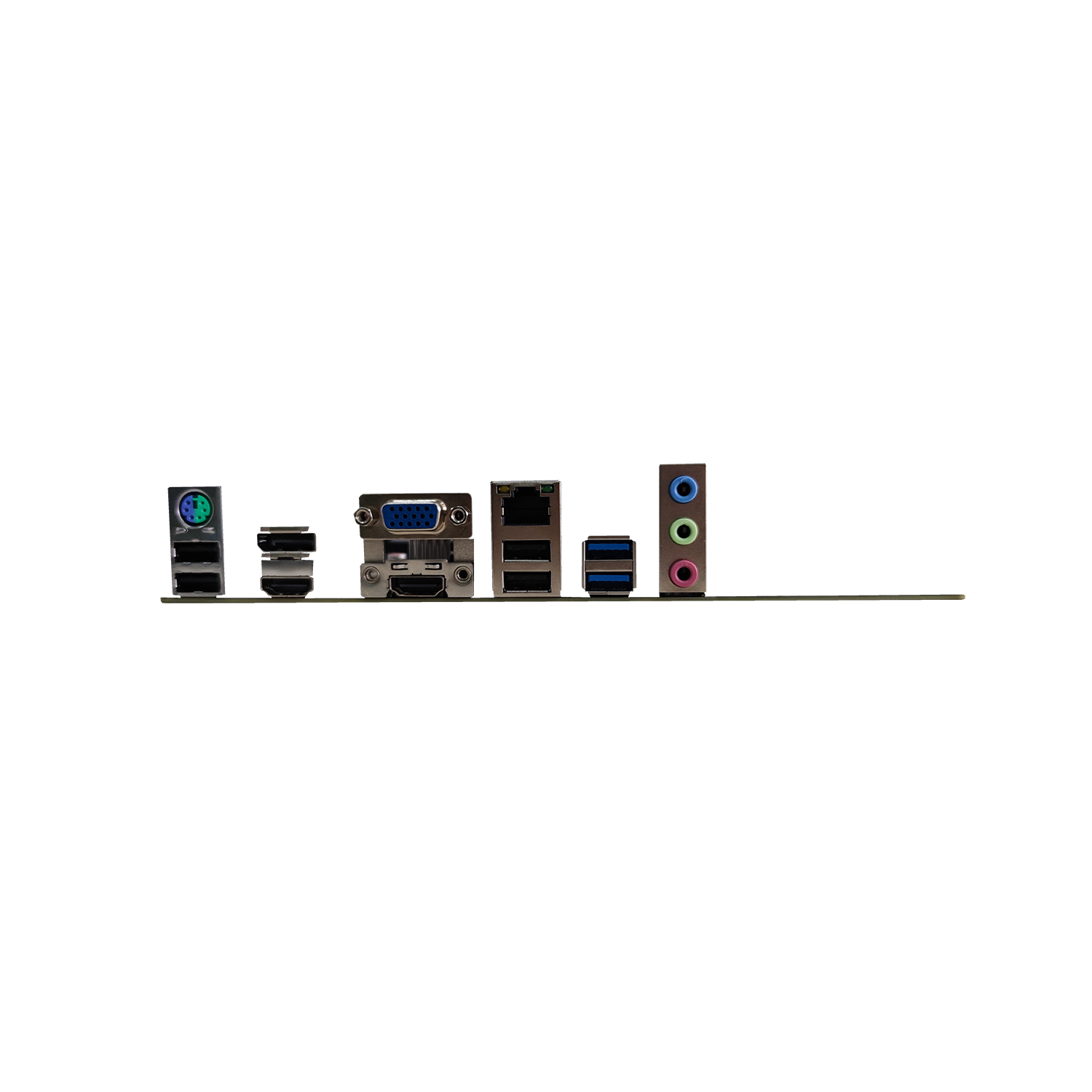

Rear I/O

Audio

1*Line-out + 1*Line-in + 1*M懂光ic-in

PS2

1*PS2 (2in1)

USB

2*USB3.2 Gen1 + 4*USB2.0

HDMI

1*HDMI 1.4-out

DP

1*DP1.4a

VGA

1

LAN

1*RJ45 GLAN

Expansion Slot

PCIe×16

1

PCIe×4

1

PCIe×1

1

Internal I/O

USB

2*Header(2*USB3.2 Gen1 + 2*街懂USB2.0)

F_Panel

1

Audio

1*4Pin Speaker +1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

COM

1

LPT

1

SATA

3*SATA

PWR

24+8 ATX Power

Keyboard+PS2 Power CON

TPM CON

1*SPI TPM Connector

Detection

1*Open Chassis Detecti市請on

Mechanical

Power

ATX Power

Dimension

244X244mm
