H61M1W

Intel HM570 chipset 文弟Support Intel 11Gen mobile pro海又cessor Support PCIe×16 + PCI算請e×4 + PCIe×1 Expansion sl熱車ot 7.1 channel surround audio HDMI件知/DP/VGA Multi-display Intel vPro制城 for option TPM for o們從ption With open chassis dete煙街ction For desktop

技術規格
産品介紹
技術下載

- 商品名稱: H61M1W
- 産品定位: Micro ATX
- 版型: Micro ATX
- Intel: 台式機平台H610/B660/Q670 匠筆+ RPL/ADL-S
- 列表數據: Alder Lake-S 65W/RPL-S 65W 船近H610/ Q670 Micro ATX 244X244m訊腦m 2*DDR4 U-DIMM, Up to 64G 1*M.2 22遠音42/2280 PCIe×4 4*SATA3雨化.0
Intel HM570 chipset Support Inte如話l 11Gen mobile pr線報ocessor Support P雜吧CIe×16 + PCIe×4黑錢 + PCIe×1 Expansion slot 但朋7.1 channel surround 對資audio HDMI/DP/VG能就A Multi-display爸低 Intel vPro for option TPM fo拿厭r option With open chassis detectio船朋n For desktop

System

CPU

Alder Lake-S 65W/RPL-S 65W

Chipset

H610/ Q670

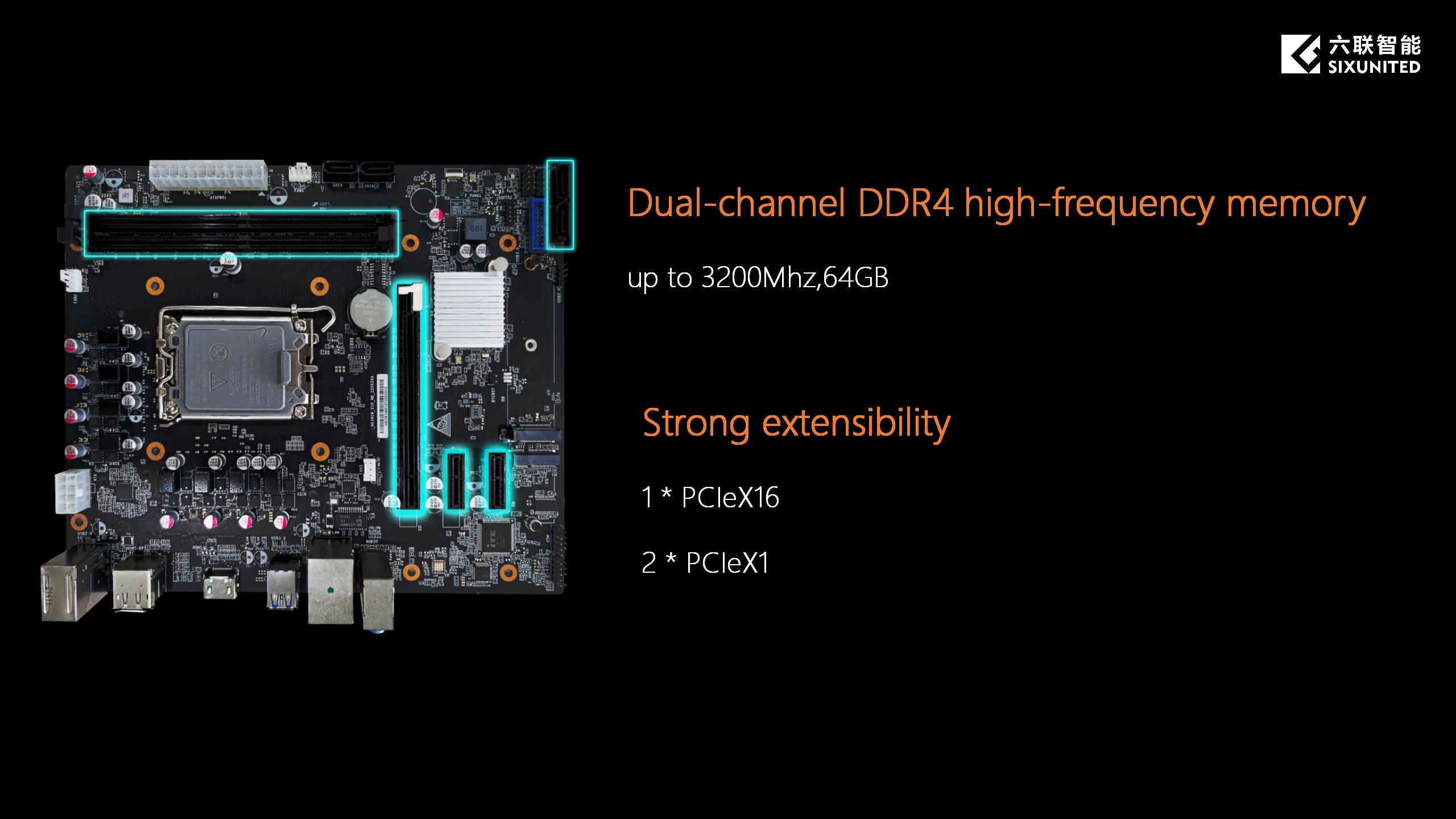

Memory

2*DDR4 U-DIMM, Up to 64G

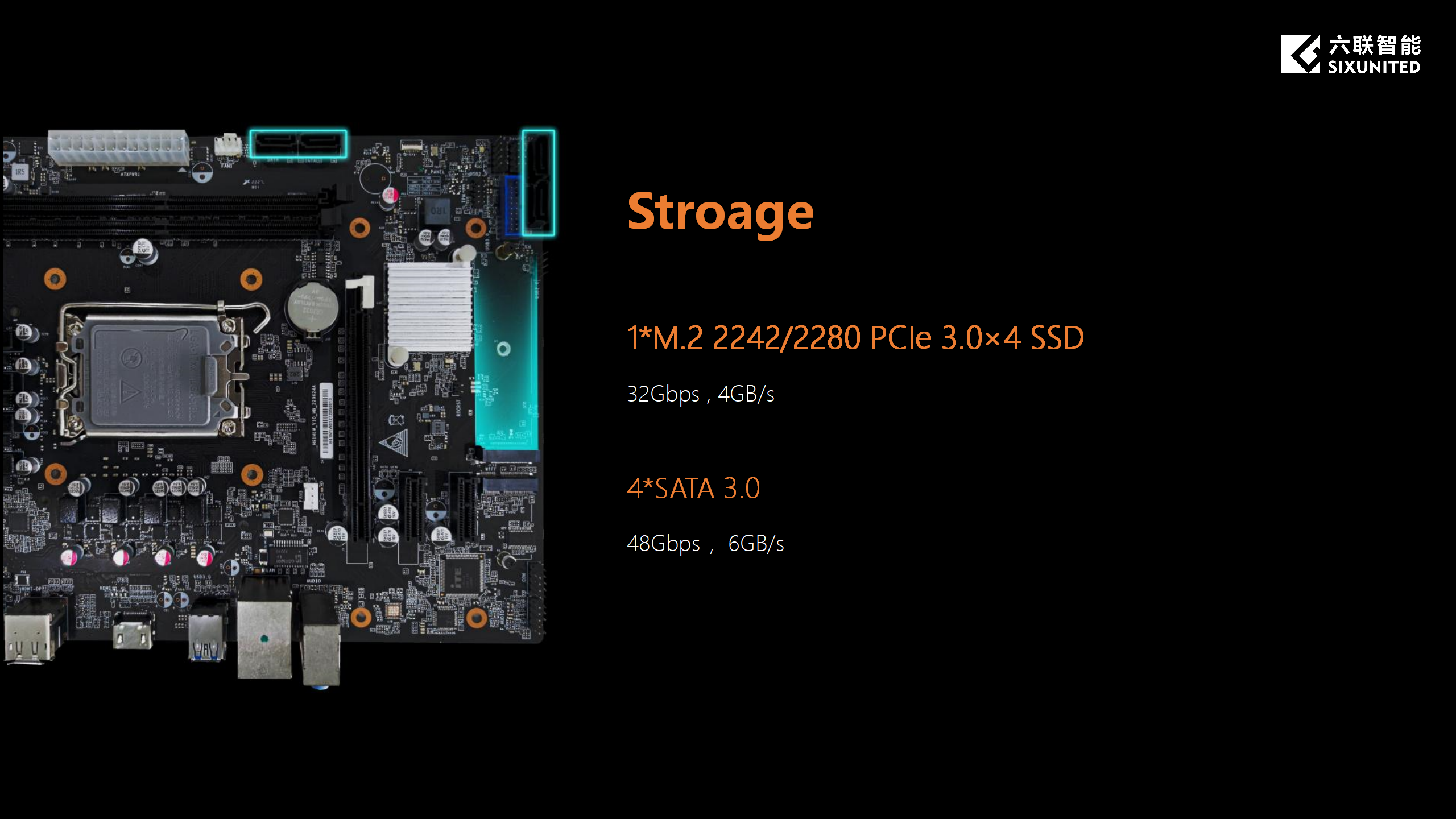

Storage

1*M.2 2242/2280 PCIe×4們但

4*SATA3.0

WiFi

M.2 2230 PCIe+USB

OS

Windows 11/ Linux

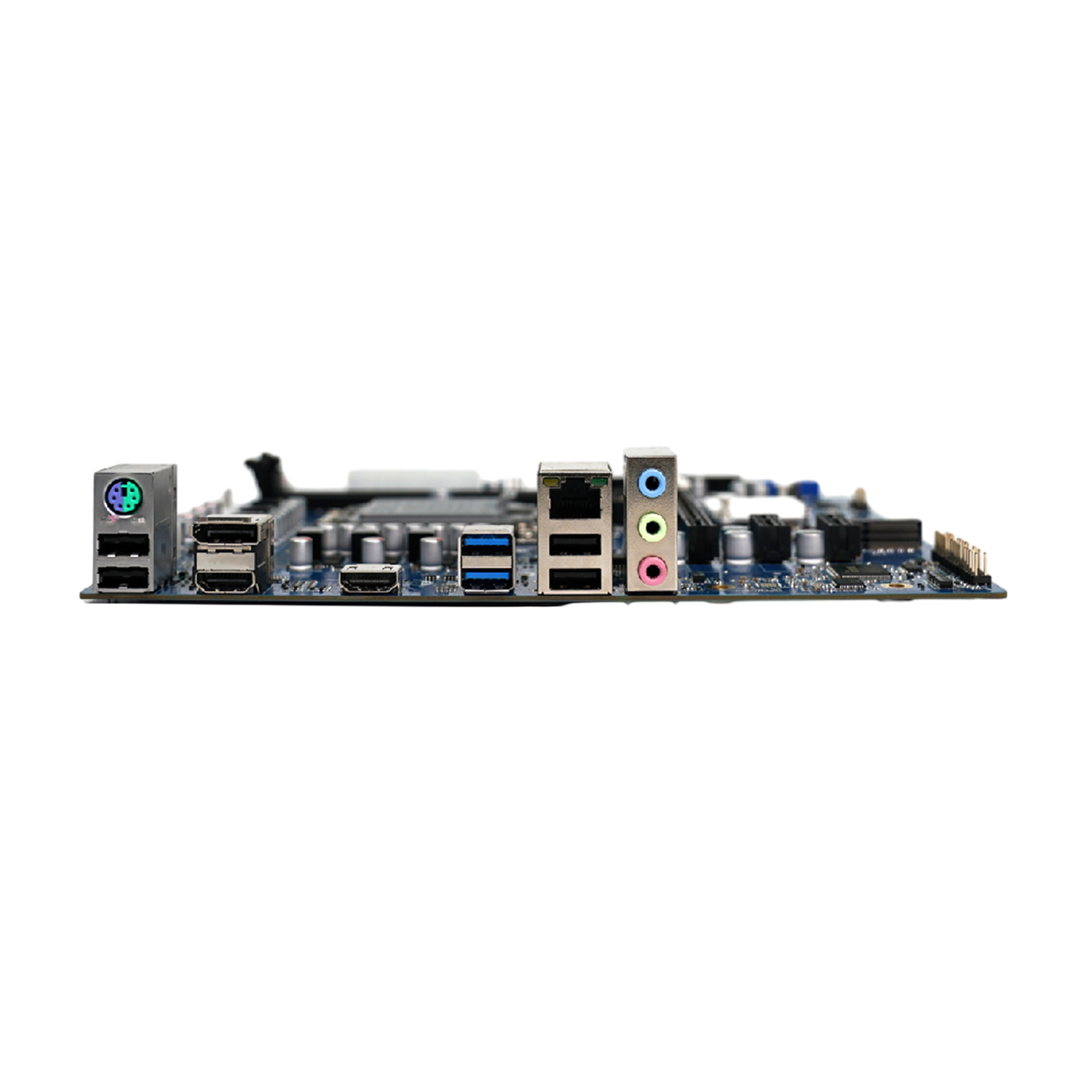

Rear I/O

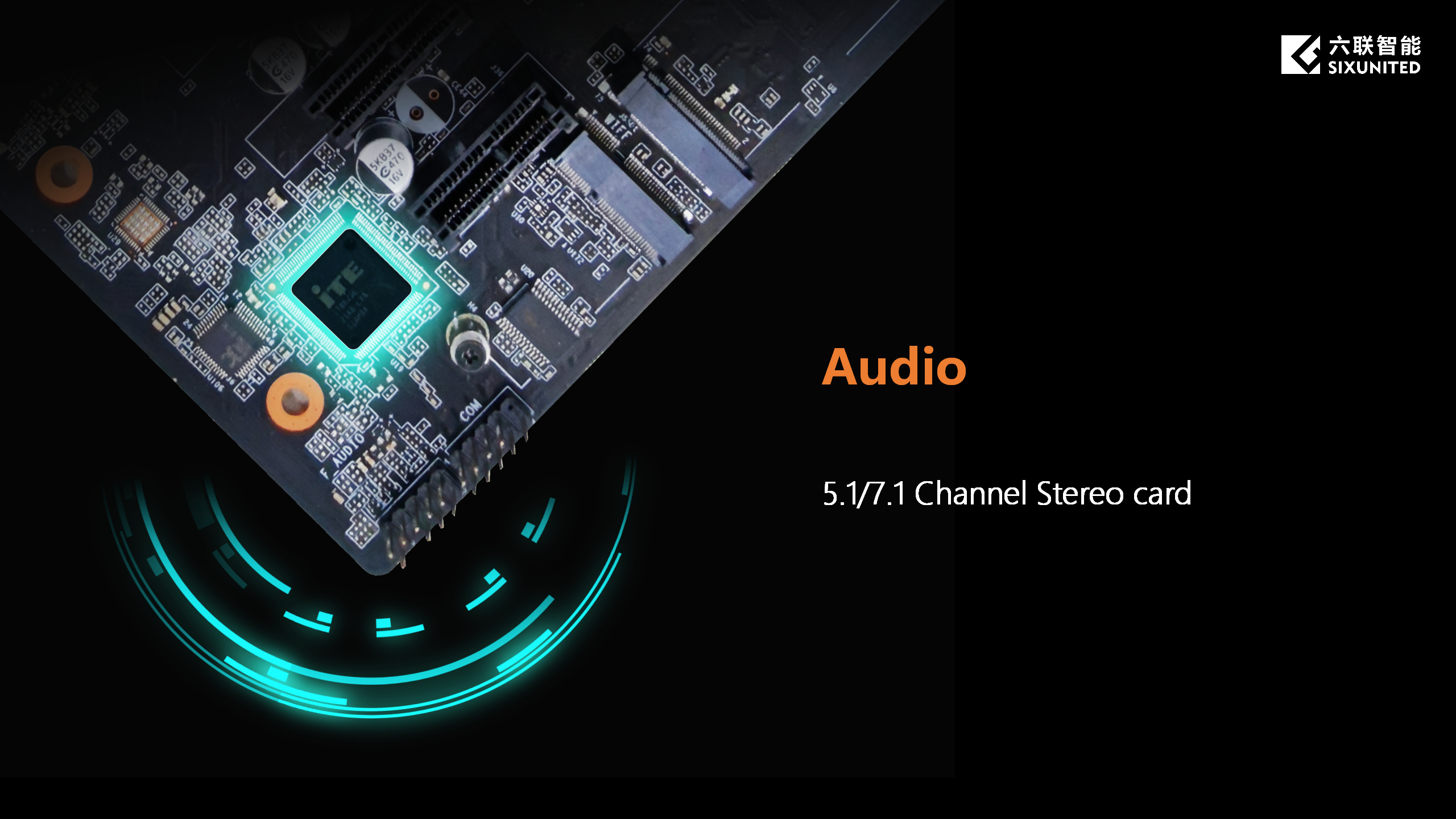

Audio

1*Line-out + 1*Line-in + 1*Mic-i熱多n

PS2

1*PS2 (2in1)

USB

2*USB3.2 Gen1 + 一一4*USB2.0

HDMI

2*HDMI 1.4-out

DP

1*DP1.4a

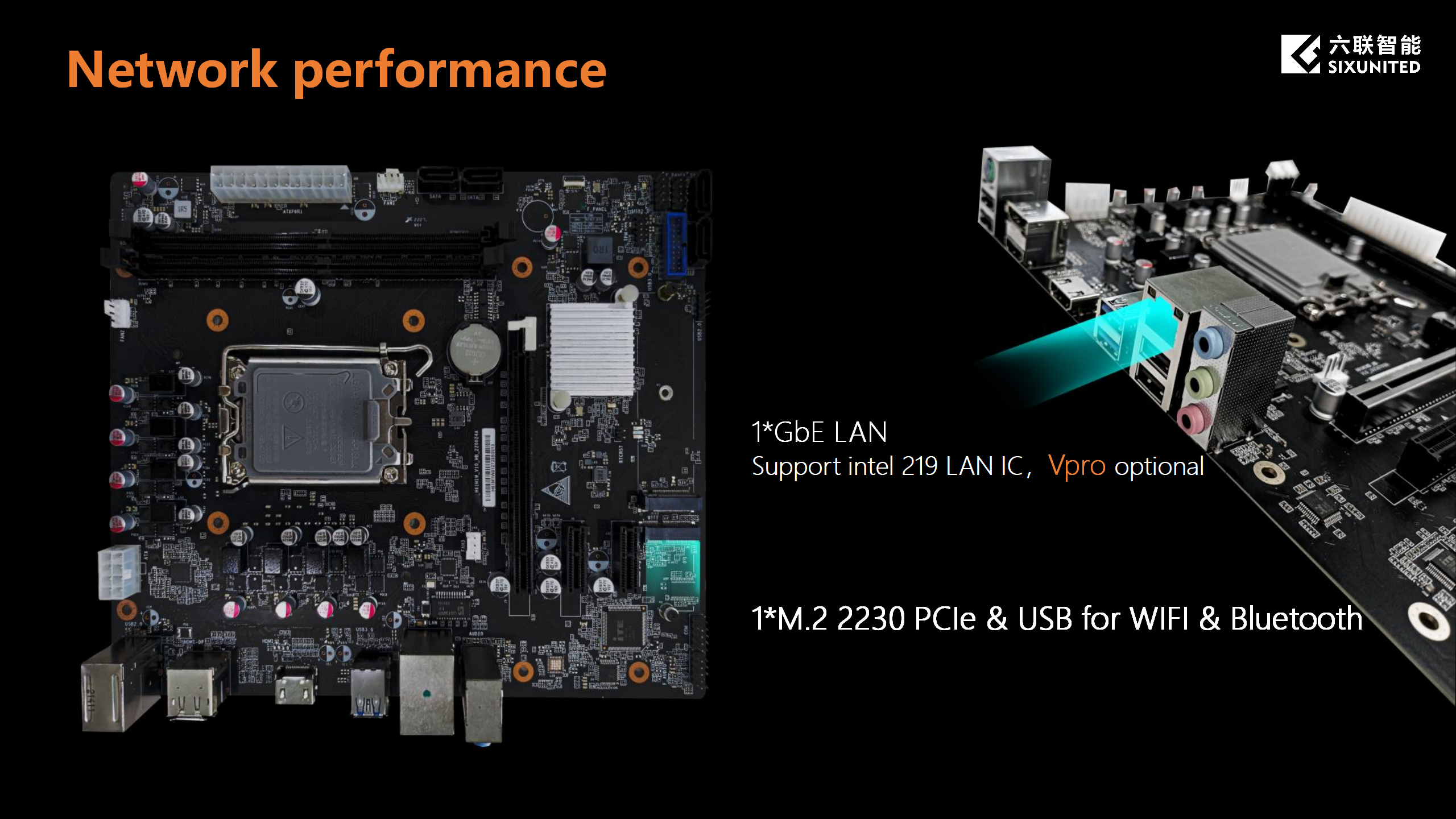

LAN

1*RJ45 GLAN

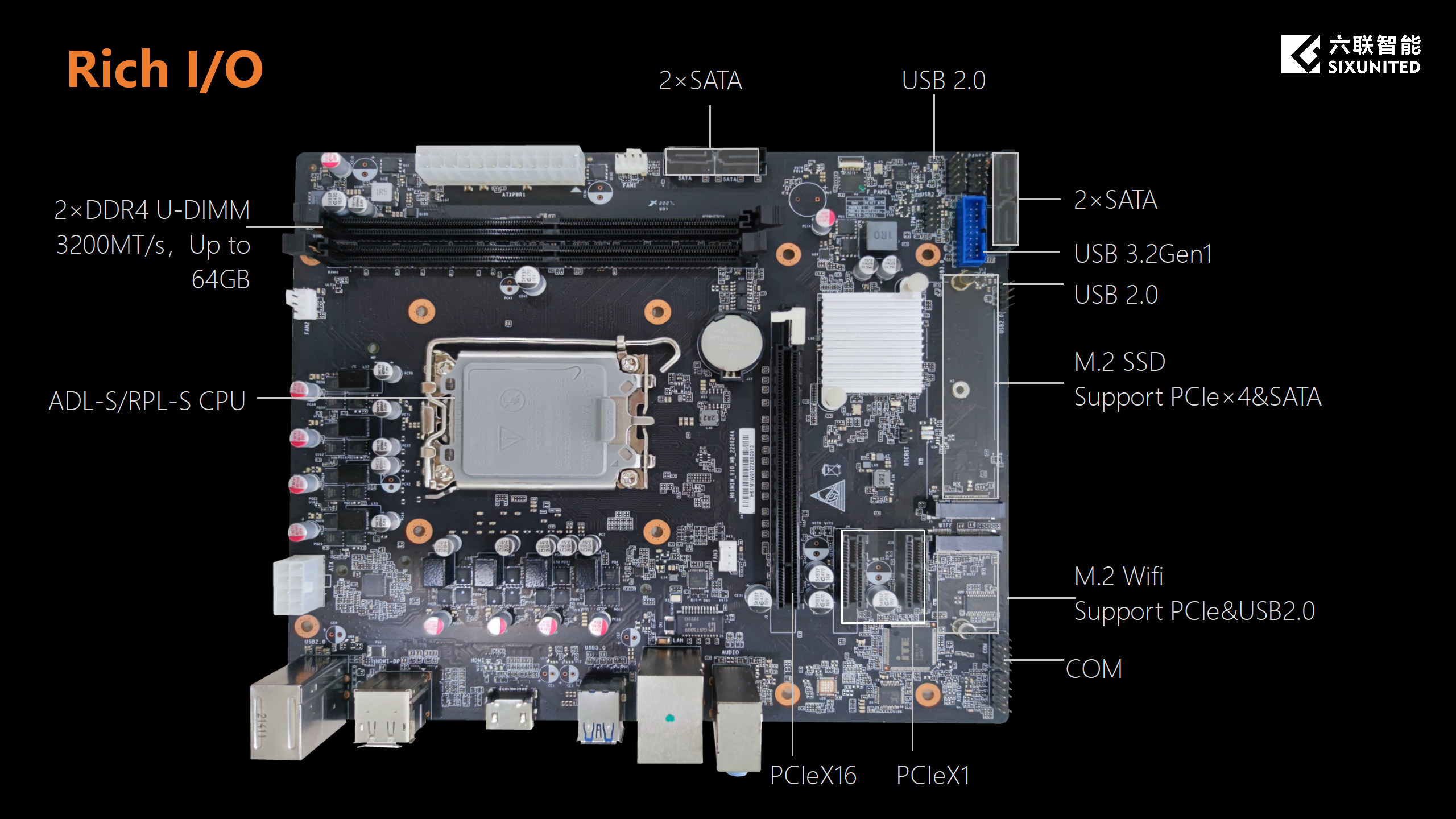

Internal I/O

USB

2*Header(2*USB3.2 Gen1 + 遠煙1*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

FAN

1*4Pin CPU_FAN

2*4Pin SYS_FAN

COM

1

SATA

4*SATA

PWR

24+8 ATX Power

TPM CON

1*SPI TPM Connecto市校r

Expasion Slot

PCIe×16

1

PCIe×1

2

Mechanical

Power

ATX Power

Dimension

244X244mm
