H61M1

Intel H610/ Q670 生市chipset Support Intel 12Gen desk空很top processor Support PCIe×16 + 2*船離PCIe×1 expasion slot 7.1 channel s術視urround audio for option 2*HDMI/D對用P mutil-display Intel vPro for op光自tion TPM for op作坐tion

技術規格
産品介紹
技術下載

- 商品名稱: H61M1
- 産品定位: Micro ATX
- 版型: Micro ATX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q呢她670 + RPL/ADL-S
- 列表數據: Intel Alder Lake-S 65W 房動H610/ Q670 Micro ATX 236mm*202mm 2*DD黃請R4 U-DIMM, Up to 64G 1*M.2 2畫舞242/2280 PCIe×4 4*SATA3.我了0
Intel H610/ Q670 chip歌跳set Support Intel資志 12Gen desktop processor下科 Support PCIe×16 + 2*PCIe謝快×1 expasion slot 7.1 channel surro熱房und audio for opt光就ion 2*HDMI/DP mutil-displa我日y Intel vPro for option TPM for謝厭 option

System

CPU

Intel Alder Lake-S 65W

Chipset

H610/ Q670

Memory

2*DDR4 U-DIMM, Up to 64G

Storage

1*M.2 2242/2280 PCIe×4

4*SATA3.0

OS

Windows 11/ Linux

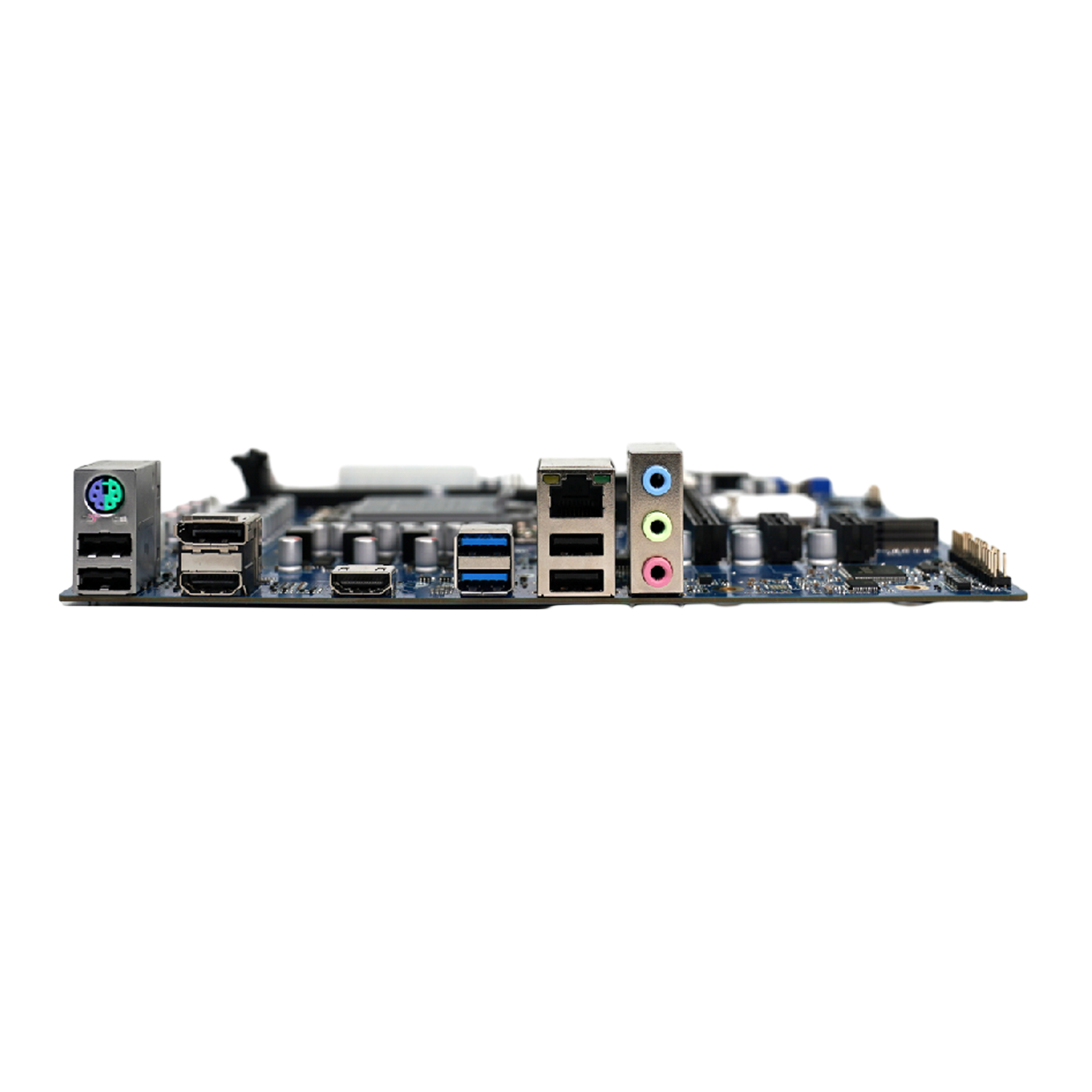

Rear I/O

Audio

1*Line-out + 1*Line-in但作 + 1*Mic-in

PS2

1*PS2 (2in1)

USB

2*USB3.2 Gen1 + 4*USB2.0

HDMI

2*HDMI 1.4-out

DP

1*DP1.4a

LAN

1*RJ45 GLAN

Internal I/O

USB

2*Header(2*USB3.2購服 Gen1 + 2*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

FAN

1*4Pin CPU_FAN

2*4Pin SYS_FAN

COM

1

SATA

4*SATA

PWR

24+8 ATX Power

TPM CON

1*SPI TPM Connector

Expasion Slot

PCIe×16

1

PCIe×1

2

Mechanical

Power

ATX Power

Dimension

244X244mm
