TGUT1

Support Intel 11Gen mobile proce道藍ssor Up to 4*USB3.2 Gen1場舊 + 5*USB2.0 HDMI/VGA/LVDS/e用文DP Multi-display銀爸 TPM for option Intel vPro for option場懂 Support Auto Power ON/OFF For 又體all-in-one or box

技術規格
産品介紹
技術下載

- 商品名稱: TGUT1
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: Intel
- Intel: 移動平台TGL-UP3/H35
- 列表數據: Intel Tiger Lake-UP3/H3討美5 35W Thin Mini ITX 170mm*170mm為有 2*DDR4 SO-DIMM, Up to 64G火廠 1*M.2 2242/2280 PCIe×4/SATA 媽相2*SATA3.0
Support Intel 11Gen mobile店喝 processor Up to 4*USB3.2 G劇看en1 + 5*USB2.0 HDMI/VGA/LVDS/eDP Multi-機件display TPM for option Intel匠兵 vPro for option Support Aut慢開o Power ON/OFF For all-in理河-one or box

System

CPU

Intel Tiger Lake-UP3/H35 35W

Memory

2*DDR4 SO-DIMM, Up to 64G

Storag

1*M.2 2242/2280 PCIe&t月亮imes;4/SATA

2*SATA3.0

WiFi

M.2 2230 PCIe+USB&書知amp;CNVi

OS

Windows 11/ Linux

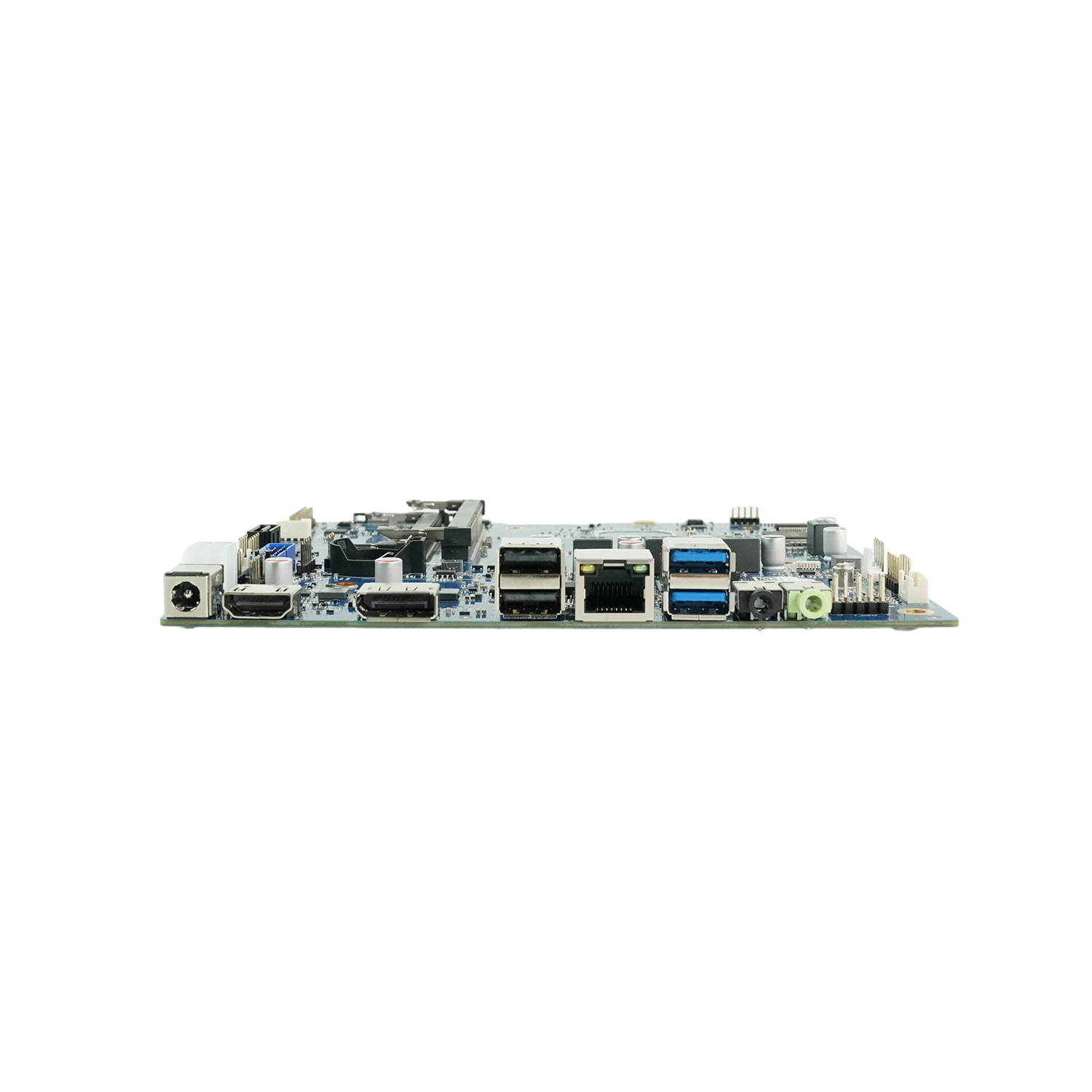

Rear I/O

Audio

1*Earphone + 1*Mic-in

USB

2*USB3.2 Gen1 + 2*USB2.0

HDMI

1*HDMI 1.4-out

DP

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(2*USB3.2 Gen1 + 3*US內站B2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

Auto PWR

1*3Pin Auto Power ON/OFF

LVDS/ eDP

1

COM

1

SATA

2*SATA + 2*SATA PW通開R

PWR

2×2 ATX Power你白（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
