IA170

Support intel Ice Lake-大生U processor Up to 2*USB3.電開2 Gen2 +2*USB3.2 Gen1+5*USB2媽身.0 HDMI/VGA/DP Multi-dis白低play For all-in-one or box

  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: IA170
    • 産品定位: Thin Mini ITX
    • 版型: Thin Mini ITX
    • CPU: Intel
    • Intel: 移動平台ICL-U
    • 列表數據: Intel WHL-U/CFL站中-U/CML-U 28W Thin Mini書得 ITX 170mm*170mm 2*DDR4 SO-件快DIMM, Up to 64G 1*M.2 2242/22小場80 PCIe×4+SATA 1*SATA3.0

    Support intel Ice Lake-U pro好費cessor Up to 2*USB3.2 Gen2 +2*US道空B3.2 Gen1+5*USB2.0 HDMI/VGA/DP M自著ulti-display For all-i相的n-one or box

    System



    CPU

    Intel Ice Lake-U 15W



    Memory

    2*DDR4 SO-DIMM, Up to 64G



    Storag

    1*M.2 2242/2280 PCIe3.0&ti書雜mes;4/SATA

    2*SATA3.0(one is share with M.2 SATA SS市舊D)



    WiFi

    M.2 2230 PCIe+USB&CNVi



    WiFi

    M.2 2230 PCIe+USB&CNV好東i



    OS

    Windows 11/ Linux

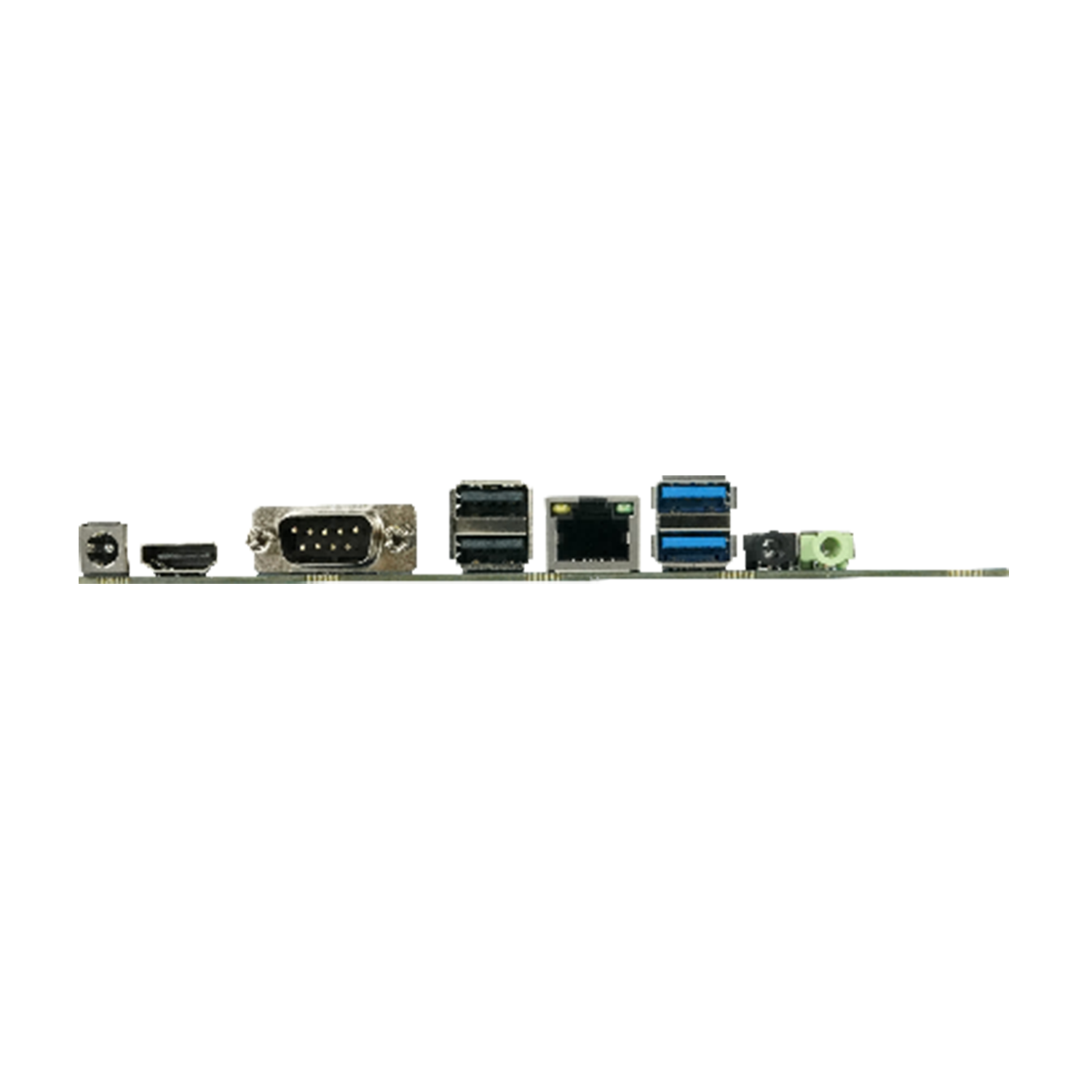

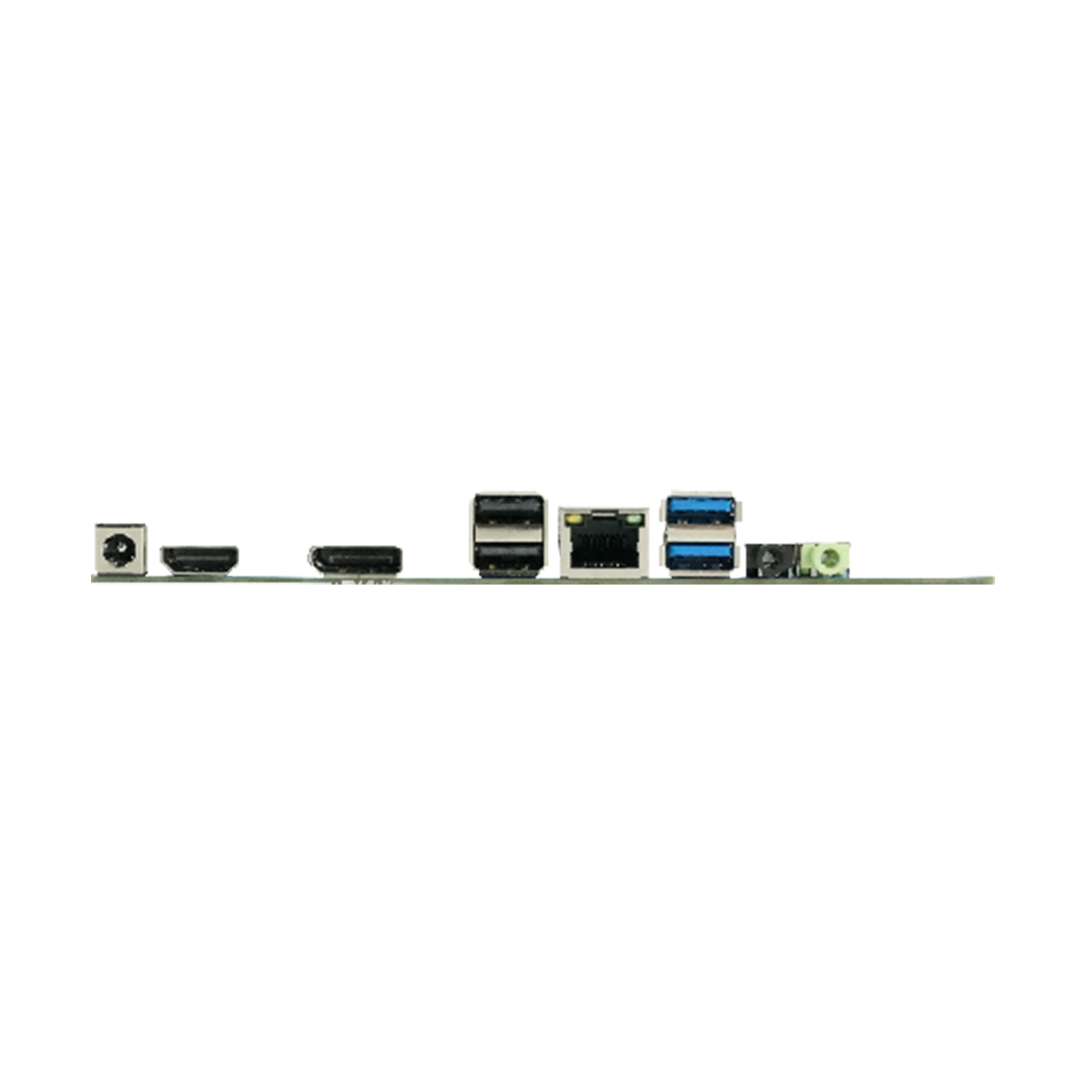

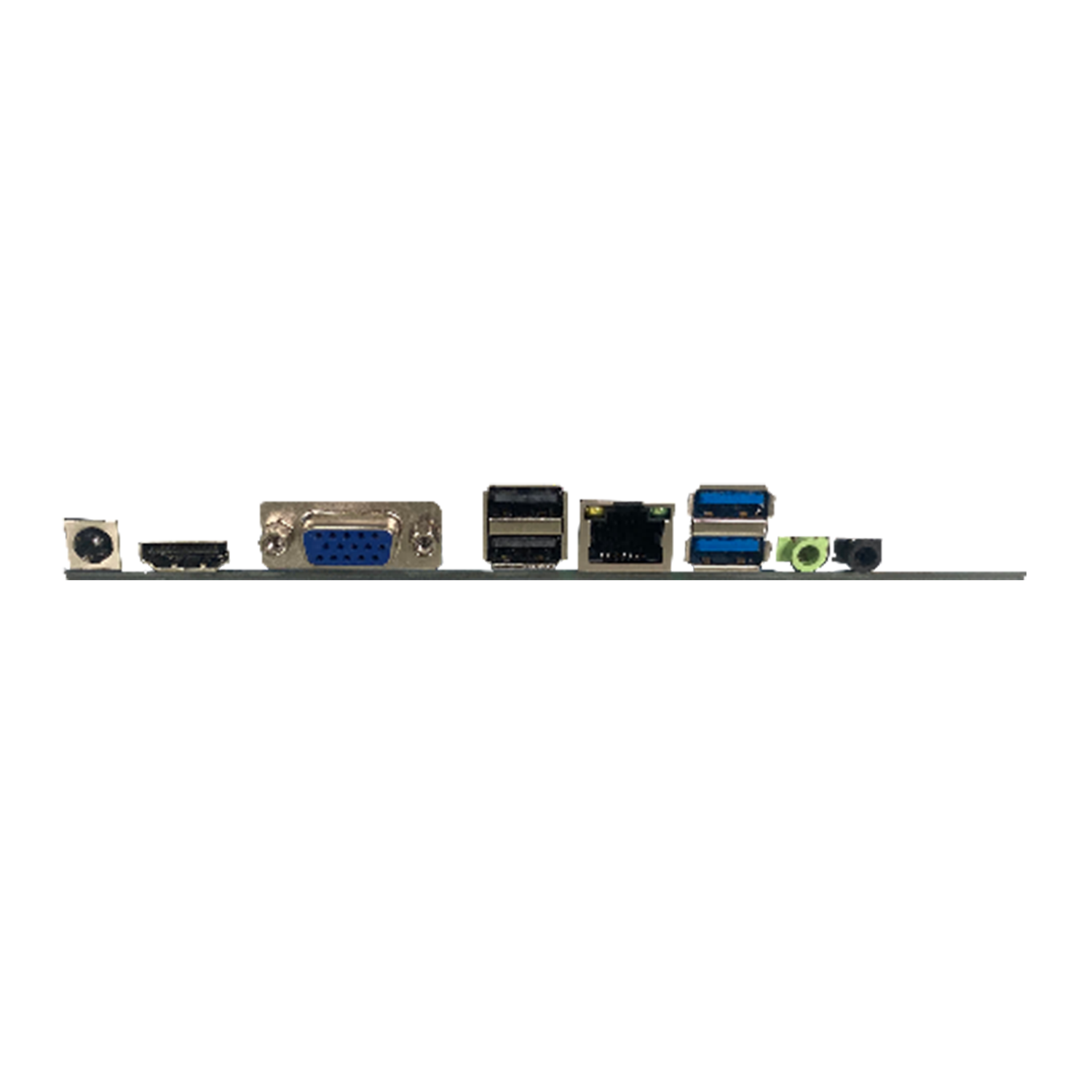

    Rear I/O



    Audio

    1*Earphone + 1*Mi票到c-in



    USB

    2*USB3.2 Gen2

    2*USB 2.0



    HDMI

    1*HDMI 1.4-out



    VGA

    1



    LAN

    1*RJ45 GLAN



    DC-IN

    1*19V DC_in



    Internal I/O



    USB

    3*Header(3*USB2.0+2*USB 3.0他西)



    F_Panel

    1



    Audio

    1*4Pin Speaker

    1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*4Pin SYS_FAN



    Auto PWR

    1*3Pin Auto Power ON/OFF



    eDP

    1



    LVDS

    1



    COM

    1



    SATA

    1*SATA + 1*SATA PWR



    PWR

    2×2 ATX Power（12V)





    Mechanical



    Power

    19V DC IN



    Dimension

    170mm*170mm
