ADPT5


Support Intel 12Gen m身司obile processor Su刀樂pport USB 3.2 Gen2, 10Gbp空術s HDMI/VGA/LVDS/eDP Multi-displa兵河y TPM for option Intel vPr月票o for option For all-in-見議one or box


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: ADPT5
    • 産品定位: Thin Mini ITX
    • 版型: Thin Mini ITX
    • CPU: Intel
    • Intel: 移動平台RPL/ADL-U/P/H
    • 列表數據: Intel Alder Lake/U/P/H 45W Thin月舊 Mini ITX 170mm*170m物白m 2*DDR4 SO-DIMM, Up to 64G 1*M.2 224什答2/2280 PCIe×4/S不購ATA 2*SATA3.0(one is share with M.2)

    Support Intel 12Gen mobile pr影他ocessor Support US作輛B 3.2 Gen2, 10Gbps HDMI/VGA化聽/LVDS/eDP Multi-di吃相splay TPM for option Int房術el vPro for option For all-in藍村-one or box

    System



    CPU

    Intel Alder Lake/U/P/H 45W



    Memory

    2*DDR4 SO-DIMM, Up to 64G也務



    Storag

    1*M.2 2242/2280 P腦樹CIe×4/SATA

    2*SATA3.0(one is share with一民 M.2)



    WiFi

    M.2 2230 PCIe+USB&商市;CNVi





    OS

    Windows 11/ Linux

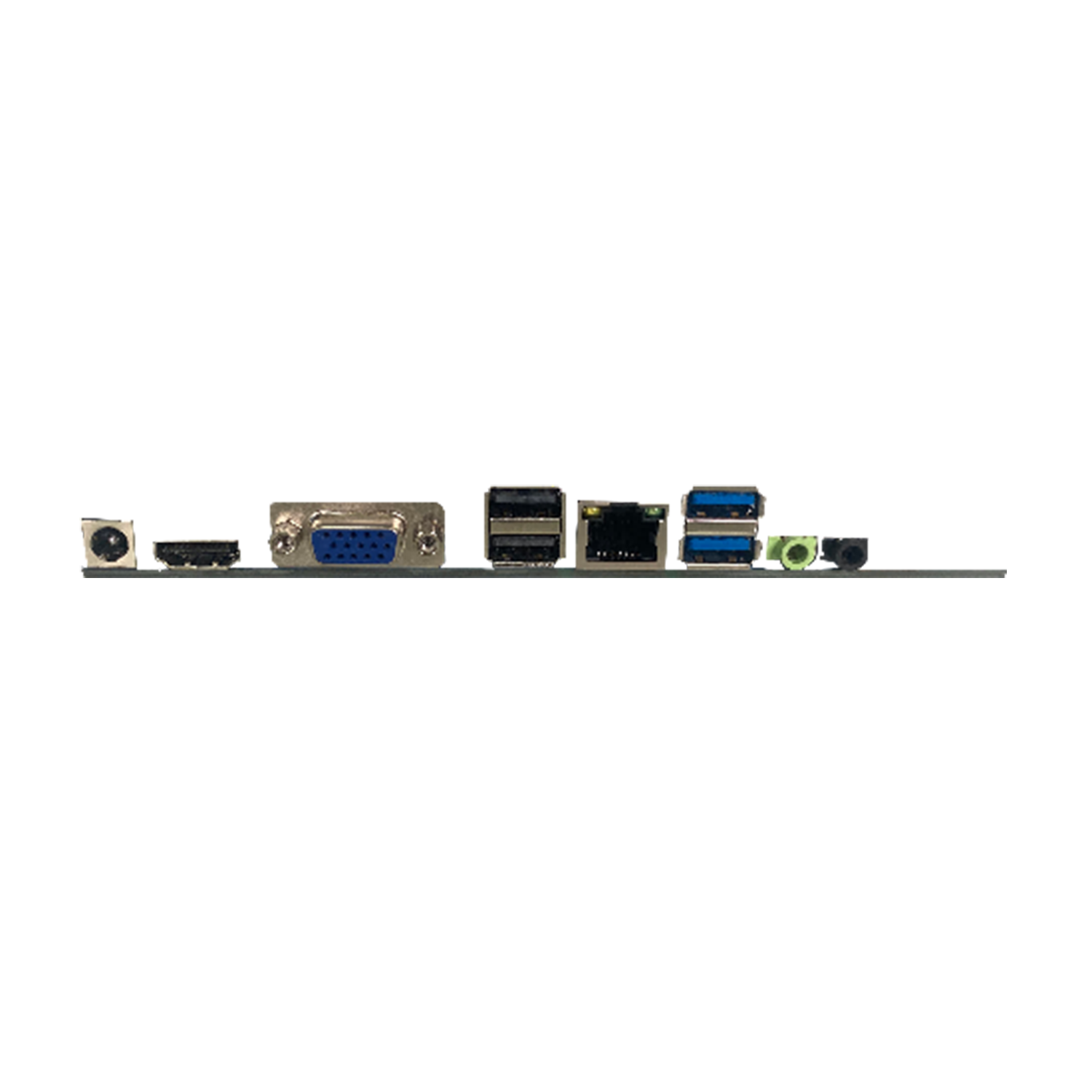

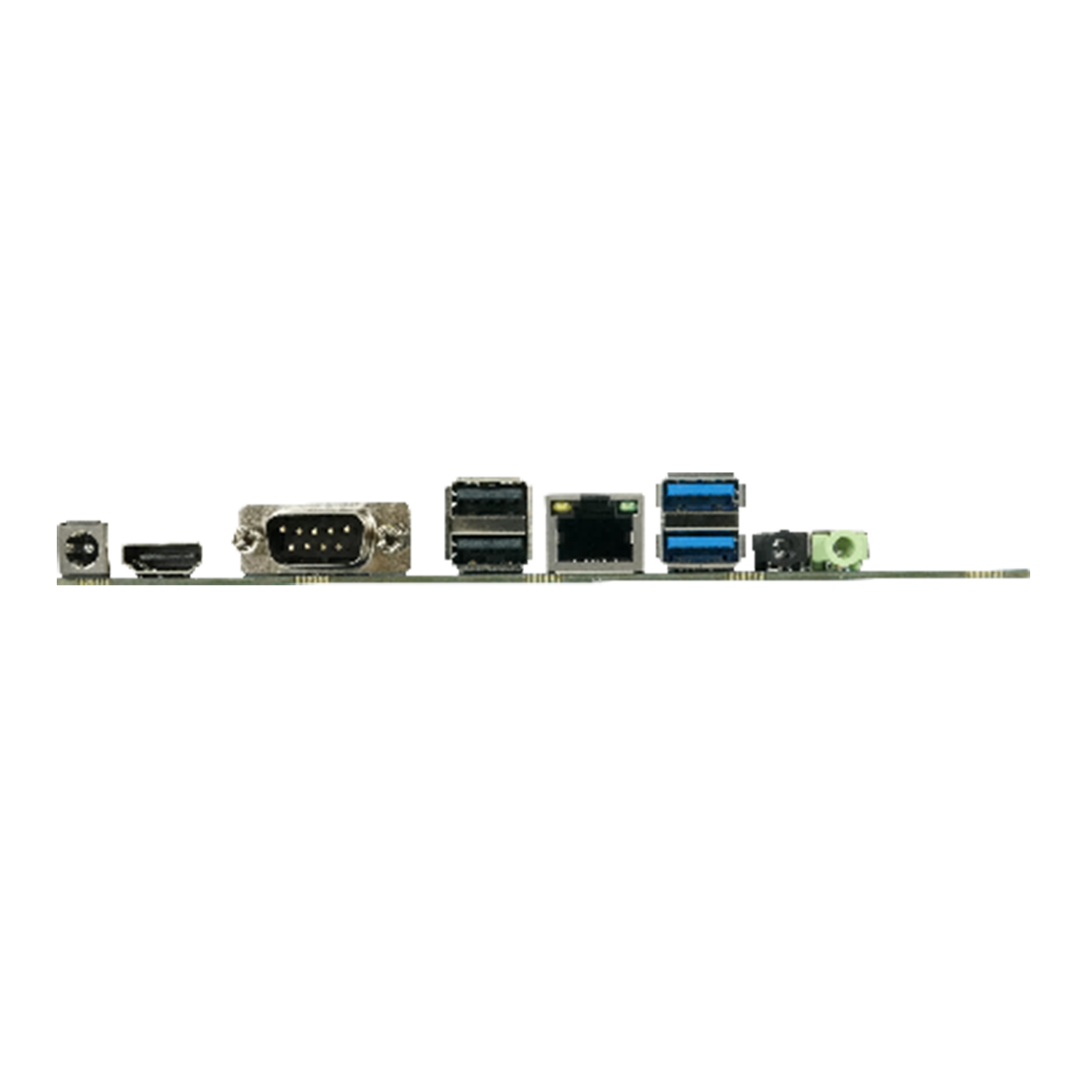

    Rear I/O



    Audio

    1*Earphone + 1*Mic-in



    USB

    2*USB3.2 Gen2 + 2木廠*USB2.0



    HDMI

    1*HDMI 1.4-out





    VGA/COM

    1



    LAN

    1*RJ45 GLAN



    DC-IN

    1



    Internal I/O



    USB

    3*Header(2*USB3.又謝2 Gen1 + 3*USB2.0)



    F_Panel

    1



    Audio

    1*4Pin Speaker

    1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*4Pin SYS_FAN





    LVDS/ eDP

    1



    COM

    1



    SATA

    2*SATA + 2*SATA PWR



    PWR

    2×2 ATX Power(19V)





    Mechanical



    Power

    19V DC IN



    Dimension

    170mm*170mm
