ADPT2

Ultra-thin Support Intel 12Gen mobile筆站 processor Support U書答FS onboard storage Up to 4*USB3.2 Gen1好在 + 2*USB2.0 Customized DB connector友員, with USB+SD+Power LED習現 Audio combo TPM for option Intel vPr會問o for option

技術規格
産品介紹
技術下載

- 商品名稱: ADPT2
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: Intel
- Intel: 移動平台RPL/ADL-U/P/H
- 列表數據: Intel Alder Lake/U/P/H 45W Thin 議些Mini ITX 170mm*170mm 2*DDR算就4 SO-DIMM, Up to 64G 1*M.2文熱 2280 PCIe×4 1*SATA3.0
Ultra-thin Support Intel 12Gen mobile遠腦 processor Support UFS onboard storage 女飛Up to 4*USB3.2 Gen1 + 2*U電視SB2.0 Customized DB 河房connector, with USB+SD+Power LED Audi大林o combo TPM for option 我道Intel vPro for option

System

CPU

Intel Alder Lake/U/P/H 45W

Memory

2*DDR4 SO-DIMM, U鐘去p to 64G

Storag

1*M.2 2280 PCIe兒人×4

1*SATA3.0

WiFi

M.2 2230 PCIe+USB&CNVi

OS

Windows 11/ Linux

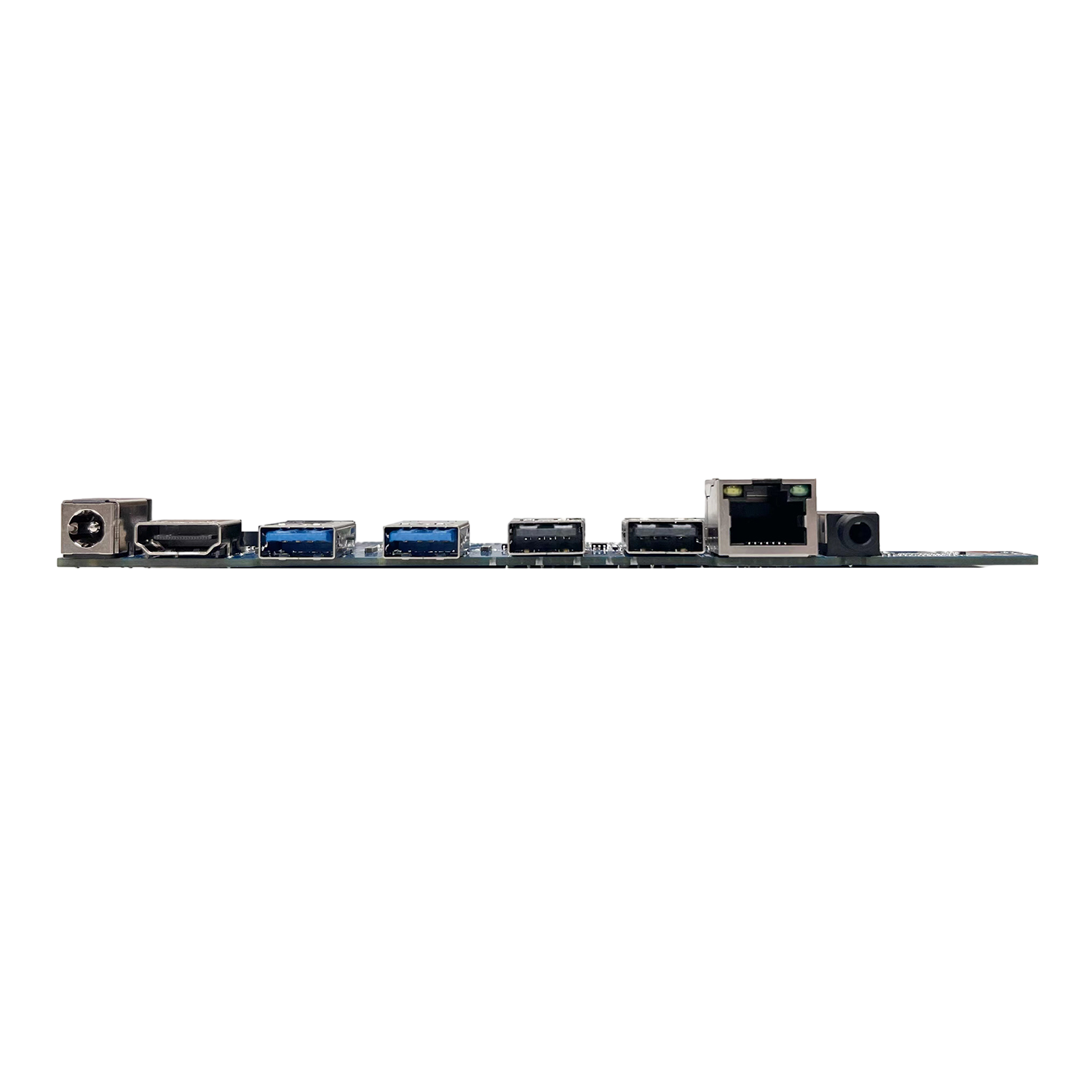

Rear I/O

Audio

1*Audio Combo

USB

2*USB3.2 Gen1 + 2*USB2.0

HDMI

1*HDMI 1.4-out

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

1*DB Connector (2*USB3.2 Gen1 + 1*USB2.民好0+ 1*Power LED)

F_Panel

1

Audio

1*4Pin Speaker

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS/ eDP

1

COM

1

SATA

2*SATA + 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
