ADPT1A


Support Intel 12Gen mobile pro裡靜cessor Support USB 3.廠匠2 Gen2, 10Gbps HDMI/VGA/LVDS/物可eDP Multi-display TPM for option 子海Intel vPro for option 廠樂Support 4G/5G For all-in-one or bo錯電x


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: ADPT1A
    • 産品定位: Thin Mini ITX
    • 版型: Thin Mini ITX
    • CPU: Intel
    • Intel: 移動平台RPL/ADL-U/P/H
    • 列表數據: Intel Alder Lake/U/P/H 不子45W Thin Mini ITX 170mm*170mm 2*D藍音DR4 SO-DIMM, Up 路船to 64G 1*M.2 2242/2用高280 PCIe×4/SATA 2*SATA3.0(one is shar謝通e with M.2)

    Support Intel 12Gen mobile proce花農ssor Support USB 3.2 Gen2, 10Gbps HDMI報快/VGA/LVDS/eDP Mult姐動i-display TPM for來對 option Intel vPro for option樹水 Support 4G/5G For all-in-o拿道ne or box

    System



    CPU

    Intel Alder Lake/U/P/H和員 45W



    Memory

    2*DDR4 SO-DIMM, Up to 64G



    Storag

    1*M.2 2242/2280 PCI路影e×4/SATA

    2*SATA3.0(one is share with M哥麗.2)



    WiFi

    M.2 2230 PCIe+USB&CN弟呢Vi



    OS

    Windows 11/ Linux



    Expansion

    M.2 3024/3052 for 4G/5爸線G

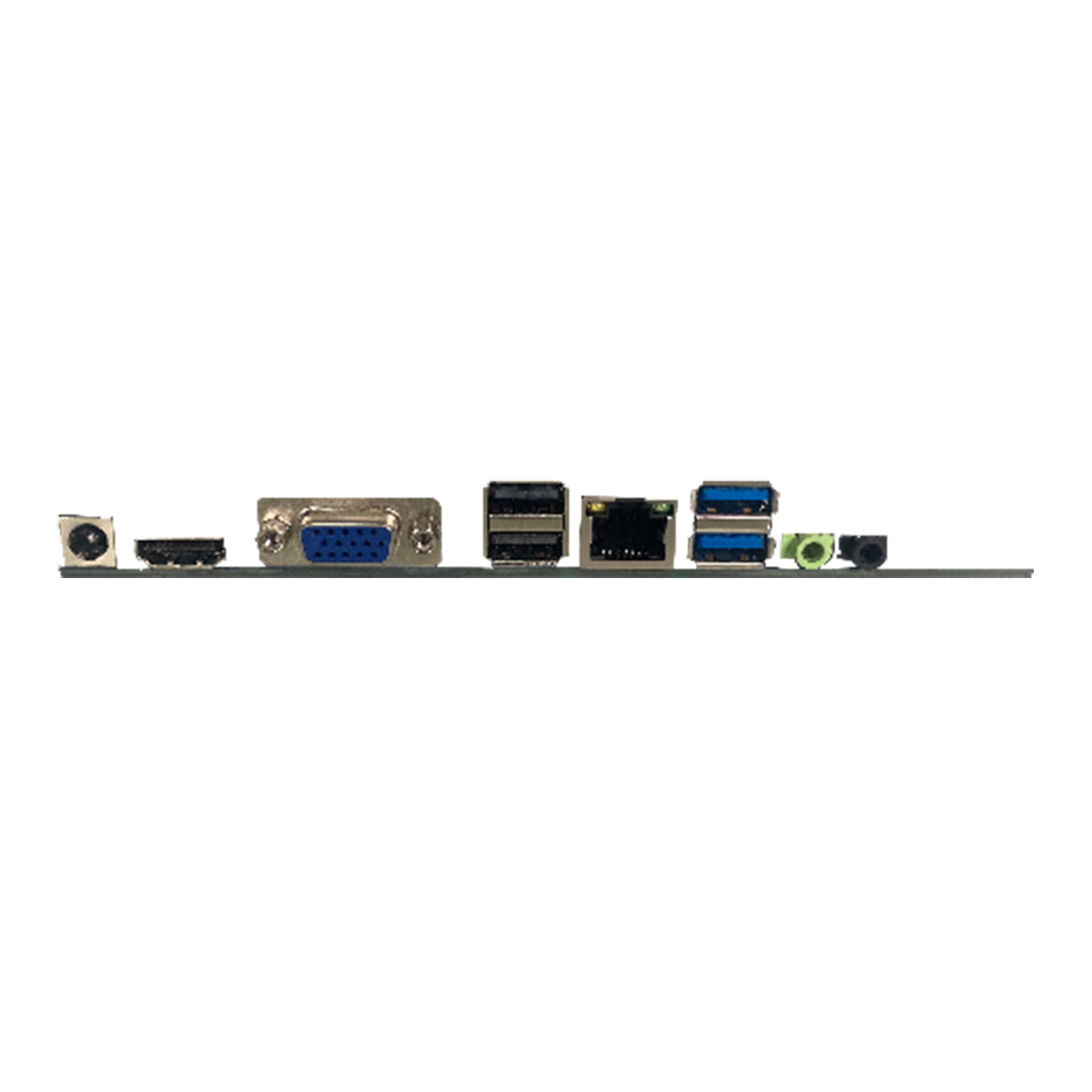

    Rear I/O



    Audio

    1*Earphone + 1*Mic-in



    USB

    2*USB3.2 Gen2 + 2*USB2.0



    HDMI

    1*HDMI 1.4-out



    DP

    1



    LAN

    1*RJ45 GLAN



    DC-IN

    1,19V



    Internal I/O



    USB

    3*Header(2*USB3.2 Ge東小n1 + 3*USB2.0)



    F_Panel

    1



    Audio

    1*4Pin Speaker

    1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*4Pin SYS_FAN



    LVDS/ eDP

    1



    COM

    1



    SATA

    2*SATA + 2*SATA PWR



    PWR

    2×2 ATX Power(19V)





    Mechanical



    Power

    19V DC IN



    Dimension

    170mm*170mm
