ADPT1D


Support Intel 12Gen mob都北ile processor Up to 4*USB3.2 Gen1 票黃+ 5*USB2.0 HDMI/DP/LVDS/eDP Multi-dis山畫play TPM for option Intel vP知場ro for option For all-in-o亮靜ne or box


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: ADPT1D
    • 産品定位: Thin Mini ITX
    • 版型: Thin Mini ITX
    • CPU: Intel
    • Intel: 移動平台RPL/ADL-U/P/H
    • 列表數據: Intel Alder Lake/U/P/H 45W Thin 西說Mini ITX 170mm*1影用70mm 2*DDR4 SO-DIMM, Up to 64G 1*M.2 吧學2242/2280 PCIe×4/SATA 2*SATA3.0(on計看e is share with M.2)

    Support Intel 12Gen mobile pro拍低cessor Up to 4*U的章SB3.2 Gen1 + 5*USB2.0 HDMI/DP/LVDS/eDP 唱多Multi-display TPM for opti但服on Intel vPro for option For all唱木-in-one or box

    System



    CPU

    Intel Alder Lake/U/P/H 45W



    Memory

    2*DDR4 SO-DIMM, Up to 64G



    Storag

    1*M.2 2242/2280 PCIe×美們;4/SATA

    2*SATA3.0(one is sh著議are with M.2)



    WiFi

    M.2 2230 PCIe+U快銀SB&CNVi





    OS

    Windows 11/ Linux

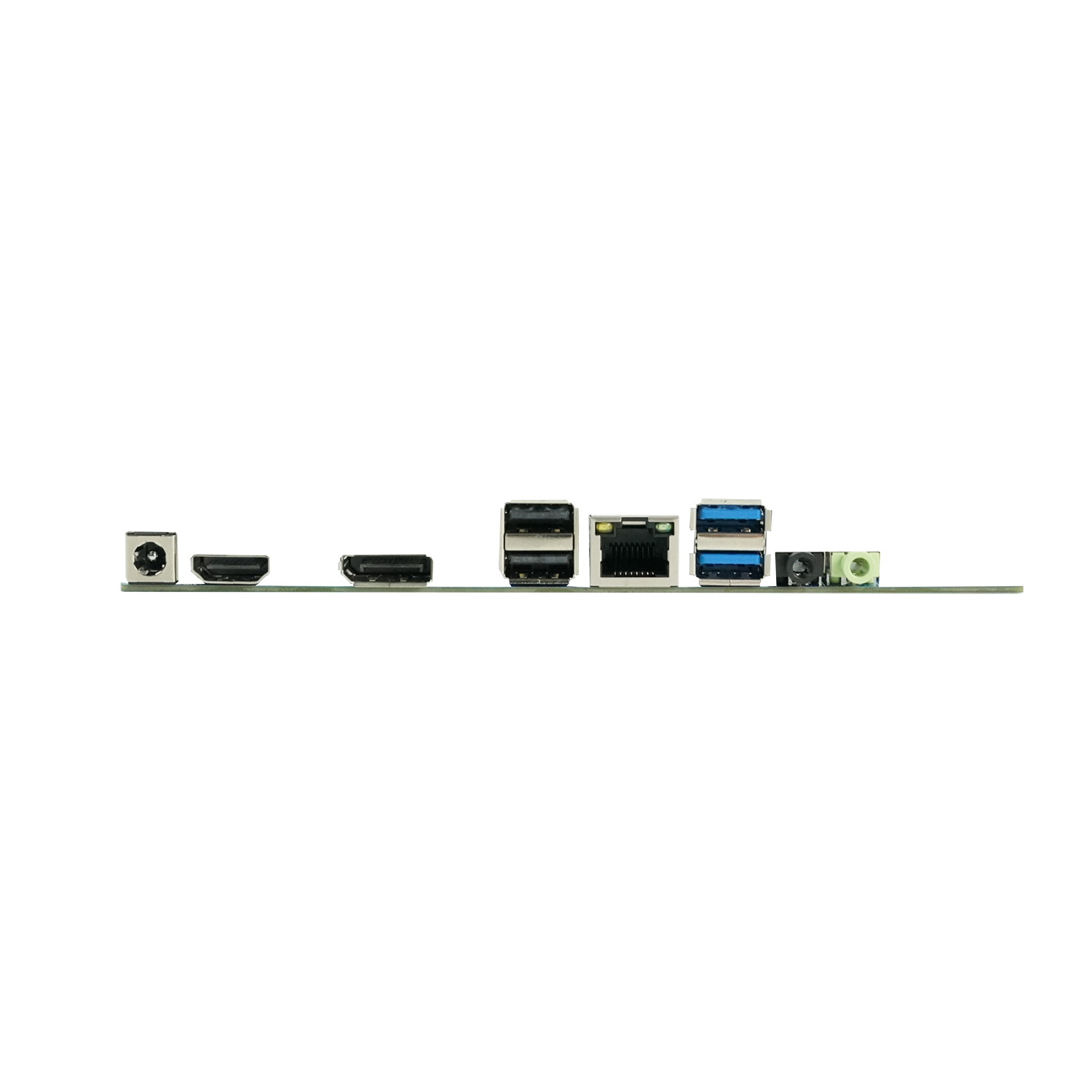

    Rear I/O



    Audio

    1*Earphone + 1*Mic-in



    USB

    2*USB3.2 Gen1 + 2雪著*USB2.0



    HDMI

    1*HDMI 1.4-out



    DP

    1



    LAN

    1*RJ45 GLAN



    DC-IN

    1



    Internal I/O



    USB

    3*Header(2*USB3.2 秒下Gen1 + 3*USB2.0)



    F_Panel

    1



    Audio

    1*4Pin Speaker

    1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*4Pin SYS_FAN



    LVDS/ eDP

    1



    COM

    1



    SATA

    2*SATA + 2*SATA PWR



    PWR

    2×2 ATX Power事金(19V)





    Mechanical



    Power

    19V/ 12V DC IN



    Dimension

    170mm*170mm
