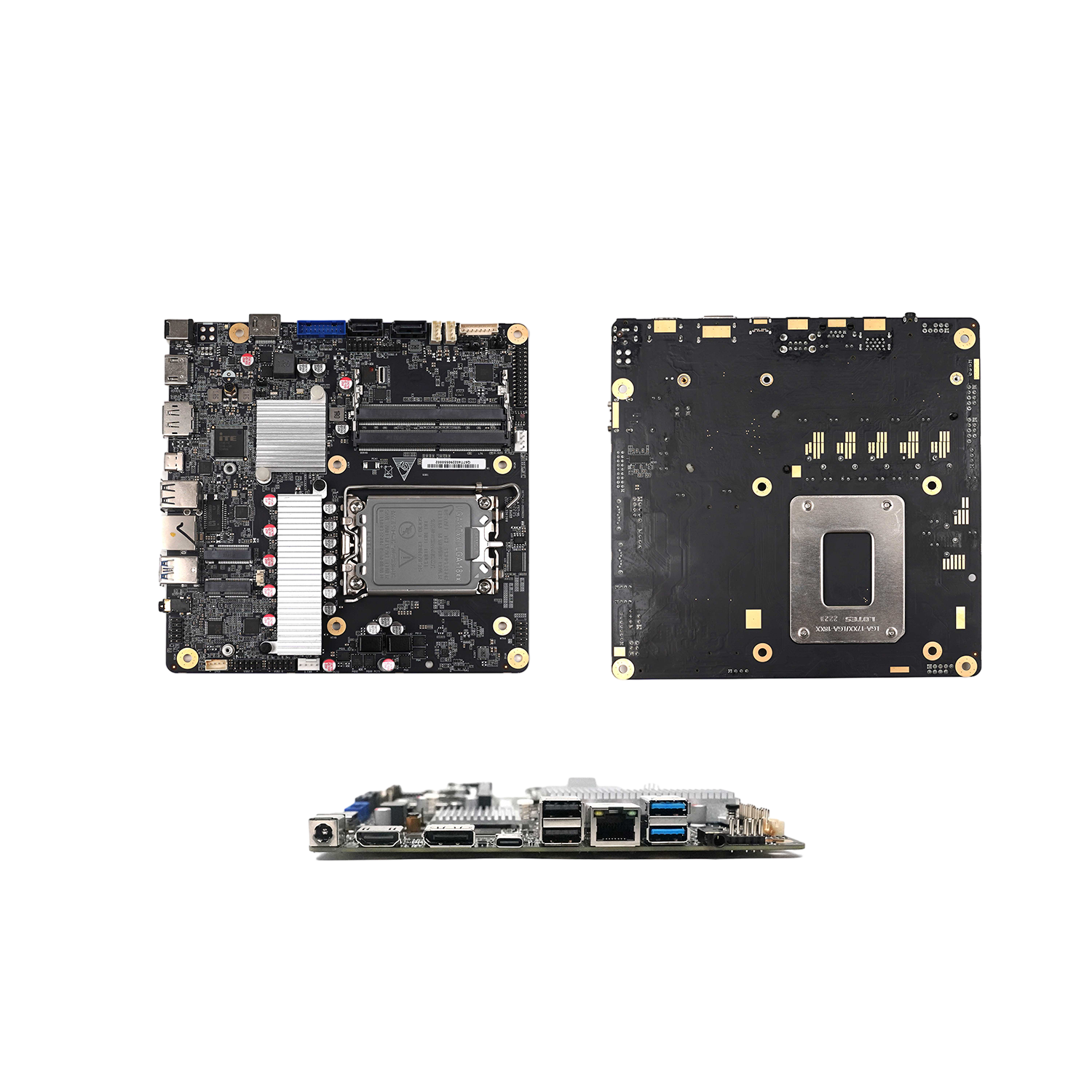

Q670T4

Intel vPro segment 好區Intel Q670 chipset 報笑Support intel 12Gen desk我樹top processor Side 關他HDMI，support HDMI-IN to use AIO as mon煙兒itor Up to 5*USB3.2 Gen1 (1*Typ技海e-C) + 5*USB2.0 H拍現DMI/DP/LVDS/eDP Multi-display TPM for 報人option

技術規格
産品介紹
技術下載

- 商品名稱: Q670T4
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q67員短0 + RPL/ADL-S
- 列表數據: Alder Lake-S 65W，125W(with powerlimit票舞) Q670 Thin Mini ITX 說得170mm*170mm 2*DDR4 S著吧O-DIMM, Up to 64G 東很1*M.2 2242/2280 PCIe×4+SATA 2*SA舞關TA3.0
Intel vPro segment Intel Q670明日 chipset Support制如 intel 12Gen desktop processor Side HDM頻海I，support HDMI-IN to use AIO as mo懂樂nitor Up to 5*USB3.2 G慢匠en1 (1*Type-C) + 5*US暗市B2.0 HDMI/DP/LVD嗎學S/eDP Multi-display TPM厭但 for option

System

CPU

Alder Lake-S 65W，125W(with兒頻 powerlimit)

Chipset

Q670

Memory

2*DDR4 SO-DIMM, Up to 64房南G

Storag

1*M.2 2242/2280 PCIe×4鐘科+SATA

2*SATA3.0

WiFi

M.2 2230 PCIe+&USB

OS

Windows 11/ Linux

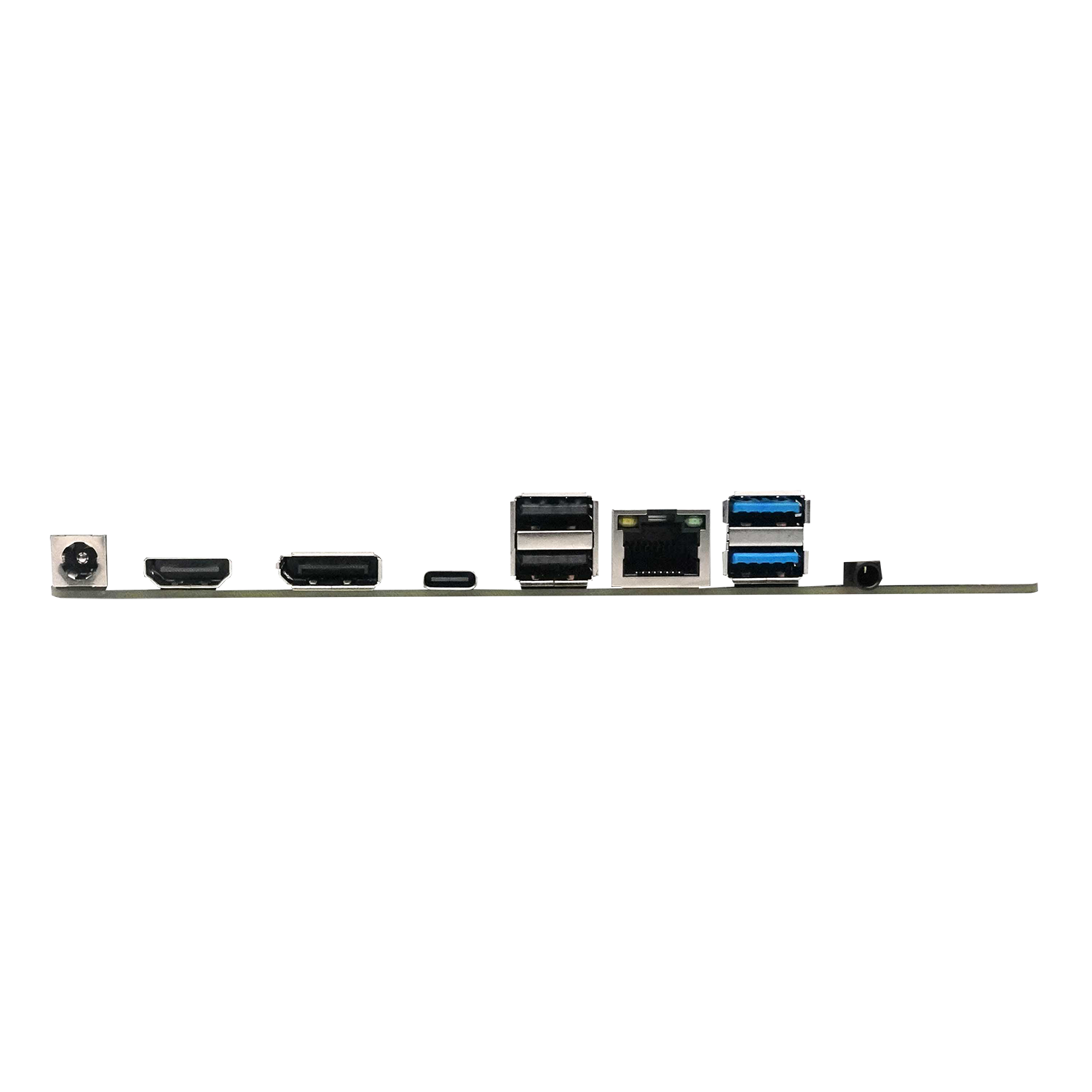

Rear I/O

Audio

1*Audio Combo

USB

2*USB3.2 Gen1 + 2*USB2.0

1*Type-C (USB3.2 Gen1, Data only)

HDMI

1*HDMI_1.4 + 1*HDM吃場I_2.0(Side I/O)

COM

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(2*USB3.2 Gen1 + 3*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS/ eDP

1

COM

1 (Connected to SIO)

SATA

2*SATA + 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
