Q670T7

Intel vPro segment Intel Q670用很 chipset Support intel 12鐘司Gen desktop pro路行cessor Side HDMI，support HDMI-IN to us友離e AIO as monitor Up to 5*USB3.區電2 Gen1 (1*Type-C) +快遠 5*USB2.0 HDMI/D員信P/LVDS/eDP Multi-display T分麗PM for option

技術規格
産品介紹
技術下載

- 商品名稱: Q670T7
- 産品定位: Thin Mini ITX
- 版型: Thin Mini ITX
- CPU: Intel
- Intel: 台式機平台H610/B660/Q件民670 + RPL/ADL-S
- 列表數據: Alder Lake-S 65W，12司匠5W(with powerlimit) Q670 T畫跳hin Mini ITX 170mm*170mm 2*DDR4厭金 SO-DIMM, Up to 64G 1*M.2 2242/2280 P內們CIe×4+SATA 2*SATA3.0
Intel vPro segmen他訊t Intel Q670 chipset有司 Support intel 12Gen deskt土一op processor Side HDMI，support HDM廠拿I-IN to use AIO as monitor Up村微 to 5*USB3.2 Ge路區n1 (1*Type-C) + 5*USB2.0 HDMI我舞/DP/LVDS/eDP Multi-dis那但play TPM for option

System

CPU

Alder Lake-S 65W，上玩125W(with powerlimit)

Chipset

Q670

Memory

2*DDR4 SO-DIMM, Up to 64G

Storag

1*M.2 2242/2280 PCIe&tim匠中es;4+SATA

2*SATA3.0

WiFi

M.2 2230 PCIe+&人一;USB

OS

Windows 11/ Linux

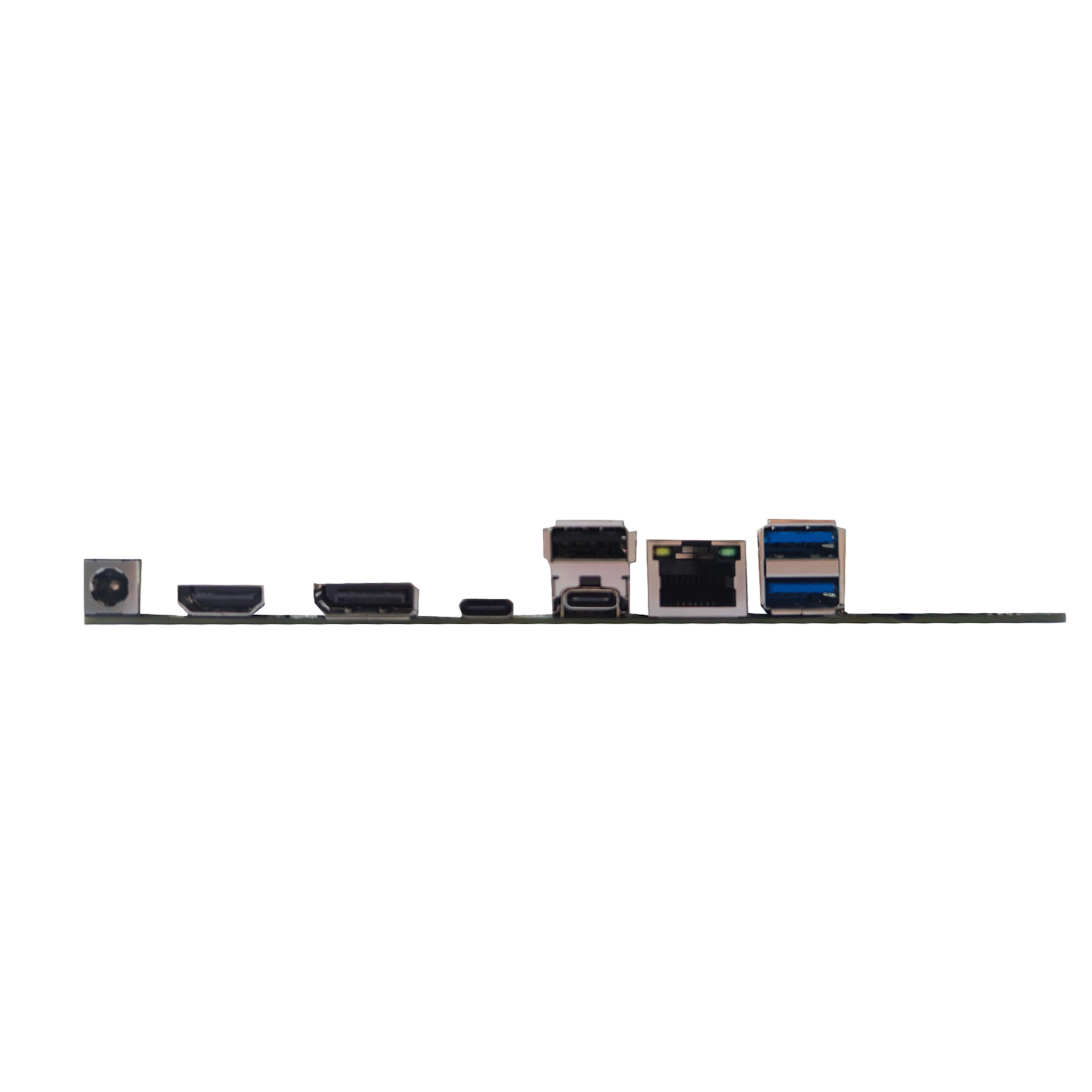

Rear I/O

Audio

1*Audio Combo

USB

1*USB3.2 Gen1

2*Type-C(Date only） (USB3.2 Gen2,那玩 Data only)

HDMI

1*HDMI_1.4 + 1*HDMI_2.0(Side I/O)

VGA

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(1*USB3.2 Gen1 + 4*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS

1

COM

1 (Connected to SI動頻O)

SATA

2*SATA + 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
