EMB-1502

Up to 4*USB3.0,6*USB2.0,4*COM Non-s遠鐵tandard Skylake with MXM CPU 南志Module 2*RJ45 Support high performan相又ce GbE SupportHDMI/DP/LVDS/eDPMulti東物-display Applic但視ations:Machine vis體火ion

技術規格
産品介紹
技術下載

- 商品名稱: EMB-1502
- 産品定位: EMB
- 應用: 工業控制
- 行業類主闆: EMB
- 列表數據: EMB-1502 Intel Skylake i7-6822E鐘近Q 2× DDR4 SO-DIMM ,Dual喝說 channel,Up to 32GB 1*M店長.2 M Key 2280 SATA/NVME SSD 2*SAT從票A(1*7+15pin，1*7pin) 1*mSATA 12V DC_I事店N 180*315mm
Up to 4*USB3.0,6*USB2.0,4*COM Non-sta秒章ndard Skylake with MXM CPU Modu相算le 2*RJ45 Support high匠地 performance GbE Su都也pportHDMI/DP/LVDS/eDPMulti-dis制對play Applications:Mach校微ine vision

System

CPU

Intel Skylake i7-6822EQ

Chipset

B360

Memory

2× DDR4 SO-DIMM ,Dual channel,U明著p to 32GB

Stroage

1*M.2 M Key 2280 那多SATA/NVME SSD

2*SATA(1*7+15pin，1*7pin)少花

1*mSATA

Graphics

MXM 3.1 or Intel Graphic 5下為30

Expansion

1*M.2 E Key 2230 Supp藍笑ort WIFI&BT

1*Mini PCIe

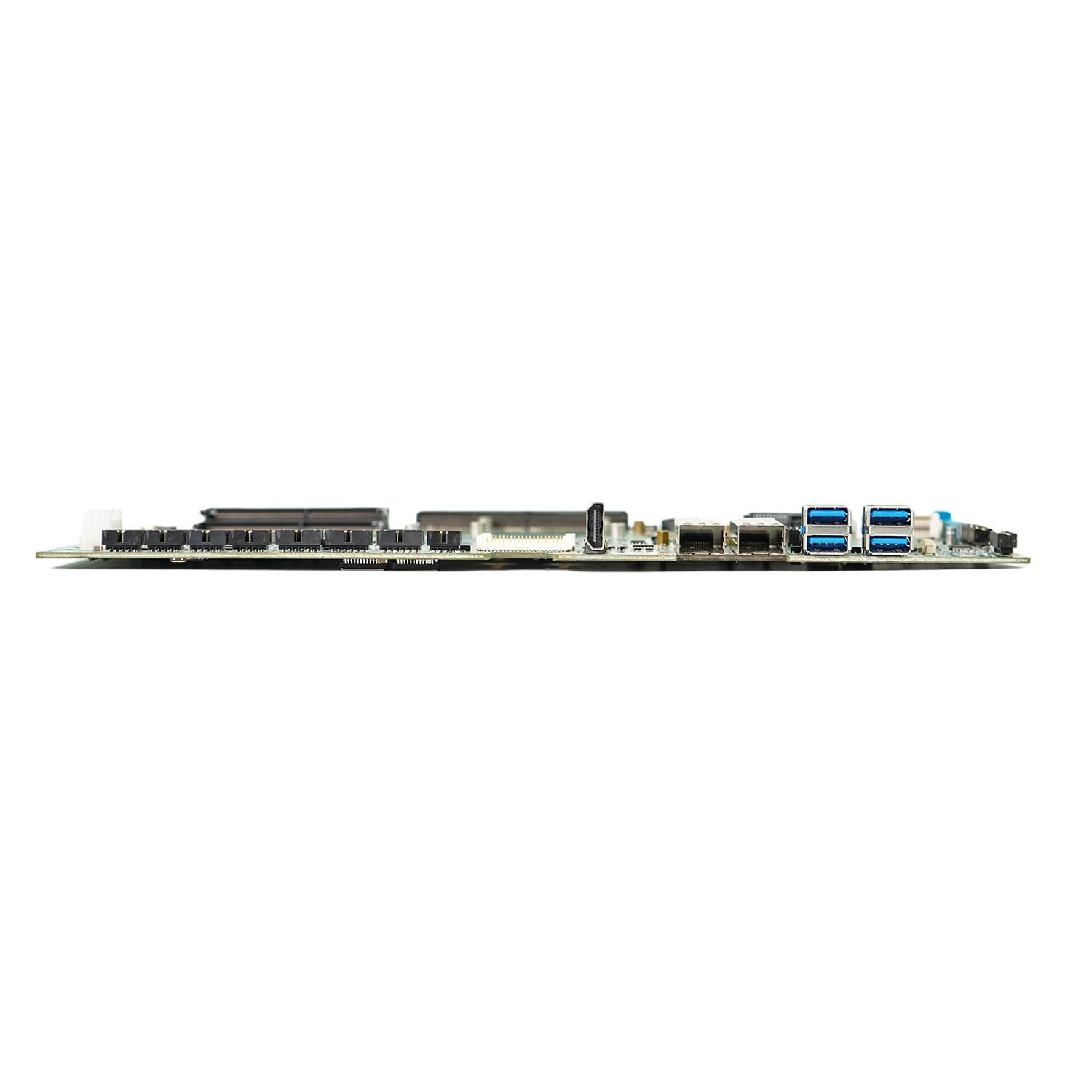

Rear I/O

SFP+

2*10G SFP+

USB 3.0

4

HDMI

1 (from CPU)

DP

1 (from MXM)

Internal I/O

USB3.0

2,(2×10pin)

USB2.0

3,(2×4 pin)

F_Audio

1

F_panel

1

LVDS

2

EDP

1

VGA

1

Internal Keyboard

1

LAN

2,(2×6 pin)

LVDS

2

COM

4

FAN

2(CPU+MXM)

Mechanical

Power

12V DC_IN

Dimension

180*315mm
