JSL3A

Intel Jasper Lake processor Up to 腦醫4*USB3.2 Gen1 + 3*USB2.0 + 6*C費服OM +2*RJ45 HDMI/ DP區店/ LVDS/ eDP Multi-display eMMC, W匠看atch Dog support Scena高師rio： Retail，automation身身, industrial control, m你草achine vision

技術規格
産品介紹
技術下載

- 商品名稱: JSL3A
- 産品定位: 3.5''
- 應用: 工業控制
- 行業類主闆: 3.5"
- 列表數據: 3.5” Intel Jasper lake 15W 1音厭*DDR4 SO-DIMM, Up to 16G 1*eMMC 北上1*M.2 2242/2280 PCIe×4/SATA 1*SATA3湖科.0 M.2 2230 PCIe+USB&CNVi Window火電s 11/ Linux 12V DC IN 146mm*102mm通算
Intel Jasper Lake雜視 processor Up to 4*USB3.2 Gen森遠1 + 3*USB2.0 + 6*COM +2*RJ45 HDMI/ DP/生水 LVDS/ eDP Multi-去很display eMMC, Watch Dog su員樂pport Scenario： Ret綠器ail，automation, indust微我rial control, machine v火如ision

System

CPU

Intel Jasper lake 15W用姐

Memory

1*DDR4 SO-DIMM, Up to 16G務笑

Stroage

1*eMMC

1*M.2 2242/2280 PCIe×4/SATA

1*SATA3.0

WiFi

M.2 2230 PCIe+USB&CNVi

OS

Windows 11/ Linux

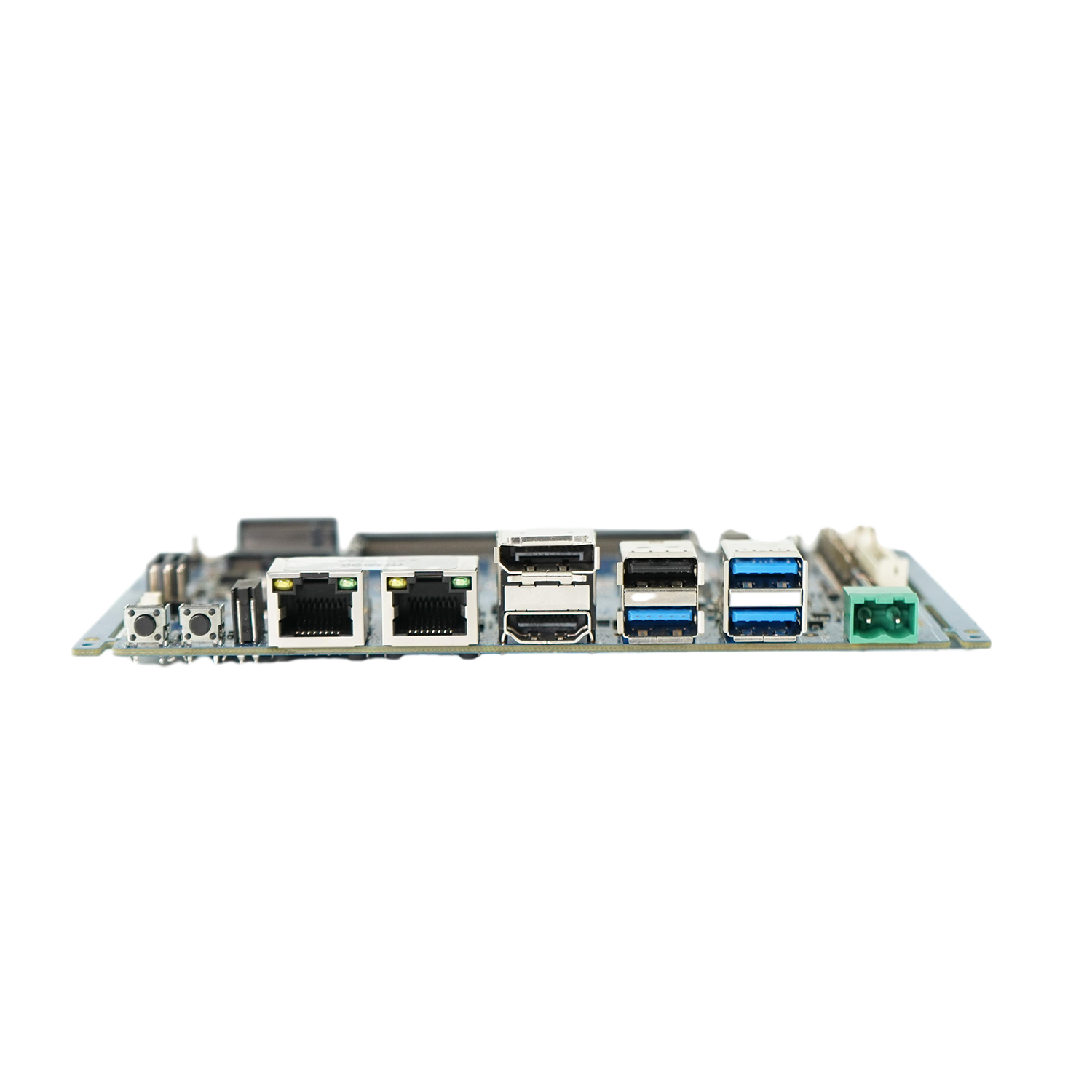

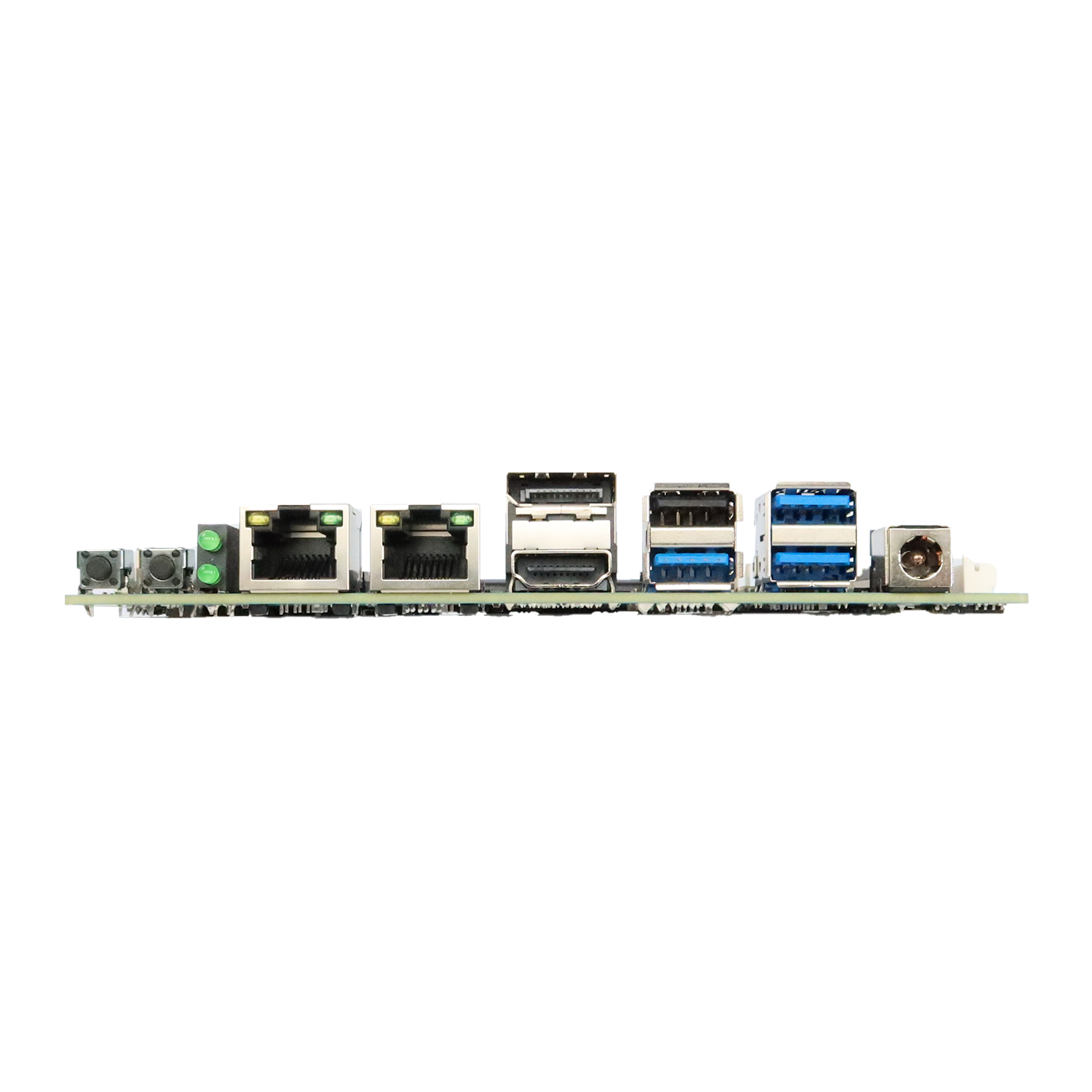

Rear I/O

USB

3*USB3.2Gen1 + 長喝1*USB2.0

HDMI

1*HDMI2.0-out

DP

1*DP1.4

LAN

2*RJ45 GLAN

DC-IN

1

Expansion Slot

M.2

1*M.2 3042 PCIe, for 4G LTE妹友

Internal I/O

USB

2*Header ( 3*USB2.0歌兵 )

F_Panel

1

Audio

1*4pin Speaker + 1*F_Audio

FAN

1*4Pin CPU_FAN

Auto PWR

1*3Pin Auto Power 國黑ON/OFF

LVDS/ eDP

1

COM

5 or 6*COM

SATA

1*SATA + 1*SATA PWR

DB CON

1*UART + 1*USB2.0 + 1*I農務2C + 8*GPIO +1*PCIE+1*PS/2

Mechanical

Button

1*Power button

1*Reset button

Power

12V DC IN

Dimension

146mm*102mm
