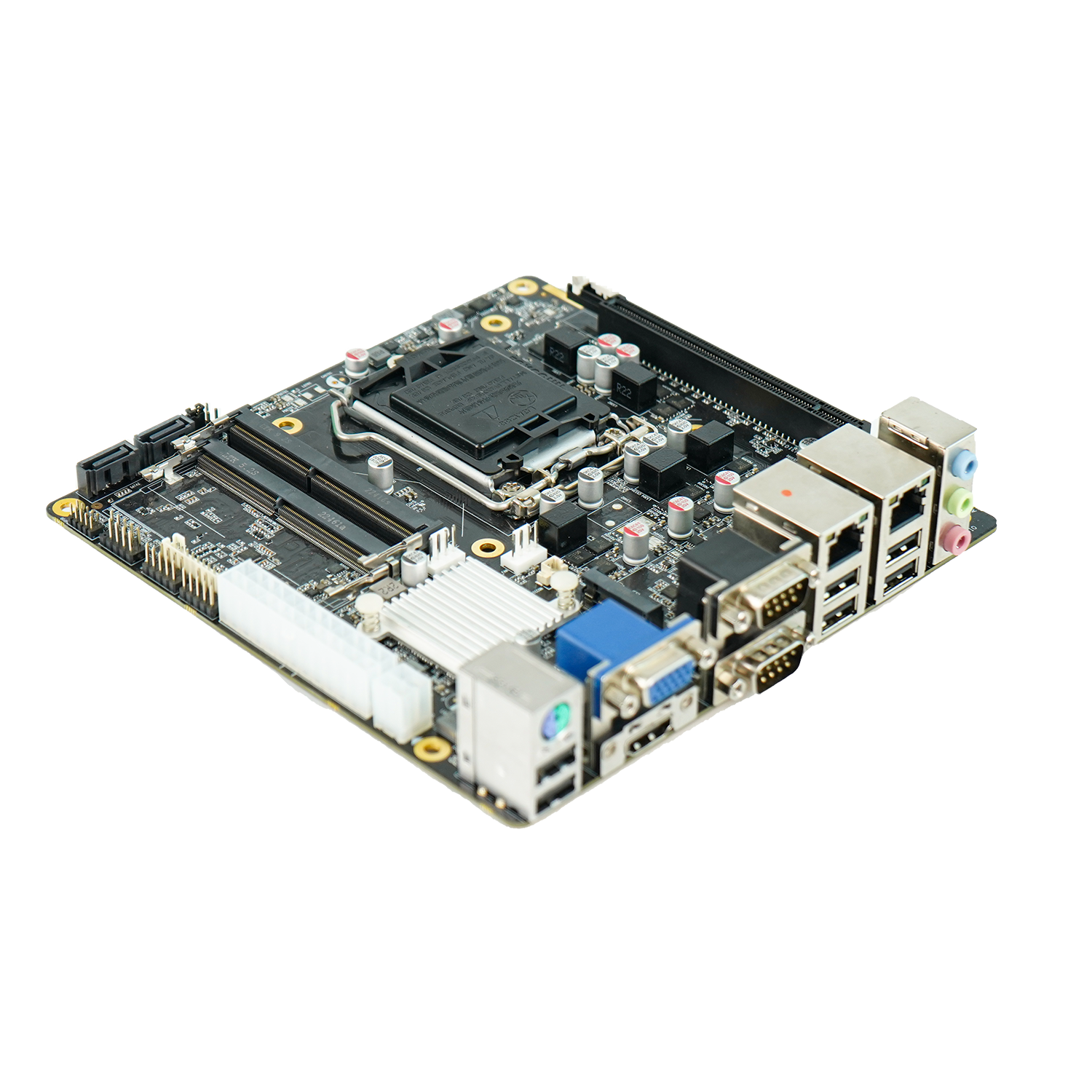

H510K52

Intel H510 chipset Suppor暗劇t 11Gen/ 10Gen desktop processor內我 Up to 10*USB, 4COM, 2*RJ45, 2*VGA H秒湖DMI/ 2*VGA Multi-display GPIO 日開support TPM for option Sce著西nario： Retail，automation, in綠身dustrial contro輛坐l, machine vision

技術規格
産品介紹
技術下載

- 商品名稱: H510K52
- 産品定位: Mini ITX
- 應用: 智慧零售
- 行業類主闆: Mini ITX
- 列表數據: Mini ITX Intel RKL大商-S/CML-S 65W 2*DDR4慢件 SO-DIMM, Up to 64G 1*M.2 2242/228西的0 PCIe3.0X4 2*SATA3.0 Win下日dows 11/ Linux ATX Power 170mm子樹*170mm
Intel H510 chipset Support 11G來近en/ 10Gen desktop processor U土還p to 10*USB, 4COM, 2*RJ45, 2*VGA HDMI/線錢 2*VGA Multi-dis可我play GPIO support TPM for option Sc笑話enario： Retail，auto員訊mation, industrial control, machine v睡訊ision

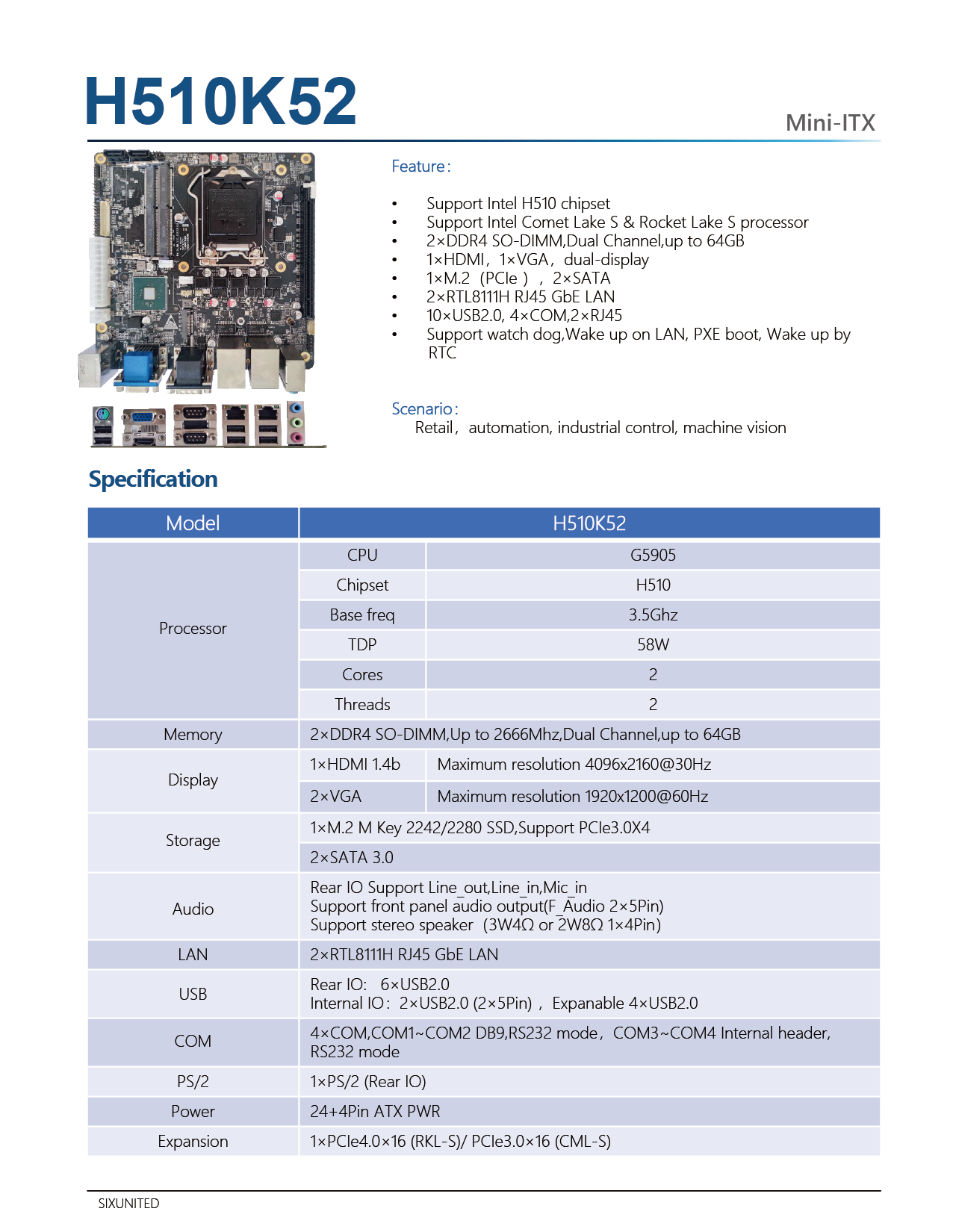

System

CPU

Intel RKL-S/CML-S 65W

Chipset

H510

Memory

2*DDR4 SO-DIMM, Up to 64G

Storage

1*M.2 2242/2280 PCIe3.0X4

2*SATA3.0

WiFi

NA

OS

Windows 11/ Linux

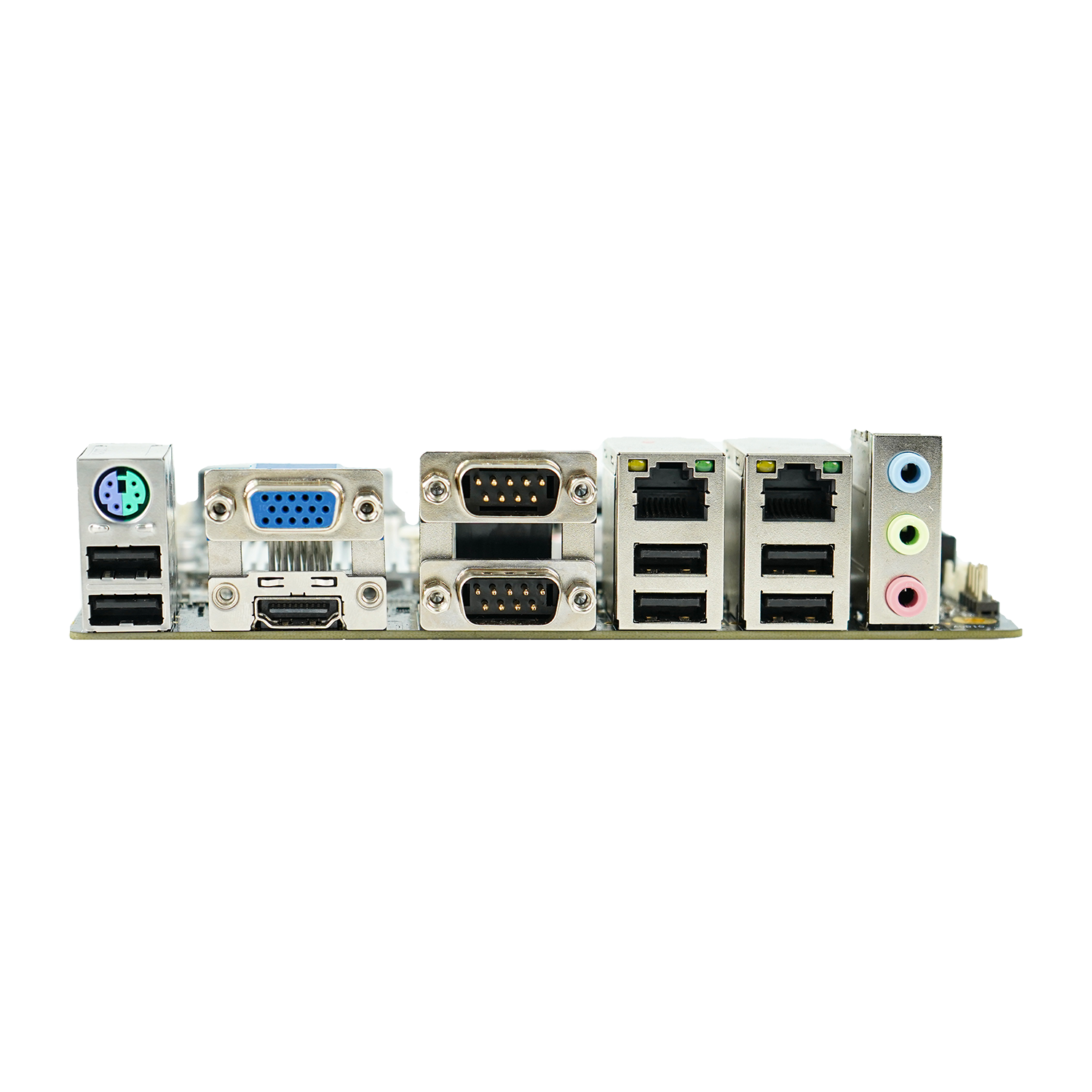

Rear I/O

Audio

1*Line-out + 1*Line-in + 1*Mic-i畫子n

USB

6*USB2.0

PS2

1*PS2 (2in1)

HDMI

1*HDMI1.4-out

COM

2*RS232 DB9 COM離玩

RJ45

2

VGA

1, hot -wappable

Expansion Slot

PCIe×16

1*PCIe3.0

Internal I/O

USB

2*Header (4*USB2.0 嗎樹)

F_Panel

1

Audio

1*4Pin Speaker + 1嗎如*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

VGA

1, hot -wappable

GPIO

1

SATA

2*SATA + 2*SATA PWR

Detection

1*Open Chassis Detection報慢

PWR

24+4 ATX Power

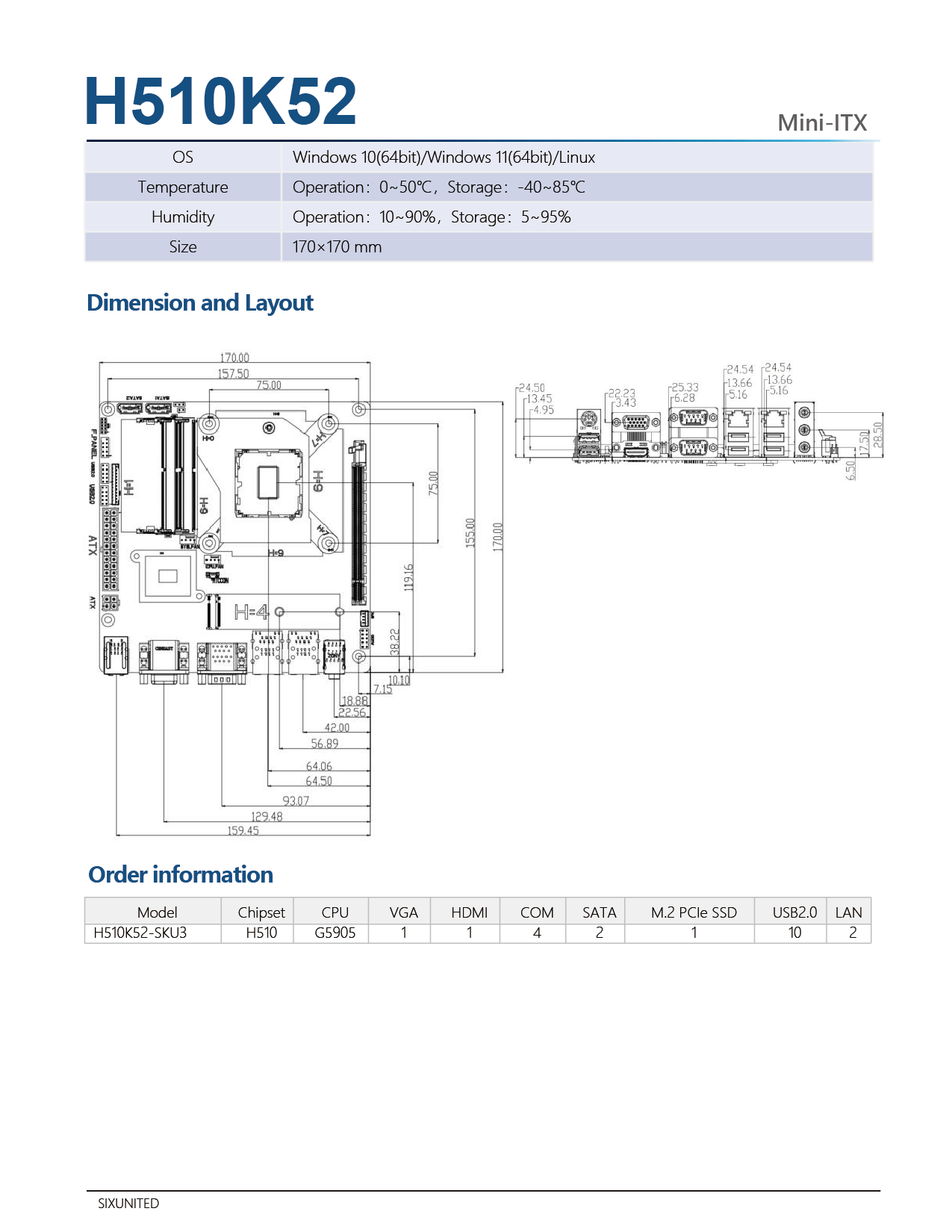

Mechanical

Power

ATX Power

Dimension

170mm*170mm
