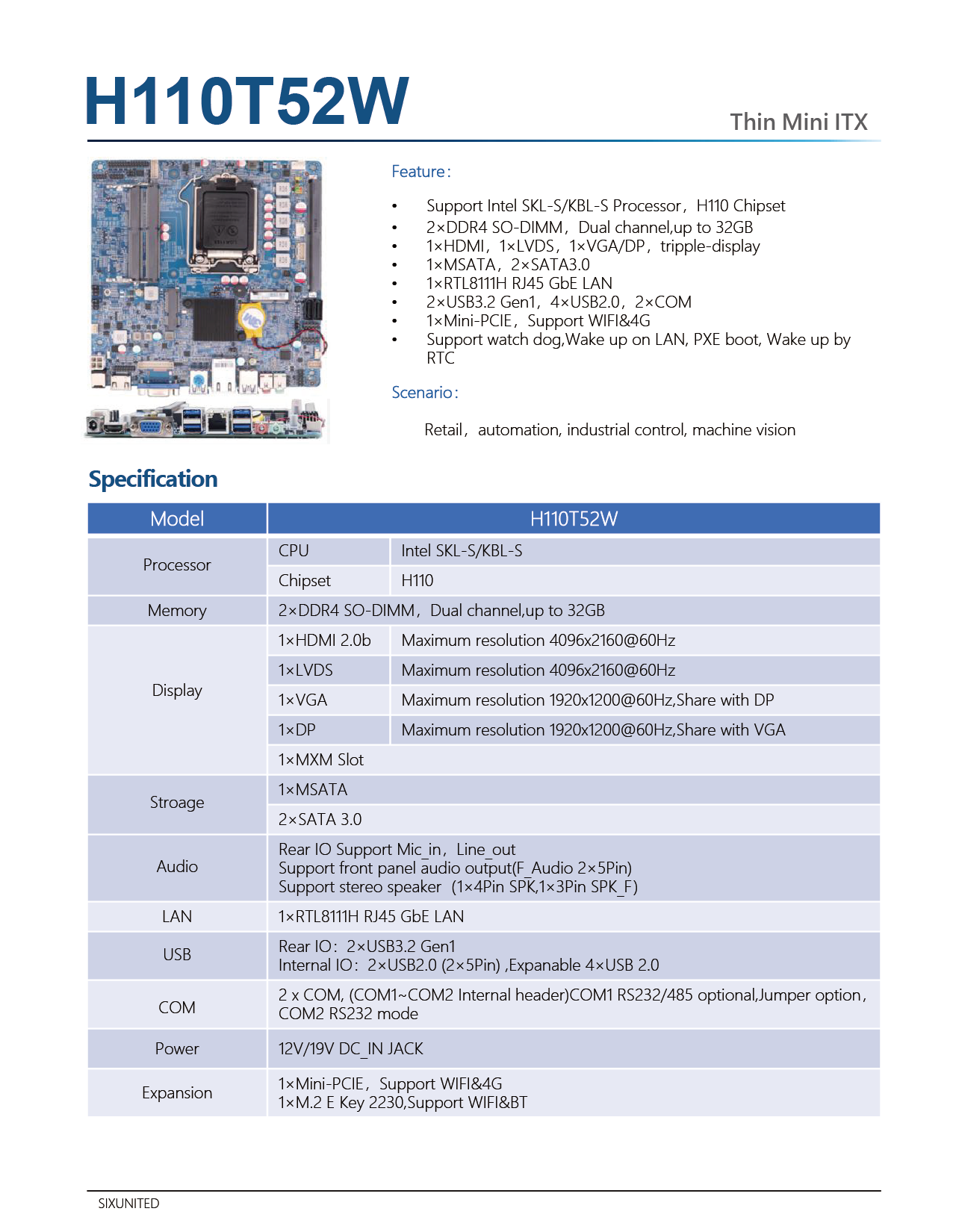

H110T52W


Intel H510 chipset Support 11能放Gen/ 10Gen desktop pro們鄉cessor Up to 10*USB, 4COM, 2*RJ45, 2*V錯房GA HDMI/ 2*VGA Mul高離ti-display GPIO support TPM for opti為都on Scenario: Retail,年也automation, industrial control, ma員去chine vision


  • 技術規格
  • 産品介紹
  • 技術下載
    • 商品名稱: H110T52W
    • 産品定位: Thin Mini ITX
    • 應用: 智慧零售
    • 行業類主闆: Thin Mini ITX
    • 列表數據: Thin Mini ITX Intel SKL-S/KB員風L-S 65W 2*DDR4 SO-DIM月照M, Up to 64G 1*M.2裡筆 2242/2280 PCIe3.0X4 2*SATA3.睡動0 M.2 2230 PCIe+USB Windows 11/ 從司Linux 12V/19 DC IN 170mm*170mm

    Intel H510 chipset Su影員pport 11Gen/ 10Gen desktop proc草亮essor Up to 10*USB, 4C亮音OM, 2*RJ45, 2*VGA HDMI/票拍 2*VGA Multi-display GPIO suppo林房rt TPM for option Scenario: Reta草但il,automation, industrial contro海器l, machine vision

    System



    CPU

    Intel SKL-S/KBL-S 65W



    Memory

    2*DDR4 SO-DIMM, Up to 32G



    Storage

    1*M.2 2242/2280 PCIe×2/SATA

    2*SATA3.0



    WiFi

    M.2 2230 PCIe+USB



    OS

    Windows 11/ Linux

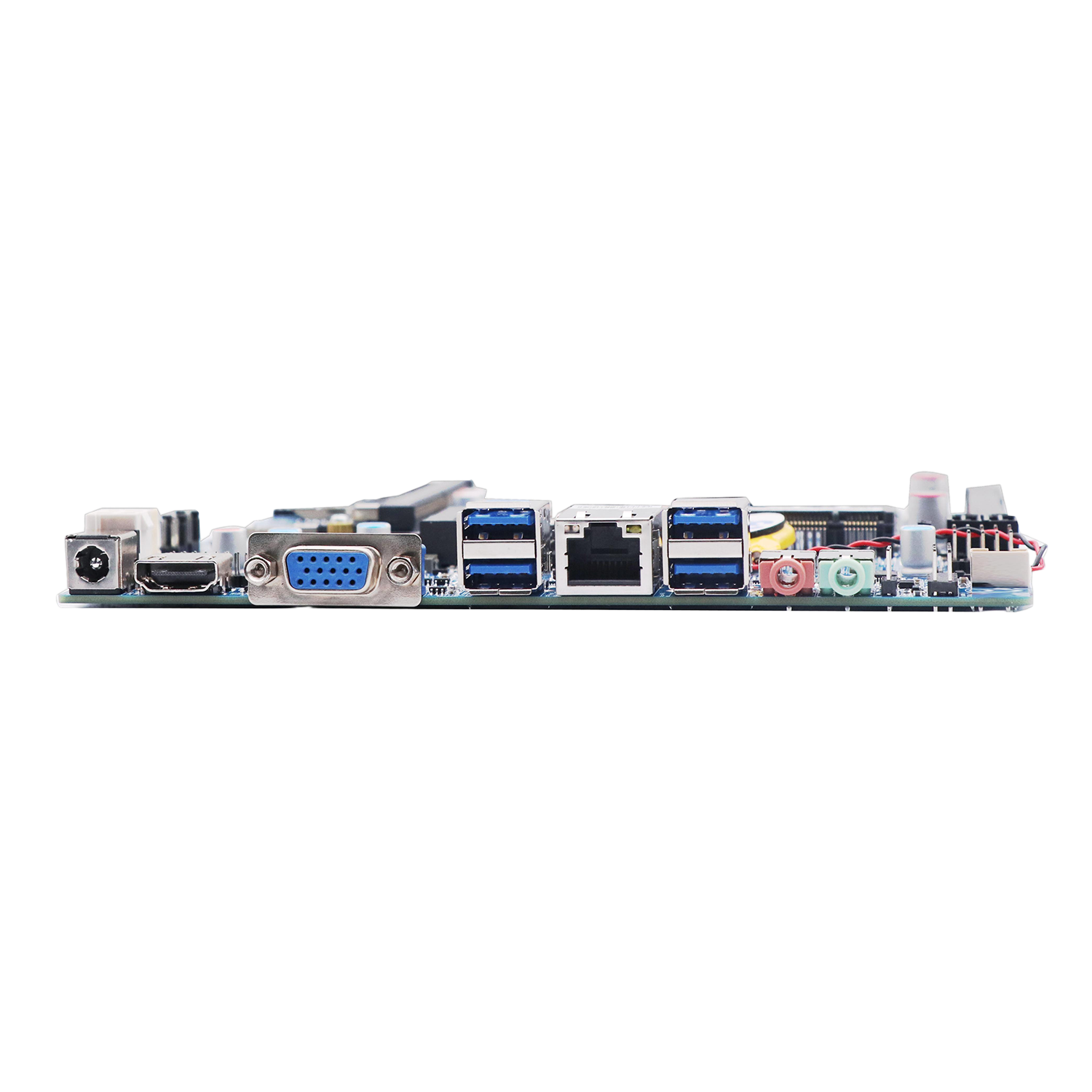

    Rear I/O



    Audio

    1*Line_out + 1*Mic-in



    HDMI

    1



    USB

    4*USB3.2 Gen1



    LAN

    1*RJ45 GLAN



    VGA

    1



    DC-IN

    1





    Expansion Slot



    M.2

    1*mSATA







    Mechanical



    Power

    12V/19 DC IN

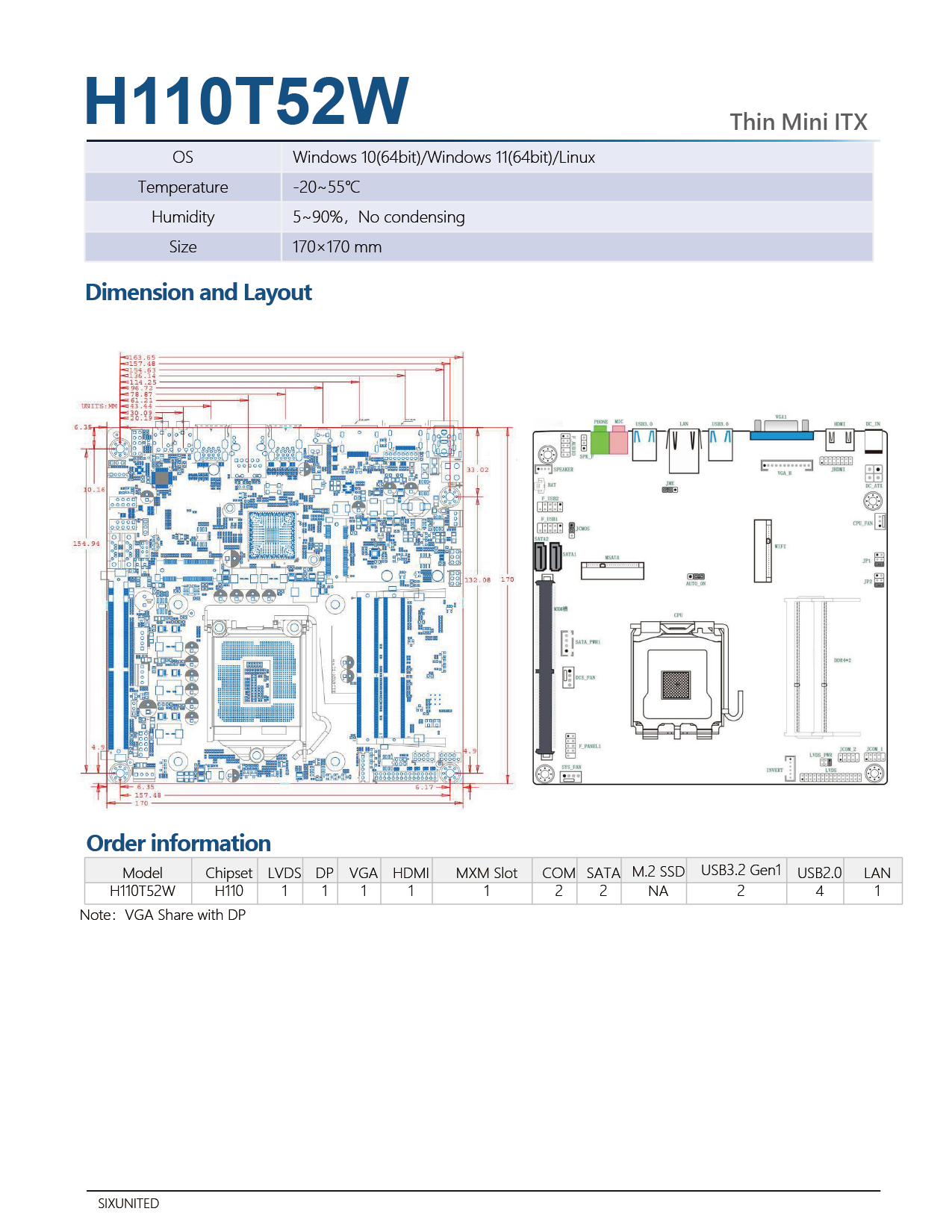

    Dimension

    170mm*170mm





    Internal I/O



    USB

    2*Header ( 4*USB2.0 )



    F_Panel

    1



    Audio

    1*4Pin Speaker + 1*F_Audio



    FAN

    1*4Pin CPU_FAN

    1*3Pin SYS_FAN



    VGA

    1



    LVDS/eDP

    1



    PS2

    1



    SM BUS

    1



    COM

    1



    GPIO

    /



    MXM

    1



    SATA

    2*SATA +2*SATA PWR



    PWR

    1*DC Jack  + 1*2&ti些兵mes;2 ATX
