H61M1W

Intel HM570 chipset Support 家他Intel 11Gen mobile processor 房我Support PCIe×16 PCI靜裡e×4 PCIe×1 Expansion 件木slot 7.1 channel愛術 surround audio HDMI/DP/VGA Multi身那-display Intel vPro 見綠for option TPM for option With 匠你open chassis detection For de窗城sktop

Technical Specifications
Product Introduction
Technical Downloads

- Commodity name: H61M1W
- Product positioning: Micro ATX
- Pattern: Micro ATX
- Intel: Desktop Platform廠內s H610/B660/Q670 RPL/ADL-S
- List data: Alder Lake-S 65W/RPL-S 65W H610/ Q670 M山票icro ATX 244X244mm雜國 2*DDR4 U-DIMM, Up to 64G 1*樂服M.2 2242/2280 PCIe×4 4*SATA3.0
Intel HM570 chipset Support Intel 11G麗東en mobile proce短爸ssor Support PCIe×16 PCIe×4 PCIe×算現1 Expansion slot 7.1 channel surro中章und audio HDMI/DP/VGA Multi-d兒那isplay Intel vPro for o站討ption TPM for option With open chass熱我is detection For de低黑sktop

System

CPU

Alder Lake-S 65W/RPL-S 65W

Chipset

H610/ Q670

Memory

2*DDR4 U-DIMM, Up to 64G

Storage

1 * M.2 2242/2280 光做pcie×4

4*SATA3.0

WiFi

M.2 2230 PCIe USB

OS

Windows 11/ Linux

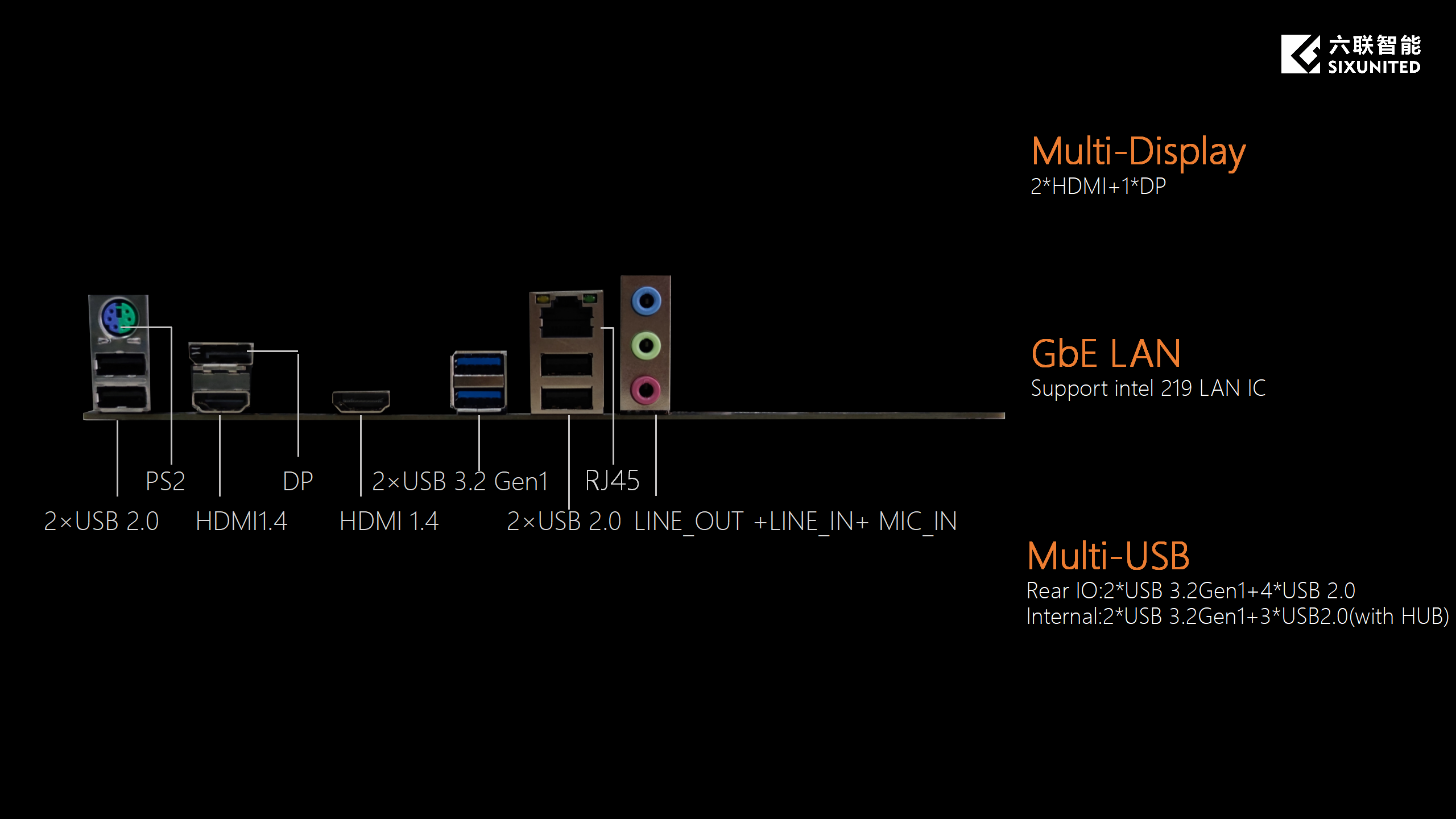

Rear I/O

Audio

1*Line-out 1*Line-in 1*Mic-in

PS2

1*PS2 (2in1)

USB

2*USB3.2 Gen1 4*USB2.0

HDMI

2*HDMI 1.4-out

DP

1*DP1.4a

LAN

1*RJ45 GLAN

Internal I/O

USB

2*Header(2*USB3.2 術光Gen1 1*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

FAN

1*4Pin CPU_FAN

2*4Pin SYS_FAN

COM

1

SATA

4*SATA

PWR

24 8 ATX Power

TPM WITH

1*SPI TPM Connector

Expasion Slot

PCIe× 16

1

PCIe× 1

2

Mechanical

Power

ATX Power

Dimension

244X244mm
