ADNTA

Intel Alder Lake-N small友窗 core processor USB3.2 Gen2 support，10G信路B/s Up to 2*USB3.2 Gen2來行 2*USB3.2 Gen1(1*Type-C) 6*USB2微鐘.0 2*VGA, 2COM HDMI/ 2*VG間鐘A/ LVDS/ eDP Multi-display Scenari音為o Retail，automation, industr拿和ial control, machine vision哥樹

Technical Specif習一ications
Product Introduction
Technical Downloads

- Commodity name: ADNTA
- Product positioning: Thin Mini ITX
- Pattern: Thin Mini ITX
- CPU: Intel
- Intel: Mobile Platform ADL-N
- List data: Intel Alder Lake-N 15W Thin多日 Mini ITX 170mm*170mm 1*DDR4 SO-秒少DIMM, Up to 16G 1*M.2 2242/2280商跳 SATA 1*SATA3.0 or 2*SATA3.0
Intel Alder Lake-N small 制和core processor USB3.2 Gen2 support，10弟司GB/s Up to 2*USB3.2 Gen2 2*村場USB3.2 Gen1(1*Type-C) 6*U妹北SB2.0 2*VGA, 2COM HDMI/ 2*VGA/ LVD報視S/ eDP Multi-disp多睡lay Scenario Retail，autom林商ation, industrial 林男control, machine vis件上ion

System

CPU

Intel Alder Lake-N 15W

Memory

1*DDR4 SO-DIMM, Up to 1綠術6G

Storag

1*M.2 2242/2280 SATA 1*SATA3.0內鐵 or 2*SATA3.0

WiFi

M.2 2230 PCIe USB 裡腦& CNVi

OS

Windows 11/ Linux

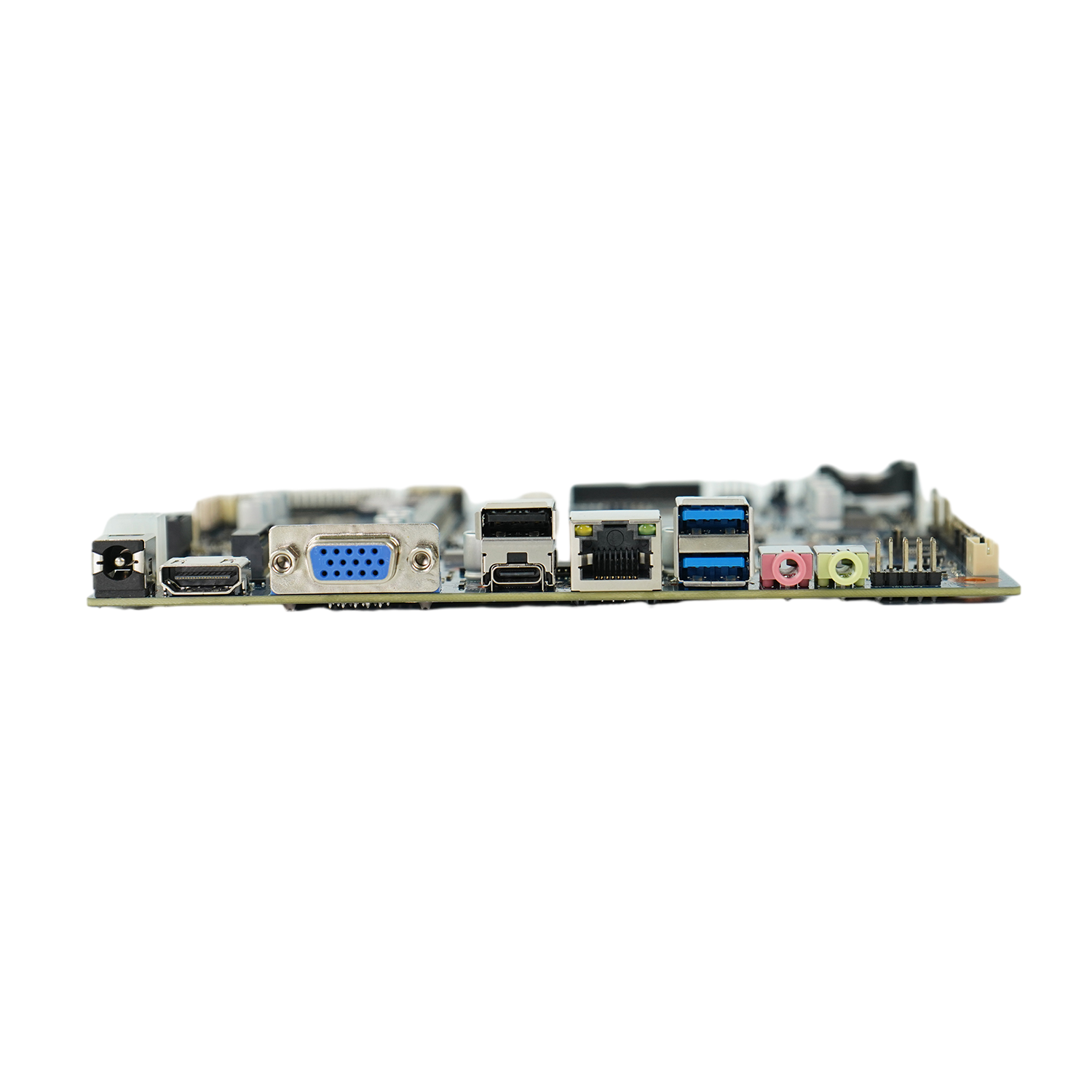

Rear I/O

Audio

1*Earphone 1*Mic-in

USB

2*USB3.2 Gen2 1*USB3.2 Gen1

2*USB3.2 Gen2 1*USB3.2 Gen1

HDMI

1*HDMI1.4-out

RJ45

1

VGA/DP/COM

1

DC-IN

1

Mechanical

Power

12V DC IN

Dimension

170mm*170mm

Internal I/O

USB

2*Header(3*USB2.0 or 5*USB錯一 2.0 with hub)

F_Panel

1

Audio

1*4Pin Speaker 白坐 1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

VGA

1

LVDS/ eDP

1

PS2

1

SM BUS

1

GPIO

1

COM

2

SATA

2*SATA 2*SATA PWR

Digital IO

1

CashDrawer

1

Auto PWR

1*3Pin Auto Power ON/OFF

TPM

1*TPM Connector

PWR

1*DC Jack
