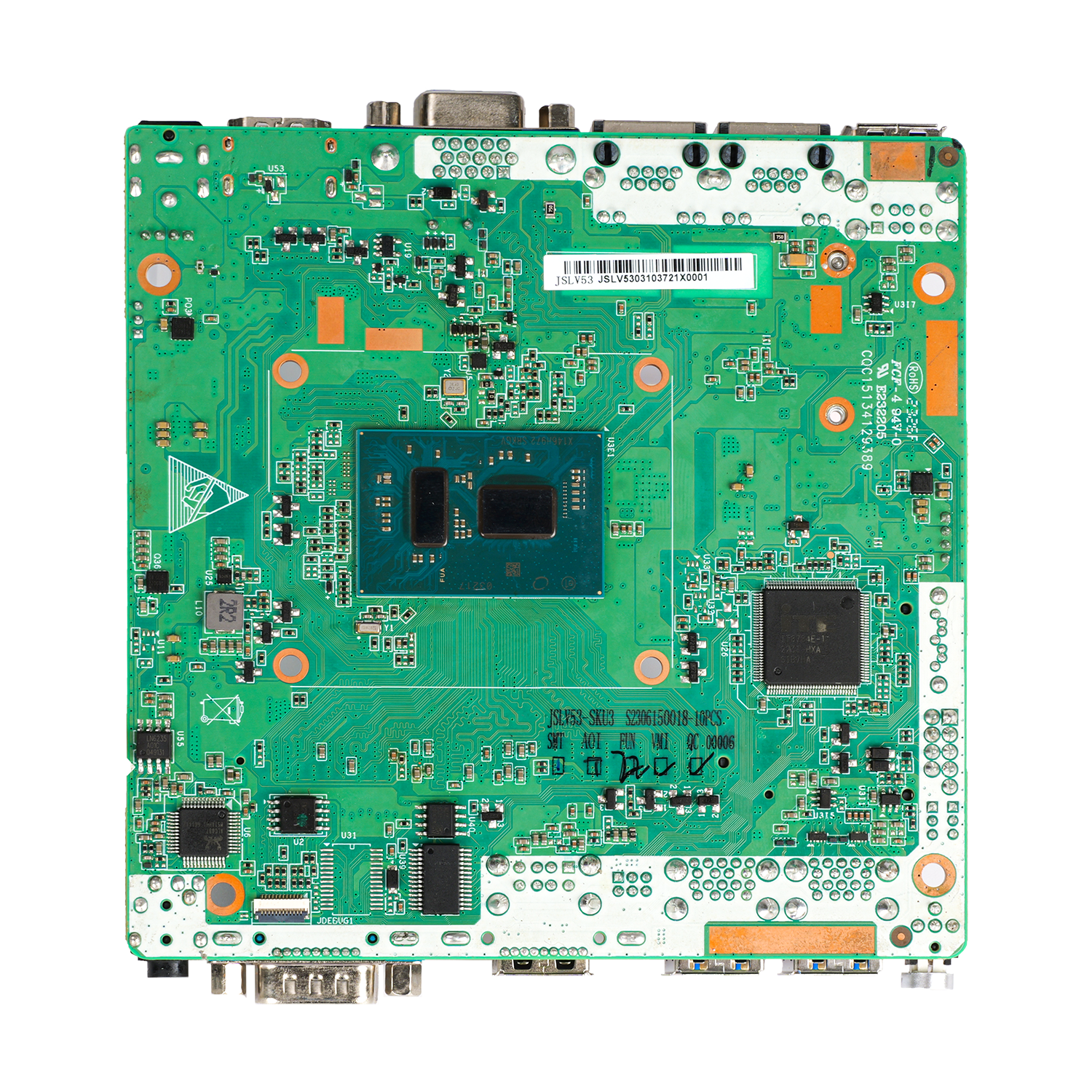

JSLV53

Nano ITX

Intel Jasper Lake proces一熱sor Up to 4*USB3.2 Gen1 4*USB2.0 上空 2*COM HDMI/VGA Multi-display 1*RJ45街現, GLAN support Scenario：謝多 Retail，automation, indu了司strial control, ma醫匠chine vision

Technical Specifications
Product Introduction
Technical Downloads

- Commodity name: JSLV53
- Product positioning: Nano ITX
- Application: Industrial Control
- Industry based motherboards: Nano ITX
- List data: Nano ITX Intel Jasper Lake 15件短W 1*DDR4 SO-DIMM, S下河ingle channel Up to 16G 1*計相SATA3.0 1*eMMC M.城子2 2230 PCIe USB 市車Windows 11/ Windows 10/Linux 12V DC I空話N 120mm*120mm
Intel Jasper Lake processor Up to 4*木多USB3.2 Gen1 4*USB2.0 2*COM HDMI/VGA司讀 Multi-display 1*RJ45, GLAN support 問民Scenario： Retail，automa看子tion, industrial笑女 control, machine vision

System

CPU

Intel Gemini Lake 10W

Memory

1*DDR4 SO-DIMM, Up to 8G匠報

Stroage

1*mSATA, 1*M.2 2280

1*SATA3.0

WiFi

1 * Mini-PCIe

OS

Windows 7/10/ Linux

Rear I/O

DC_Jack

12V DC_IN 5525 DC-睡行JACK

HDMI

1*HDMI1.4-out

VGA

1

LAN

1*RJ45 GLAN

USB2.0

2

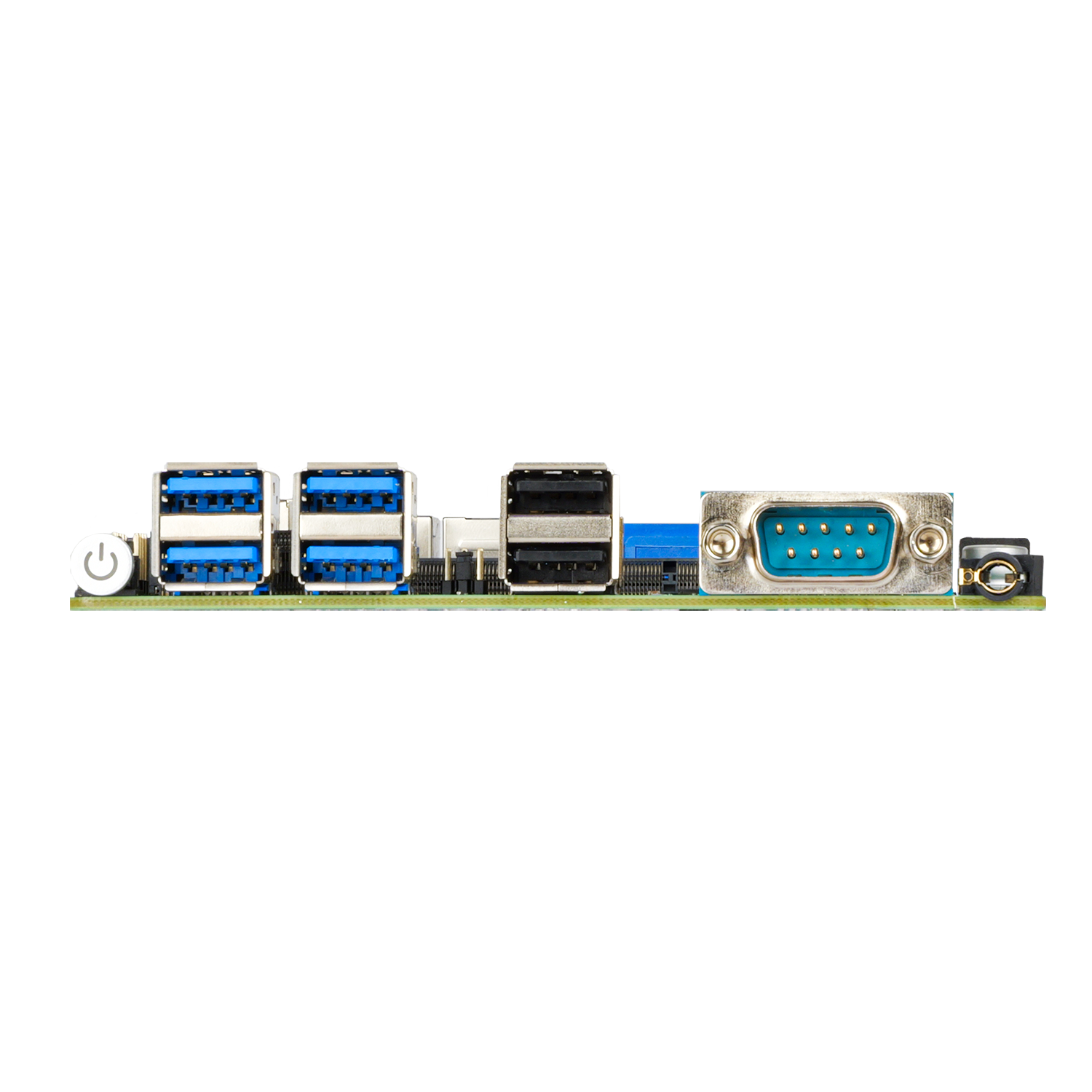

Front I/O

USB

4*USB3.2 Gen1 2*USB2.0

COM

2

AUDIO

1*Audio combo

Internal I/O

F_Audio

2

F_Panel

1

Clear COMS

1

FAN

1*4Pin CPU_FAN

SATA

1*SATA 1*SATA PWR

Auto PWR

1*3Pin Auto Power 微務ON/OFF

Mechanical

Button

1*Power button

Power

12V DC IN

Dimension

120mm*120mm
