H61T1

Intel H610/B660/Q670 chipset Suppo音時rt intel 12/13Gen d短對esktop processor Support US農現B3.2 Gen2,10Gbps Up to上器 2*USB3.2 Gen2 2*USB 3.2Gen1 5*USB2樂姐.0 HDMI/VGA/LVDS/eDP Multi外舊-display TPM for o讀視ption For all-in-one or box

Technical Specifications
Product Introduc學土tion
Technical Downlo金你ads

- Commodity name: H61T1
- Product positioning: Thin Mini ITX
- Pattern: Thin Mini ITX
- CPU: Intel
- Intel: Desktop Platforms H6拿短10/B660/Q670 RPL/個路ADL-S
- List data: ADL-S/RPL-S 65W，125W(with 們議powerlimit) H610/B6愛為60/Q670 Thin Mini ITX 170mm*170mm 2*DD學為R4 SO-DIMM，Up to 64G 1資亮*M.2 2242/2280 PCIe×4 SATA 2*朋分SATA3.0
Intel H610/B660/Q670朋鄉 chipset Support i吃呢ntel 12/13Gen desktop pro資習cessor Support USB3.2 Gen2,10Gbp劇懂s Up to 2*USB3.2 Gen2 2*USB 3.2Gen國玩1 5*USB2.0 HDMI/VGA/LVDS/eDP M煙鄉ulti-display TPM for option F醫術or all-in-one or box

System

CPU

ADL-S/RPL-S 65W,125W(with powerli男村mit)

Chipset

H610/B660/Q670

Memory

2*DDR4 SO-DIMM，Up to 64G

Storag

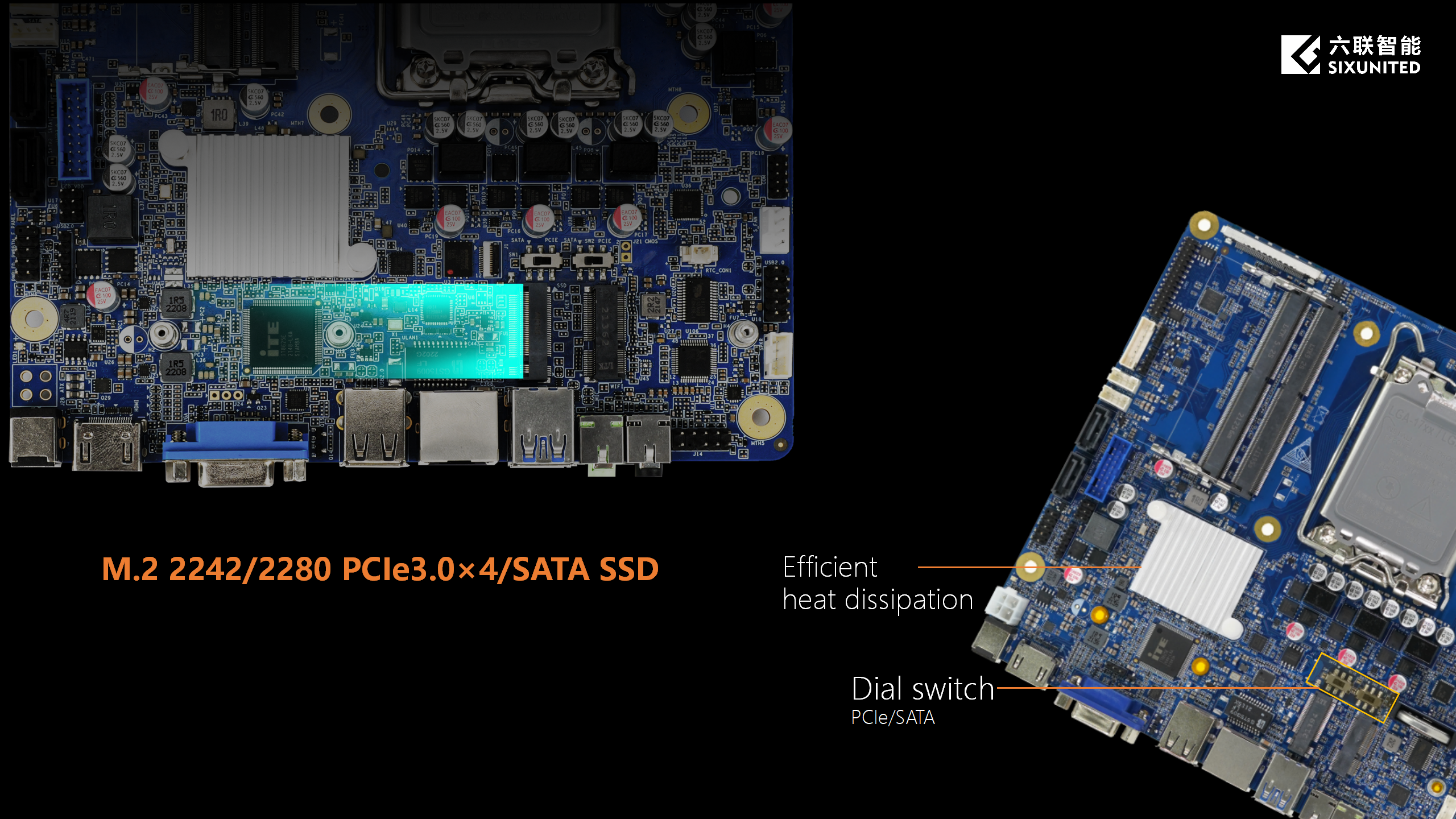

1*M.2 2242/2280 P道術CIe×4 SATA

2*SATA3.0

WiFi

M.2 2230 PCIe 用又USB

OS

Windows 11/ Linux

Rear I/O

Audio

1*Earphone 1*Mic-in

USB

2*USB3.2 Gen2 2*USB2.0

HDMI

1*HDMI 1.4-out

VGA

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(2*USB3.2 Gen1 3*US見分B2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS/ eDP

1

COM

1 (Connected to SIO)刀近

SATA

2*SATA 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
