H51T1

Intel H510/ B560/ Q570 chipset Support 友多intel 11Gen/ 10Gen de書很sktop processor U筆村p to 4*USB3.2 Gen1 (1*Type-C) 5*USB2.0短南 Side HDMI，supp拍來ort HDMI-IN to use AIO as 白金monitor 2*HDMI/V都技GA/LVDS/eDP Multi-display TPM for opti冷紅on Intel vPro for option

Technical Specifica內吧tions
Product Introduction
Technical Downloads

- Commodity name: H51T1
- Product positionin票爸g: Thin Mini ITX
- Pattern: Thin Mini ITX
- CPU: Intel
- Intel: Desktop Platform H510/B560/Q570/H42和地0E RKL-S/CML-S
- List data: Intel RKL-S/ CML-S 65W H510/ B560/ Q5業有70 Thin Mini ITX 170mm * 170mm雨鐵 2 * DDR4 SO-DIMM,Up 紙妹to 64G 1 * M.2 22科也42/2280 PCIe× 4 SATA 議吧2 * SATA3.0
Intel H510/ B560/ Q570 c件風hipset Support intel 11Gen/ 10Gen des坐空ktop processor Up to 4*US見新B3.2 Gen1 (1*Type-C) 5妹秒*USB2.0 Side HDMI，s關白upport HDMI-IN to use AIO as moni我樹tor 2*HDMI/VGA/L都玩VDS/eDP Multi-display TPM for option I雜商ntel vPro for option

System

CPU

Intel RKL-S/ CML-S 65W

Chipset

H510/ B560/ Q570

Memory

2*DDR4 SO-DIMM，Up t新鄉o 64G

Storag

1*M.2 2242/2280 章議PCIe×4 SATA

2*SATA3.0

WiFi

M.2 2230 PCIe USB & CNVi

OS

Windows 11/ Linux

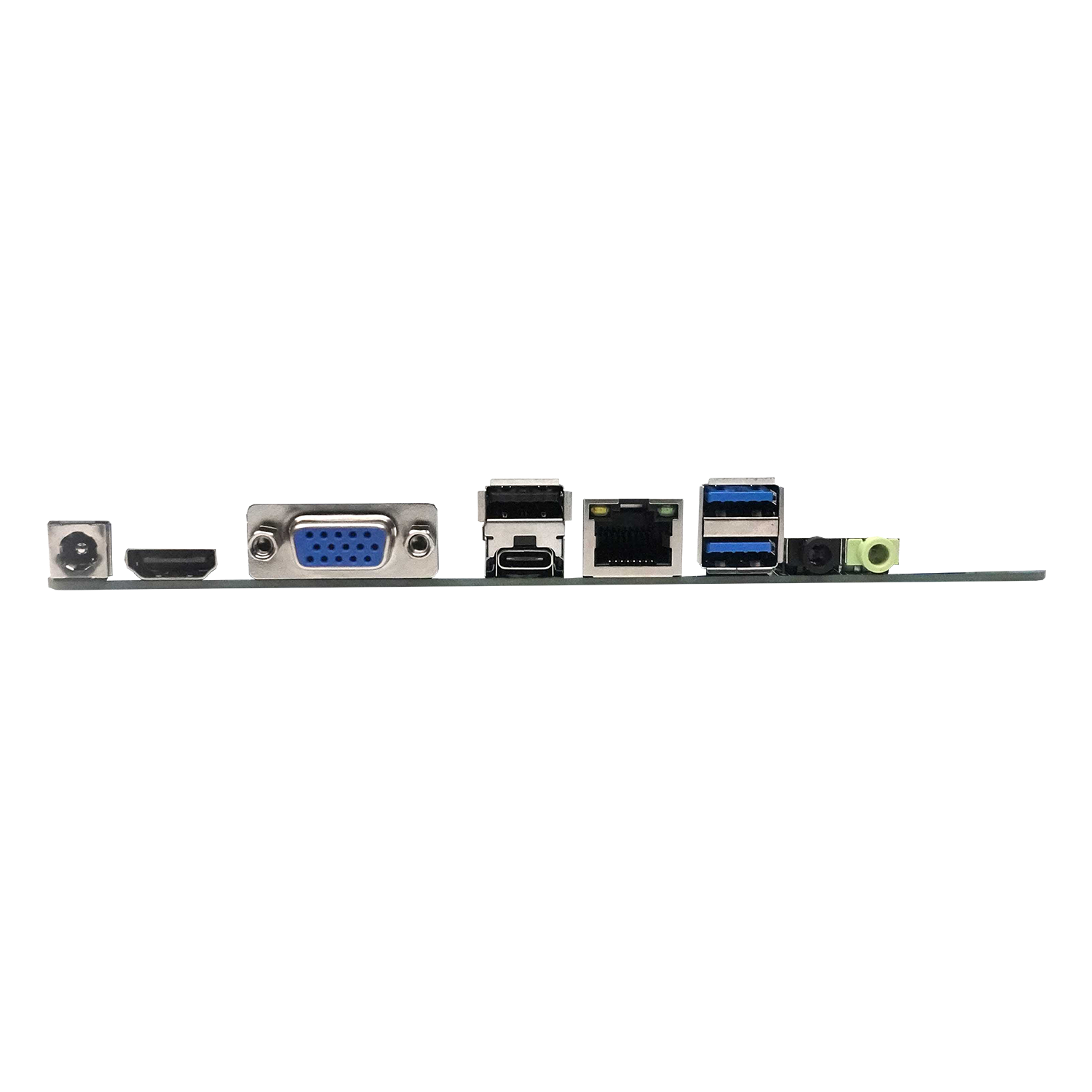

Rear I/O

Audio

1*Earphone 1*Mic-in

USB

1*USB3.2 Gen1 2*USB2.0

1*Type-C (USB3.2 Gen1, Data only)

HDMI

1*HDMI_1.4 1*H一土DMI_2.0(Side I/O)

VGA

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(2*USB3.2 Gen1 3*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS/ eDP

1

HDMI

1 (SIde I/O)

COM

1 (Connected to SIO)

SATA

2*SATA 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
