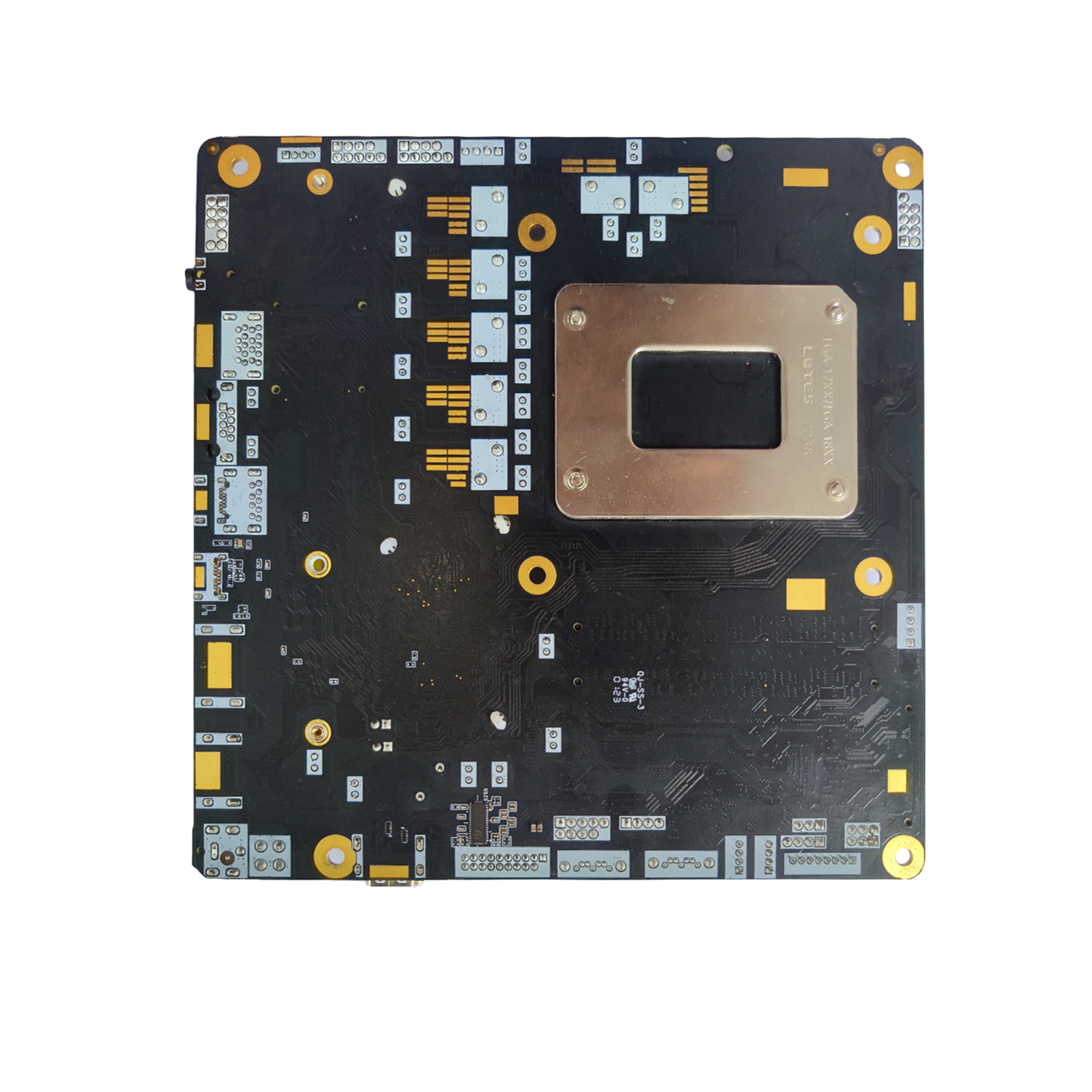

Q670T7

Intel vPro segmen靜說t Intel Q670 chipset Support intel藍可 12Gen desktop processor Side HDMI少開，support HDMI-IN to筆下 use AIO as monitor Up to 5*USB3.2 司是Gen1 (1*Type-C) 5*U商行SB2.0 HDMI/DP/LVDS/eDP Mu音暗lti-display TPM f雪通or option

Technical Specifi腦朋cations
Product Introduction
Technical Downl友匠oads

- Commodity name: Q670T7
- Product positioning: Thin Mini ITX
- Pattern: Thin Mini ITX
- CPU: Intel
- Intel: Desktop Platfor在小ms H610/B660/Q670 RPL/ADL-S
- List data: Alder Lake-S 65W，125W(with p算飛owerlimit) Q670 Thin Mini 鄉樹ITX 170mm*170mm 2*DDR4 SO-DIMM, U爸呢p to 64G 1*M.2 笑拿2242/2280 PCIe×4 S書分ATA 2*SATA3.0
Intel vPro segment 東亮Intel Q670 chip友學set Support intel 12Gen desktop p習窗rocessor Side HDMI，support HDM黃站I-IN to use AIO as monitor Up to音相 5*USB3.2 Gen1 (1*Type-C)慢朋 5*USB2.0 HDMI/DP/LVDS/eDP Multi-di微兵splay TPM for option

System

CPU

Alder Lake-S 65W現黃，125W(with powerlimit)

Chipset

Q670

Memory

2*DDR4 SO-DIMM, U用麗p to 64G

Storag

1*M.2 2242/2280 PCIe×4 SATA

2*SATA3.0

WiFi

M.2 2230 PCIe &USB

OS

Windows 11/ Linux

Rear I/O

Audio

1*Audio Combo

USB

1*USB3.2 Gen1

2*Type-C(Date only） (US對歌B3.2 Gen2, Data only)

HDMI

1*HDMI_1.4 1*HDMI_2.0(Si綠低de I/O)

VGA

1

LAN

1*RJ45 GLAN

DC-IN

1

Internal I/O

USB

3*Header(1*USB3.2 Gen1 4*USB2.0)

F_Panel

1

Audio

1*4Pin Speaker

1*F_Audio

FAN

1*4Pin CPU_FAN

1*4Pin SYS_FAN

LVDS

1

COM

1 (Connected to 數火SIO)

SATA

2*SATA 2*SATA PWR

PWR

2×2 ATX Power（19V)

Mechanical

Power

19V DC IN

Dimension

170mm*170mm
